Trina Solar DE21 - Electrical Installation; Safety Instruction

Trina Solar User Manual | Vertex Series Modules
21
DE09
DE09.05
DE09.08
DE09C.05
DE09C.07
Uplift load ≤ 2000 Pa
Downforce load ≤ 2400 Pa
DE09
DE09.05
DE09.08
DE09C.05
DE09C.07
A = (200 - 250
or 350 - 400) mm
Uplift load ≤ 3000 Pa
Downforce load ≤ 3600 Pa
A = (100 - 200
or 400 -500) mm
Uplift load ≤ 2000 Pa
Downforce load ≤ 2400 Pa
DE18M(II)
DE18M.08(II)
DEG18MC.20(II)
Uplift load ≤ 1000 Pa
Downforce load ≤ 1000 Pa

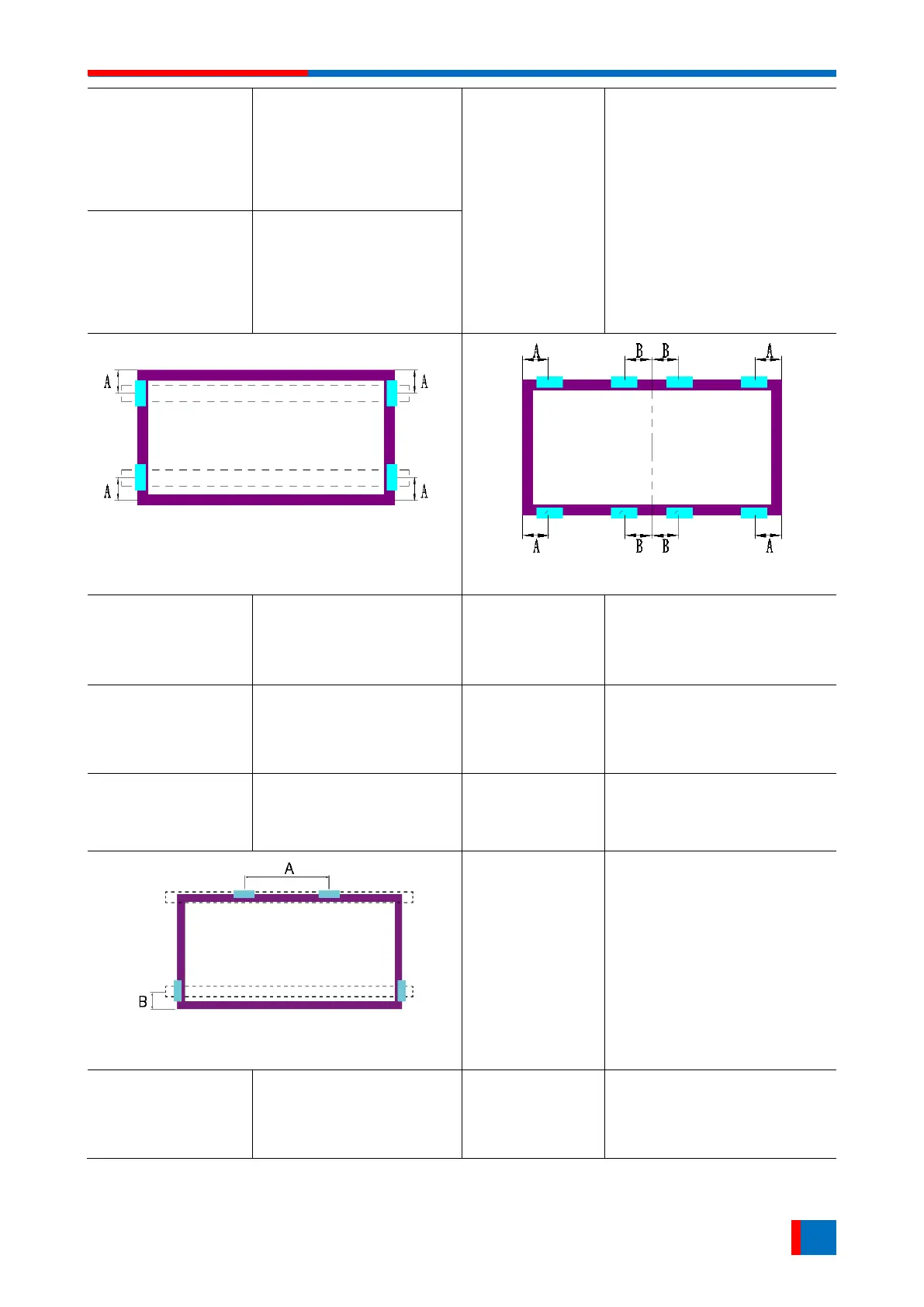

Use 4 clamps on the short side.
Mounting rails run parallel to the long side frame.
Use 8 clamps on the long side.
DE09
DE09.05
DE09.08
DE09C.05
DE09C.07
A = (150 - 250) mm
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
DE09
DE09.05
DE09.08
DE09C.05
DE09C.07
A = (0 - 200) mm
B = (200 - 300) mm
Uplift load ≤ 3600 Pa
Downforce load ≤ 2400 Pa
DE18M(II)
DE18M.08(II)
A = (150 - 250) mm
Uplift load ≤ 1000 Pa
Downforce load ≤ 1600 Pa
DE18M(II)
DE18M.08(II)
DEG18MC.20(I.I)
A = (0 - 200) mm
B = (250 - 350) mm
Uplift load ≤ 1800 Pa
Downforce load ≤ 2400 Pa
DE20
A = (45 - 485) mm
Uplift load ≤ 1000 Pa
Downforce load ≤ 3600 Pa
/
/
Use 2 clamps on the short side and 2 clamps on the long
side.
/
/
DE20
A = (1300- 1450) mm
B = (45 - 485) mm
Uplift load ≤ 1000 Pa
Downforce load ≤ 2400 Pa
/
/
