Trina Solar DE21 - Unpacking Steps

Trina Solar User Manual | Vertex Series Modules
11

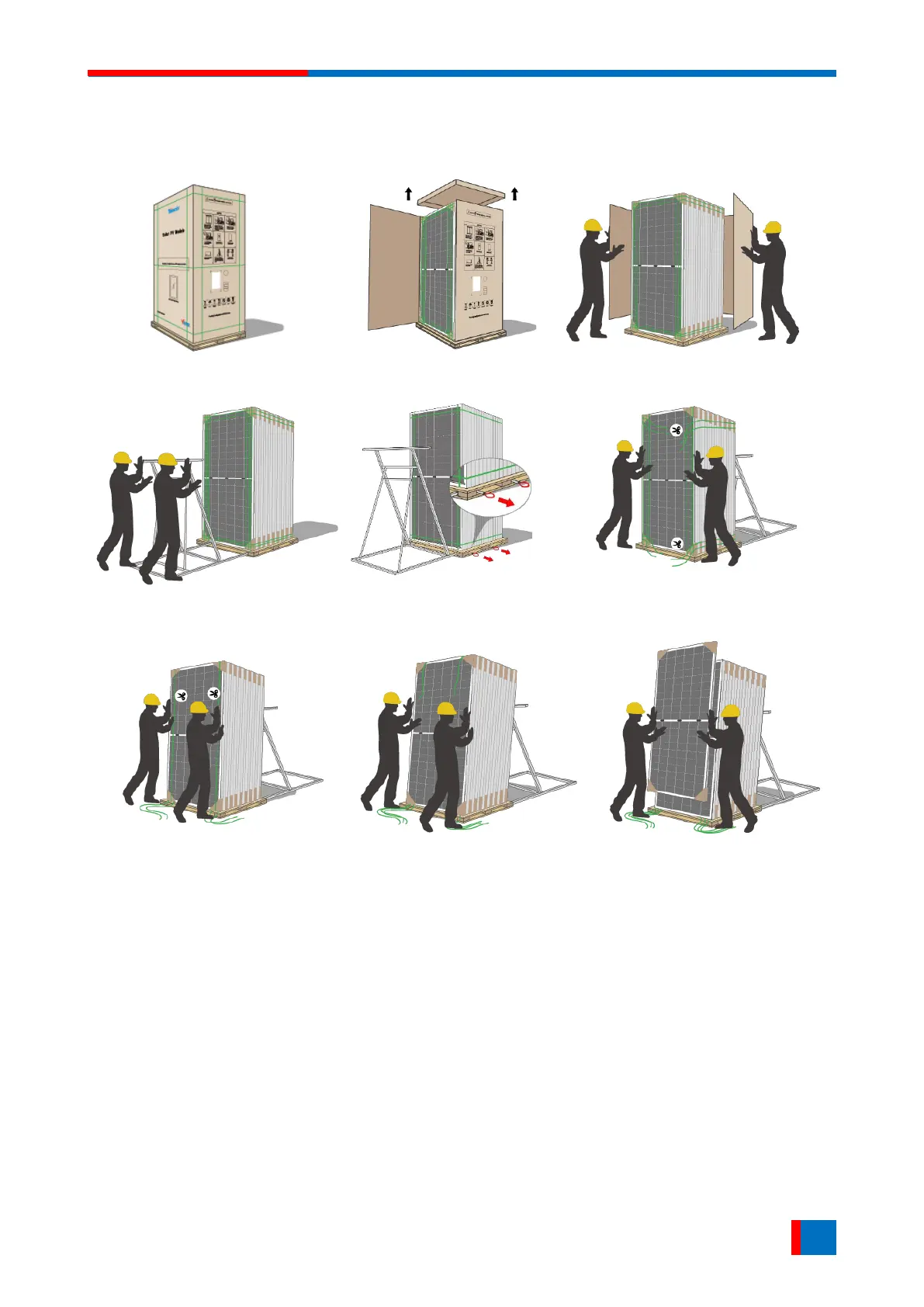

5.2 UNPACKING STEPS
Method A: Unpacking for DE20 / DE21 / DEG21C.20 / NEG21C.20 etc. series modules with vertical
portrait package.
1) Remove the wrapping
film and packing belts.
2) Remove the top cover
and sealing tape.
3) Remove the carton box.
4) Place the stand supporter
from the glass or backsheet
side.
6) Cut off all the horizontal
packing belts.
7) When there are 1-2 vertical
packing belts remaining, push
the module gently to tilt toward
the stand supporter.
8) Cut off the remaining packing
belts so that the modules rest on
the stand supporter.
9) Take out the modules in
order.
5) Pull out the 4 levers from
both sides of the pallet.
