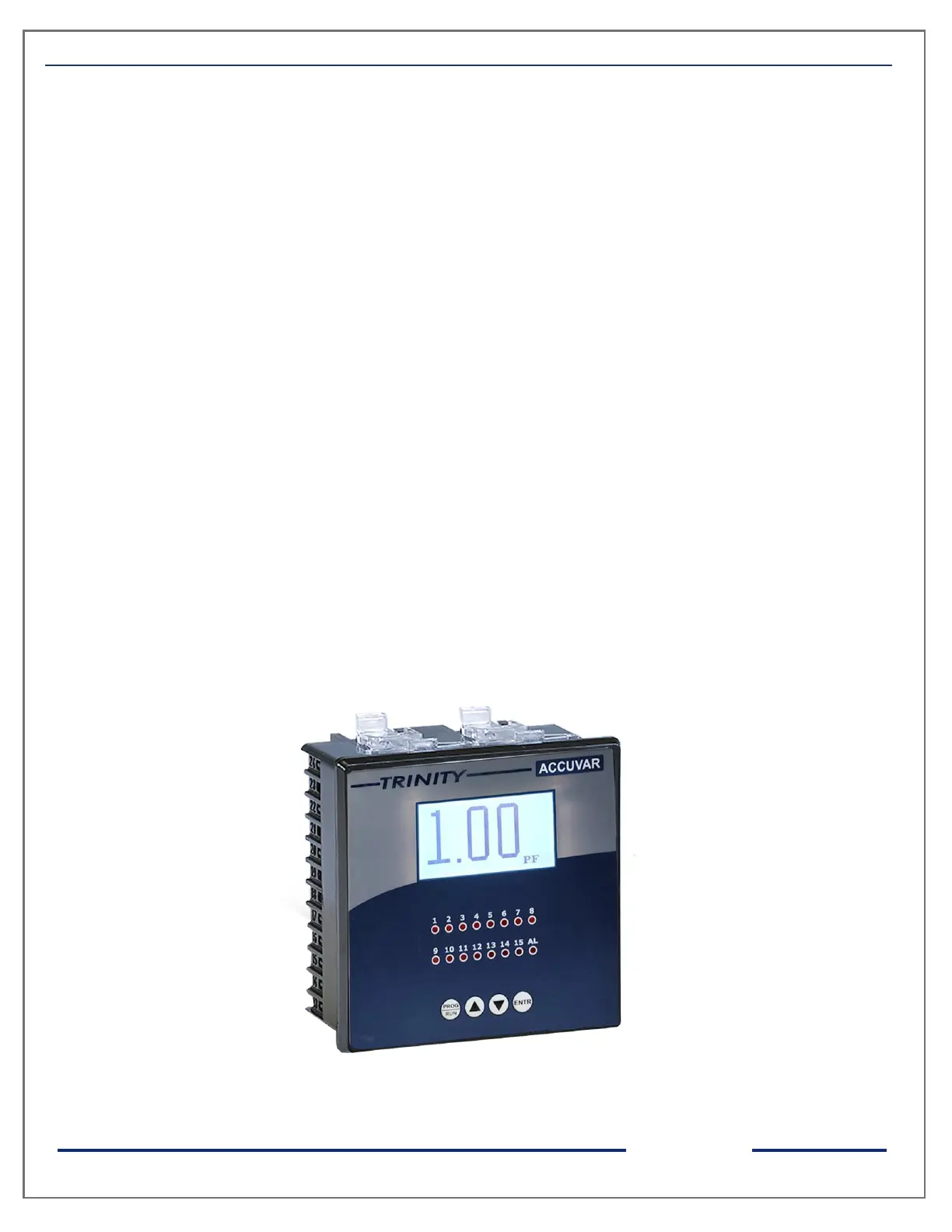

ACCUVAR - Operational Manual
The Main Features Available in this Model
• 3P4W electrical system
• Three powers: KW, KVA and KVAR
• Three phase voltages (Vr, Vy & Vb) and currents(Ir, Iy, Ib)
• Auto phase sequence and polarity detection and correction
• Active energy (KWh) and apparent energy (KVAh)
• Capacitor CT sensing enable/disable selection
• CT ratio for both load current and capacitor current selectable
• PT ratio is site programmable
• Capacitor current (I cap)
• Phase-Wise PF, System PF and Average integrated PF
• Autosense/Manual types of KVAr control and the capacitor bank size of every
stage display.
• Eight/twelve/fifteen stage relays controller with a one alarm selectable.
• Up to 15
th
Odd Harmonics and Total Harmonic Distortion (THD) for each
Voltages and Currents
