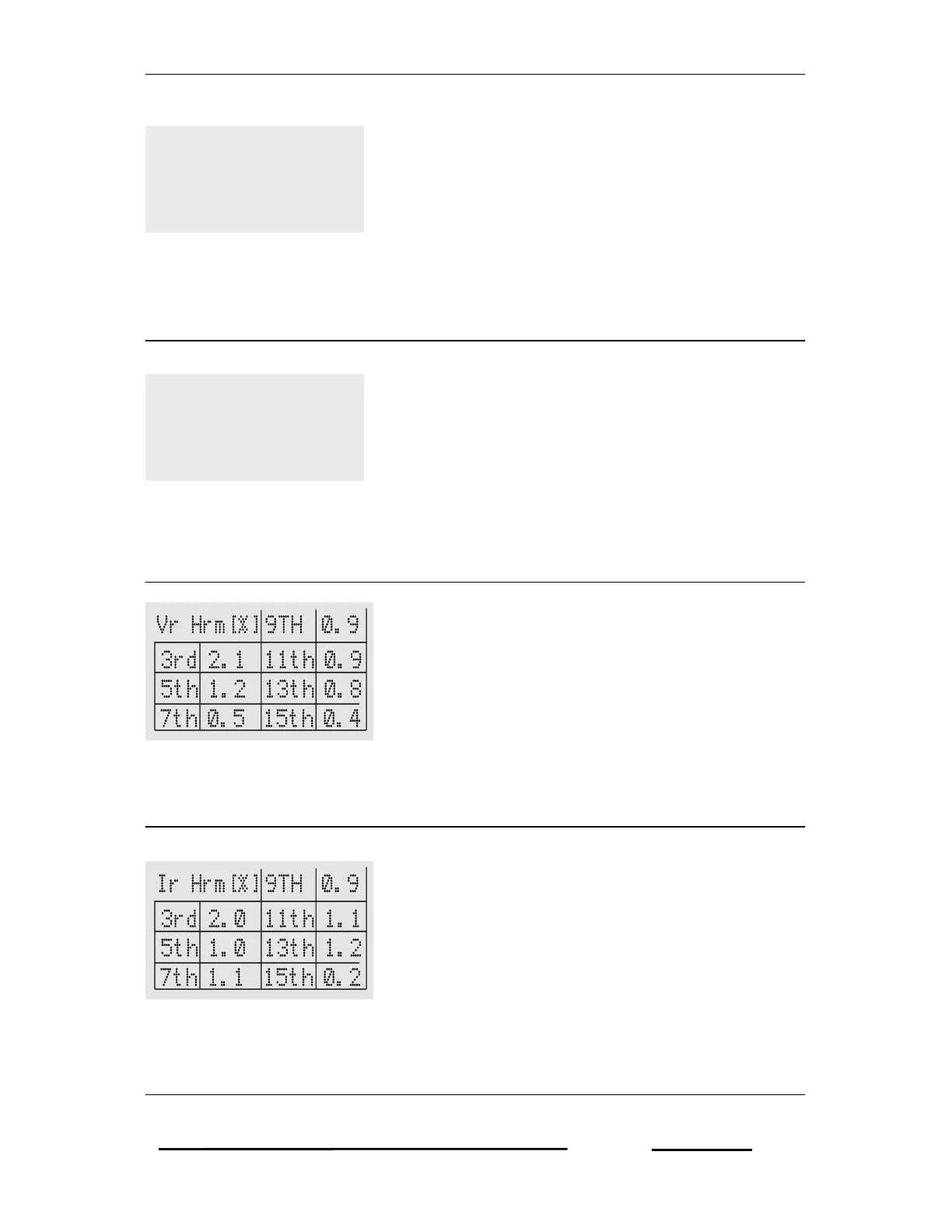

The ninth page shows user defined instantaneous KVA demand (KVA_D) power with
the maximum demand (MAX DMD) power occurrence recorded. In case, user
defined parameter is KW, the page will display KW_D instead.
The tenth page shows phase to neutral voltage in three phases. In case, PT ratio
>10.0, the voltages will auto scale to KV.
The eleventh page shows odd harmonics from 3rd to 15th for voltage in R-phase
with percentage form.
Likewise, the odd harmonics for voltage in Y-phase and B-
phase will also be shown on 13th and 15th pages respectively.
The twelfth page shows odd harmonics from 3rd to 15th for current in R-phase with
percentage form.
Likewise, the odd harmonics for current in Y-phase and B-phase
will also be shown on 14th and 16th pages respectively.
Vrn=238.6
Vyn=235.7
Vbn=240.8
KVA_D
10
MAX DMD
