XPERT-PRO – Operational Manual
TRINITY
[22]

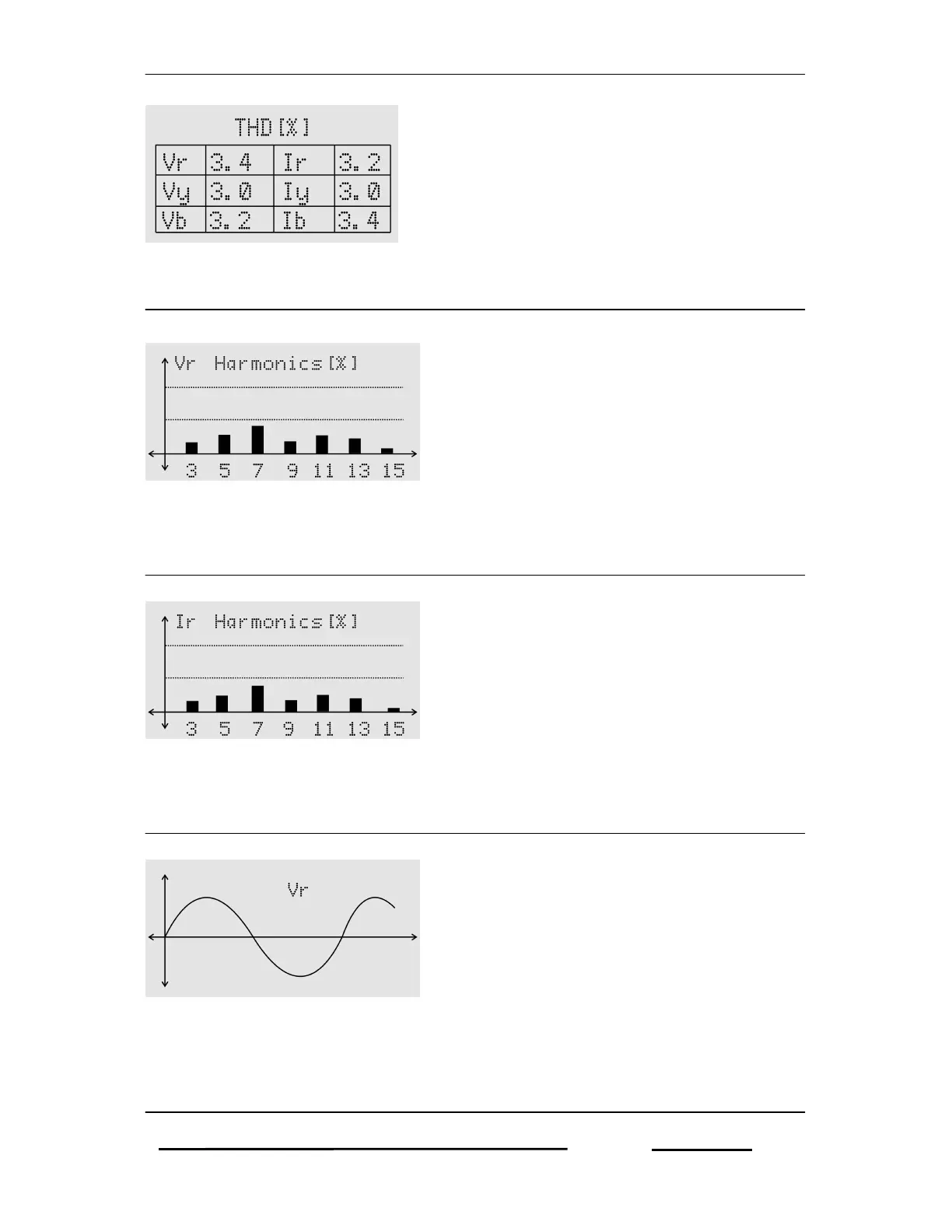

The seventeenth page shows total Odd Harmonics Distortions for both voltage and
current in R-Y-B phases with percentage form.
The eighteenth page shows Odd Harmonics Histogram for voltage in R-phase with
percentage form. Likewise, Odd Harmonics Histogram for voltages in both Y-phase
and B-phase will also be shown on 20th and 22nd pages respectively.
The nineteenth page shows Odd Harmonics Histogram for current in R-phase with
percentage form. Likewise, Odd Harmonics Histogram for current in both Y-phase
and B-phase will also be shown on 21st and 23rd pages respectively.
The twenty fourth page shows the Waveform for voltage in R-phase. Here user can
see if harmonic distortion is occurring in the wave form due to non-linear loads like
rectifier and UPS etc. Likewise, the wave form for voltage in both Y-phase and B-
phase will also be shown on 26th and 28th
pages.
