Trio MC403 - MC403;MC405 Surge Protection; MC403;MC405 Surge Protection Diagram; Separate I;O Power Surge Protection

8
MC403 / MC405
24V
0V
EARTH
24V
0V
EARTH
SURGE
PROTECTOR
MC464
MC664
24V
0V
EARTH
24V
0V
EARTH
SURGE
PROTECTOR
MC403
MC405
220uf
63V
220uf
63V

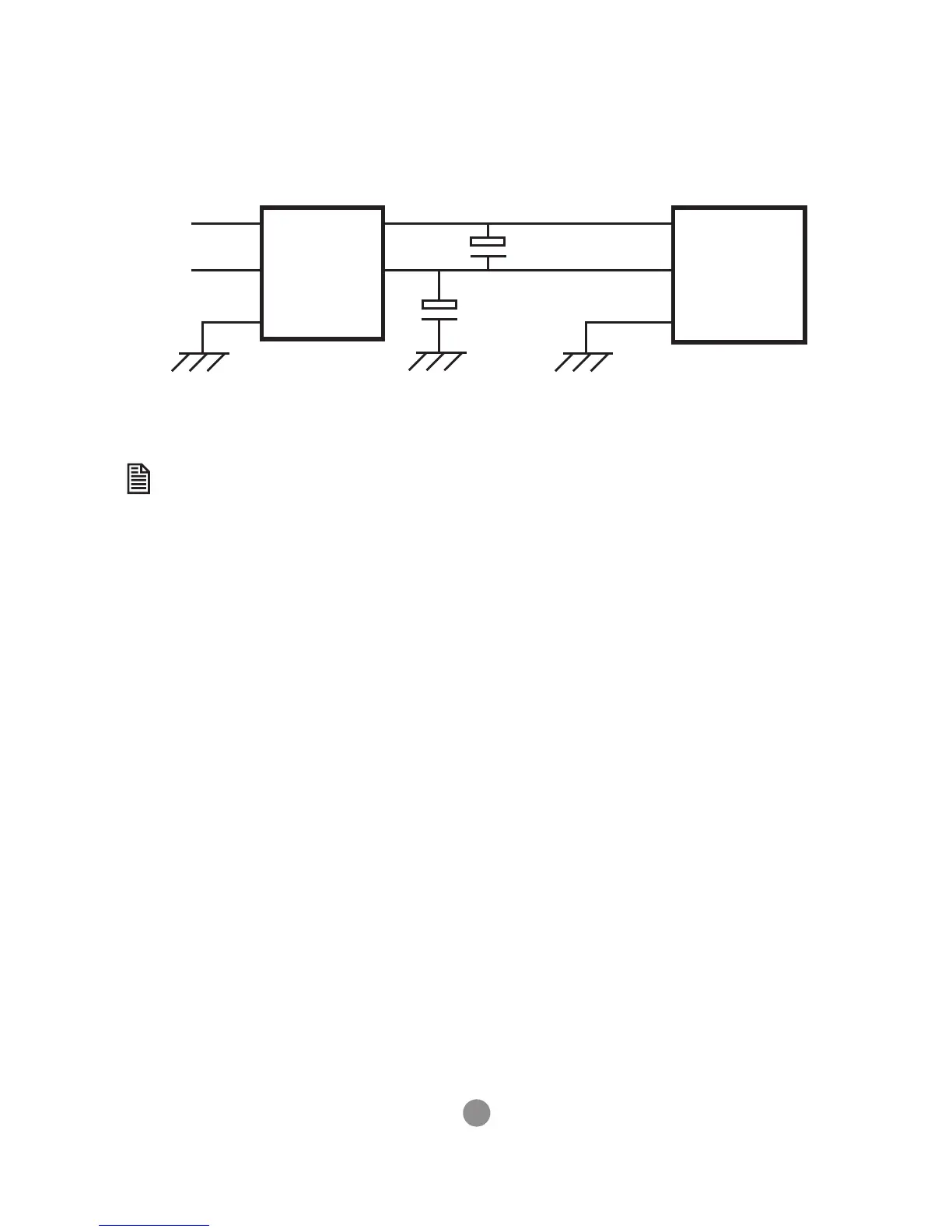

Surge protection device

If the I/O power is from a dierent power source to the main device power,
then the I/O power must also have a surge protector tted.
