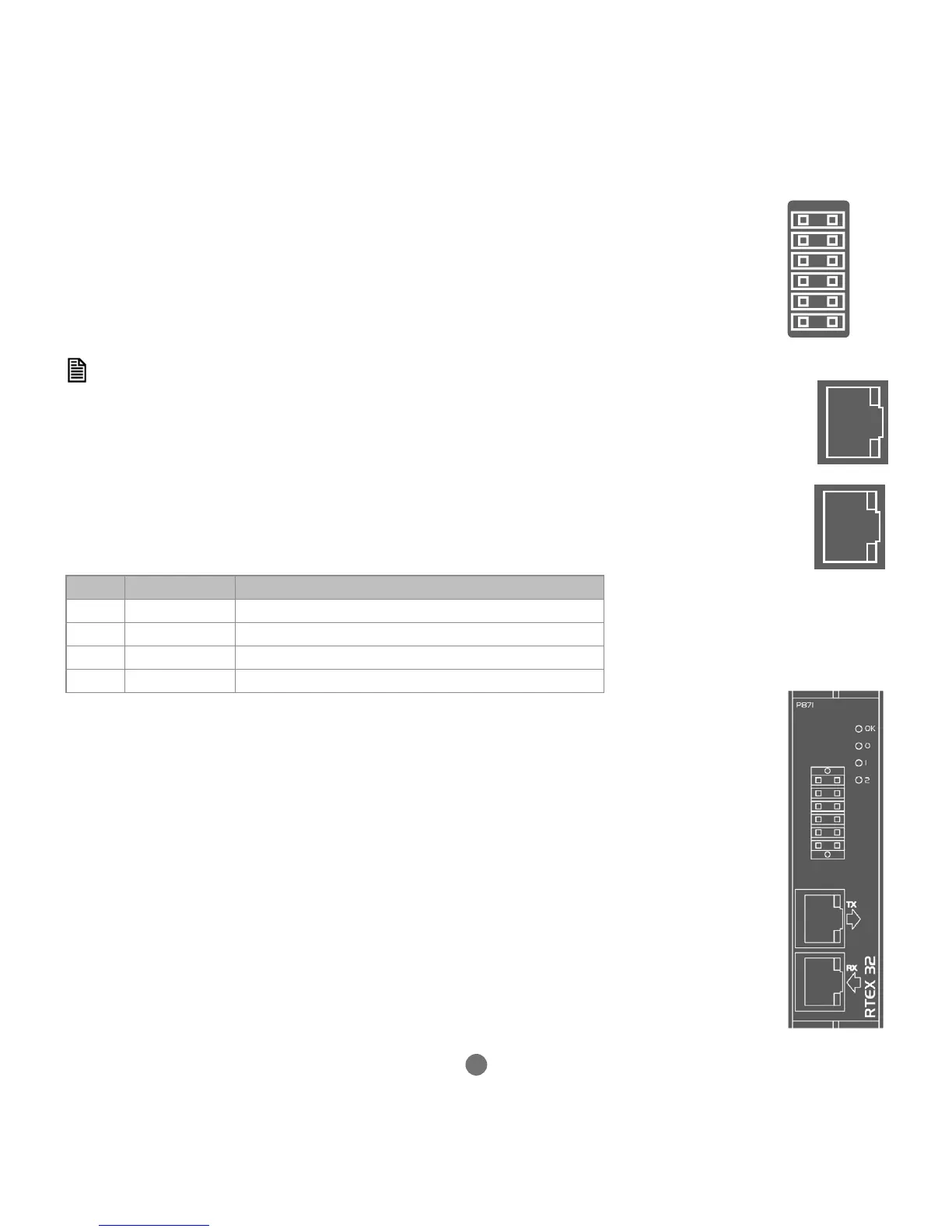

EXPANSION MODULE P871 - PANASONIC INTERFACE
REGISTRATION CONNECTOR
R0 - R7 registration inputs (24V).
R0V:
r
egistration common 0V return.
Registration inputs can be allocated to any axis by software.
Al
so available to software as general purpose inputs.

This pin out applies to module serial numbers P871-00011 and higher.
RJ45 CONNECTOR (TX)
100Mbps Panasonic “Realtime Express” transmit – connect to receive of rst drive.
RJ45 CONNECTOR (RX)
100Mbps Panasonic “Realtime Express” receive – connect to transmit of last drive.
LED FUNCTIONS
LED LED Colour LED Function
ok Green ON=Module Initialised Okay
0 Red ON=Module Error
1 Yellow Status 1
2 Yellow Status 2
R0
R1
R2
R3
R0V
R0V
R4
R5
R6
R7
R0V
R0V
