Trio MC664 User Manual

9

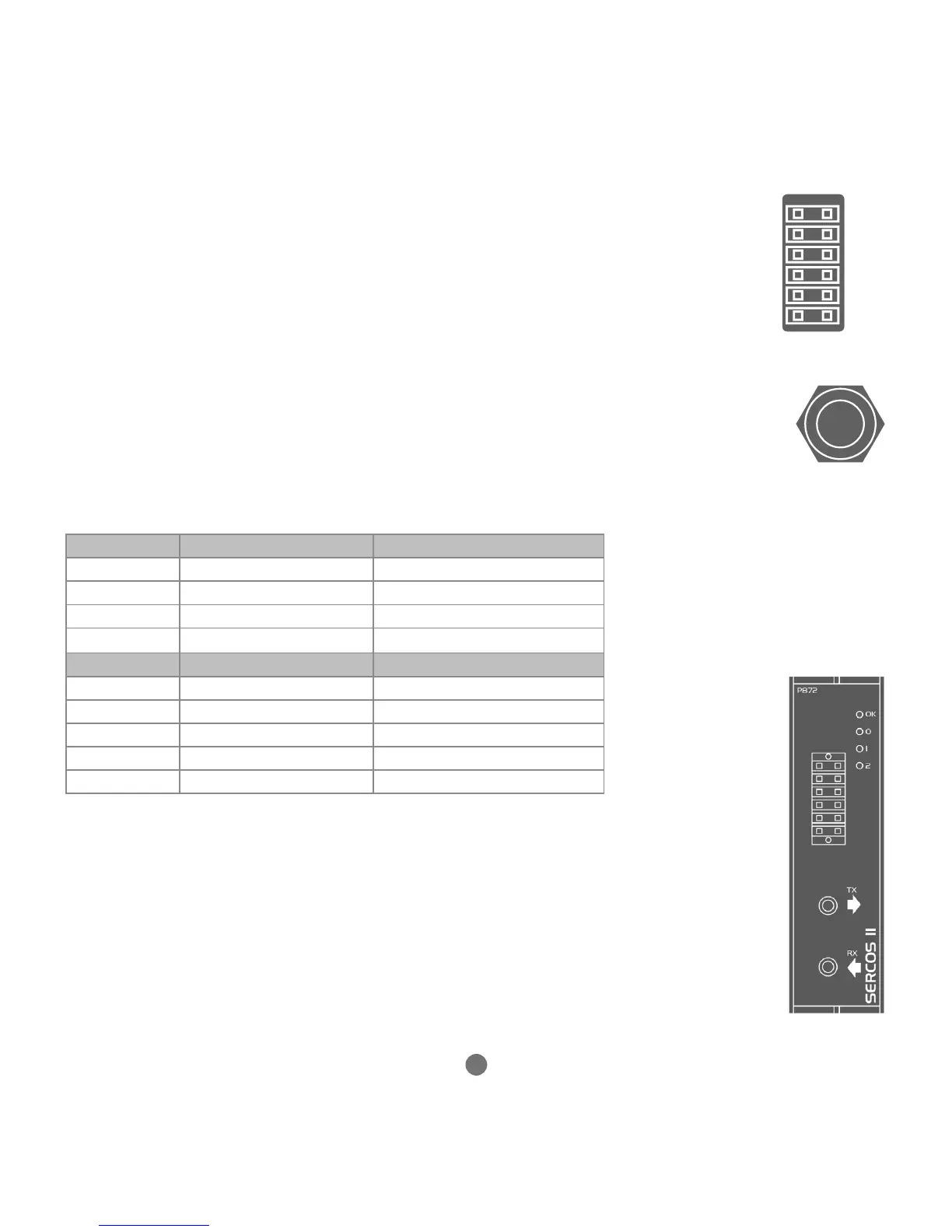

EXPANSION MODULE P872 - SERCOS INTERFACE
REGISTRATION CONNECTOR
R0 - R7: registration inputs (24V).
R0V:
r
egistration common 0V return.
CONNECTOR (TX)
sercos bre-optic transmit. (9mm FSMA)
CONNECTOR (RX)
sercos bre-optic receive. (9mm FSMA)
LED FUNCTIONS
LED LED Colour LED Function
ok Green ON=Module Initialised Okay
0 Red ON=Ring Open / Distorted
1 Yellow sercos Phase
2 Yellow sercos Phase
SERCOS PHASE LED 1 LED 2
0 OFF FLASH
1 OFF ON
2 FLASH OFF
3 ON OFF
4 ON ON
R0
R1
R2
R3
R0V
R0V
R4
R5
R6
R7
R0V
R0V
