Trio MC664 - LCD Display Information; Display at Start-up and WDOG; Expansion Module Installation; Procedure for Adding Modules

5
LCD DISPLAY
The model number, IP address and subnet mask of the MC664 are shown on the LCD display for a few seconds after power-up.
The factory default IP address is 192.168.0.250. This can be changed using the ETHERNET or the IP _ ADDRESS command via
Motion Perfect.
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
ENABLE
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

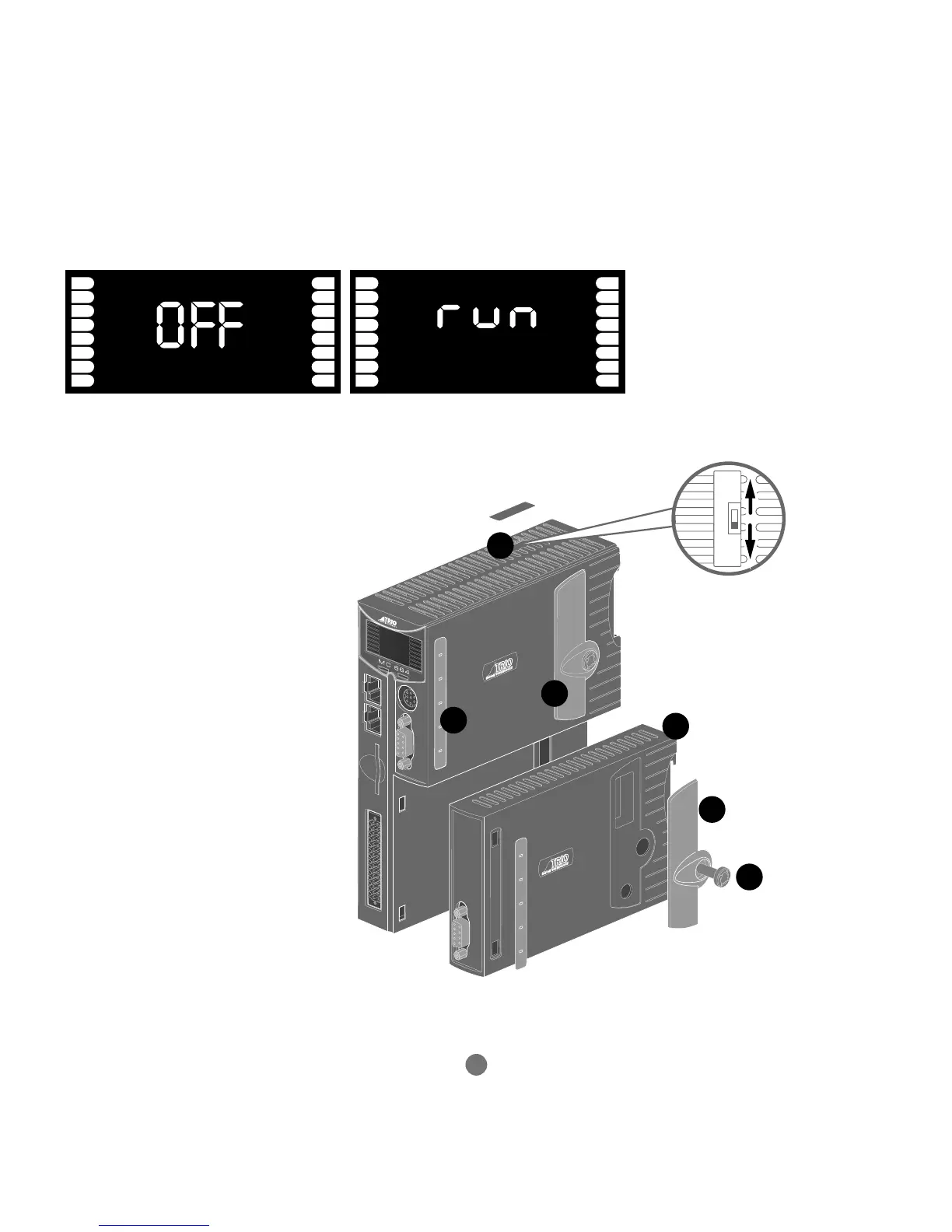

Display at start-up Display with WDOG on
ADDING EXPANSION MODULES
Unscrew the lower retaining xing (A) using
the supplied tool or a coin.
Remove the covers from the module (B).
Swing the expansion module (C) out from the
rear and unclip from the front end.
Replacing the module is the reverse of the
procedure.
Remove covers (E) before tting full height
expansion modules.
To access the recovery mode switch, insert
screwdriver under the frontmost ventilation
slot (D). See the Hardware Manual for
details of recovery mode operation.
B
Recovery
Normal
C
D
A
E
E
