4.3 Support Tube Installation
TriOS provides two adapter pieces for installing the TpH sensor in existing tube systems:
• NPT1 adapter ZM46 (incl. cap nut ZM13)
• G1 adapter ZM41 (incl. cap nut ZM13)
Assembly process
9
Version 1.1
Update: January 2016
AQUALABO CONTROLE
35 Rue Michel Marion – 56850 CAUDAN, FRANCE
Tel.: +33(0)2 97 89 25 30 – Fax: +33(0)2 97 76 55 72
Short pole
Long pole
The long poles are available in elbow version, for installations in aeration basin, and straight, for
applications in open channel. Every pole is equipped with an elbowed shutter and with waterproofness
joints. The lower part includes a nozzle which is adapted to the sensor what assures its mechanical
support.
Elbowed shutter
Ring shutter
Nozzle
The short pole is available in 2 versions :
- version with elbowed shutter. The nozzle of support is included in
the offer.
PF-ACC-C-00266
STRAIGHT SHORT POLE
FOR OPTOD SENSOR (1495
mm, ELBOWED SHUTTER)
PF-ACC-C-00267
STRAIGHT SHORT POLE
FOR PHEHT SENSOR (1495
mm, ELBOWED SHUTTER)
PF-ACC-C-00268
STRAIGHT SHORT POLE
FOR C4E/NTU SENSOR
(1495 mm, ELBOWED
SHUTTER)
- version with shutter for mounting with chain The nozzle of
support is included in the offer.
PF-ACC-C-00269
STRAIGHT SHORT POLE
FOR OPTOD SENSOR (1550
mm, RING SHUTTER)
PF-ACC-C-00270
STRAIGHT SHORT POLE
FOR PHEHT SENSOR (1550
mm, RING SHUTTER)
PF-ACC-C-00271
STRAIGHT SHORT POLE
FOR C4E/NTU SENSOR
(1550 mm, RING SHUTTER)
- Elbowed pole with elbowed shutter
PF-ACC-C-00230
90° ELBOW LONG POLE FOR
OPTOD SENSOR (2955 mm,
ELBOWED SHUTTER)
PF-ACC-C-00261
90° ELBOW LONG POLE FOR
PHEHT SENSOR (2955 mm,
ELBOWED SHUTTER)
PF-ACC-C-00262
90° ELBOW LONG PERCH
FOR C4E/NTU SENSOR (2955
mm, ELBOWED SHUTTER)
- Straight long pole with elbowed shutter
PF-ACC-C-00263
STRAIGHT LONG POLE FOR
OPTOD SENSOR (2745 mm,
ELBOWED SHUTTER)
PF-ACC-C-00264
STRAIGHT LONG POLE FOR
PHEHT SENSOR (2745 mm,
ELBOWED SHUTTER)
PF-ACC-C-00265
STRAIGHT LONG POLE FOR
C4E/NTU SENSOR (2745 mm,
ELBOWED SHUTTER)
Elbowed
shutter

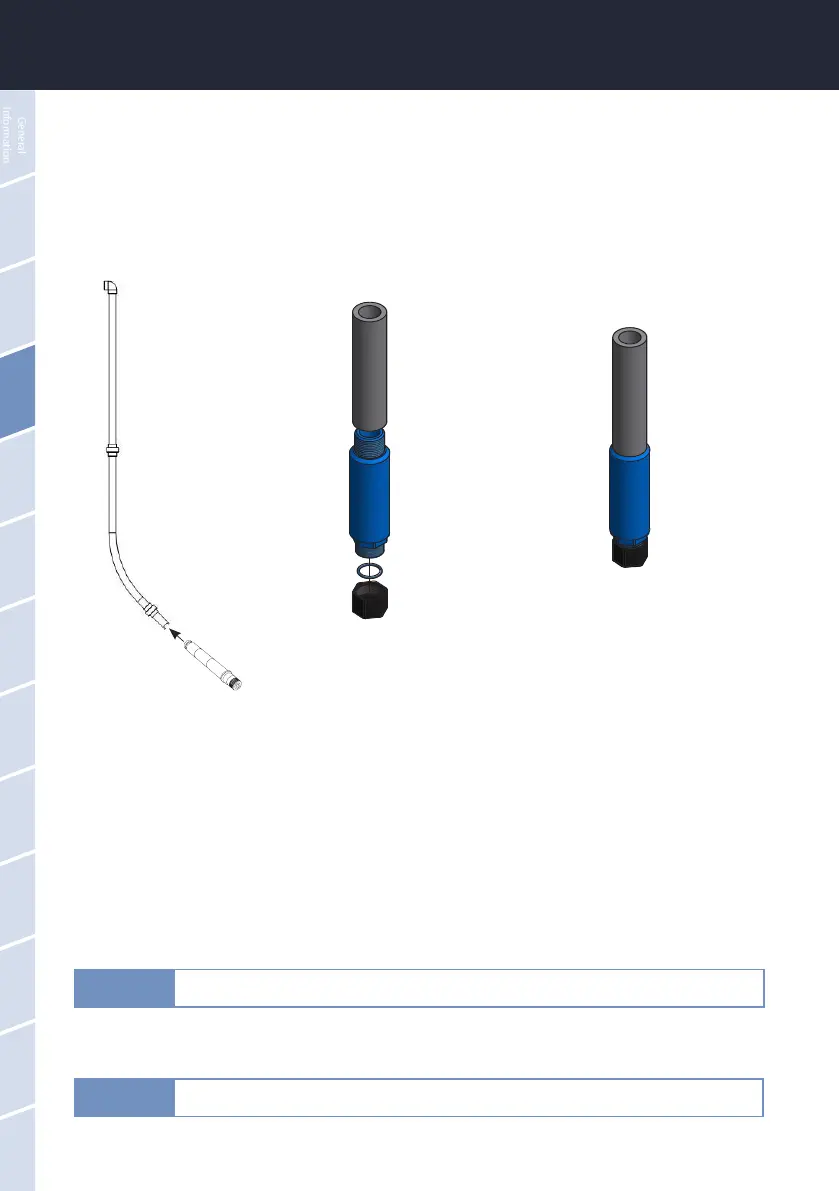

1. Guide the sensor cable from the side through the adapter, onto which the screw cap is later screwed
(short thread).
2. Pull the complete cable through and push the sensor into the adapter as far as it will go
(up to the guide obstacle).
3. Fix the sensor with the mounting cap.
4. The sensor and adapter can now be installed in the support tube.
Support tube
Adapter ZM46/ZM41
O-ring 23x2.5 NBR
Cap nut ZM13
4.4 Storage
Never store the sensor dry. Always keep the protective cap and reuse it for storage in a solution of pH4 buer and potassium
chloride or a 3 molar KCl solution.
Never store the TpH sensor dry.
If a sensor or the electrode of the sensor should nevertheless have dried out, the hydrated layer on the electrode must form
anew. The sensor must be immersed in a 3 molar KCl solution for several hours (>12h).
Never store the TpH sensor in distilled water!
