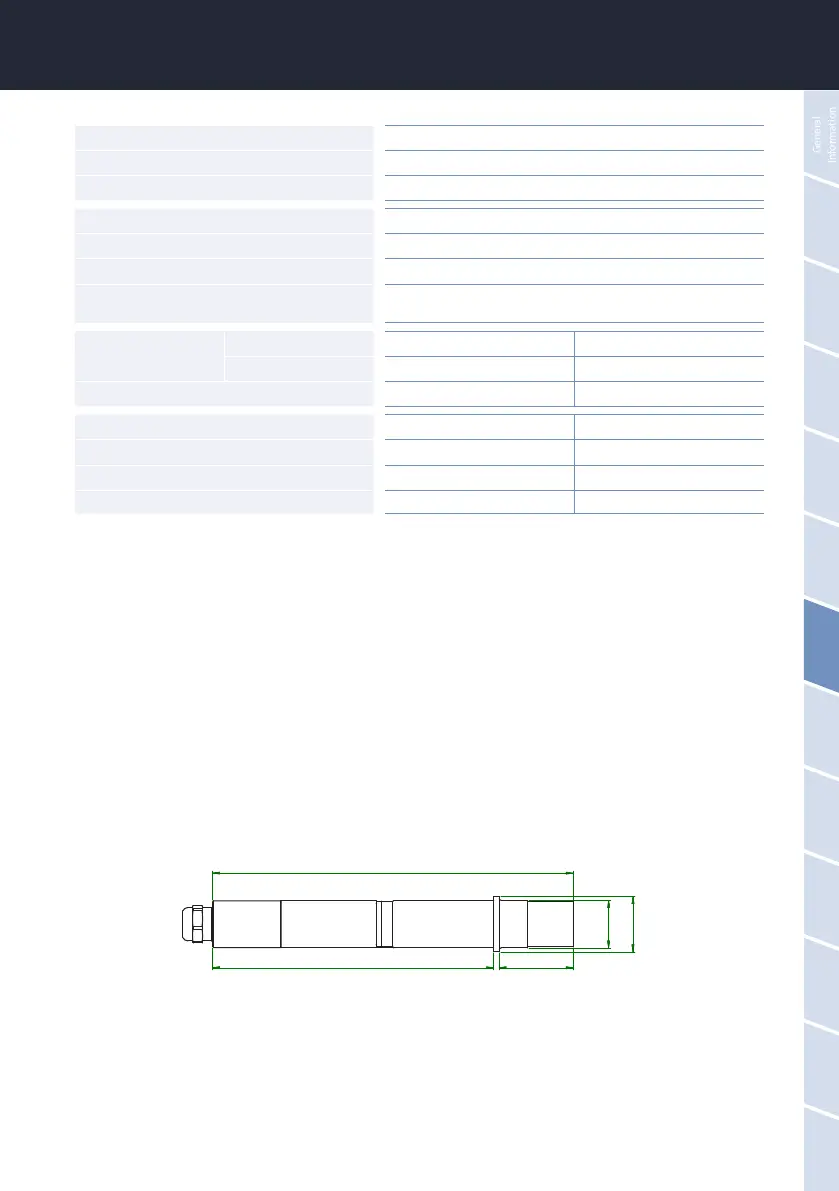

7.2 External Dimensions
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Name: TpH
Date: 23.02.2018 Rev.: TP101711
Note: Dimensions in mm
Document: D10-068en201805
TriOS Mess- und Datentechnik GmbH
● Bgm.-Brötje-Str. 25 ● 26180 Rastede ● Germany
fon: +49 4402 / 69 67 0 - 0
● fax: - 20 ● web: http://www.trios.de ● e-mail: info@trios.de
Dimension Drawing: TpH
Weitergabe sowie Vervielfältigung dieses Dokuments, Verwertung und Mitteilung seines Inhalts sind verboten,
soweit nicht ausdrücklich gestattet. Zuwiderhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten.
The reproduction, distribution an
d utilization of this document as well as the communication of its contents to others
without express authorization is prohibited. Offenders will be held liable for the payment of damages. All rights reserved.
Page 1 of 1
Note: iProperty -> Übersicht -> Kommentar
Preliminary: iProperty -> Status -> Status
Titel: iProperty -> Übersicht -> Titel
23
~
27
~
138~
36,5~
AF = across flats
178~
Position Material
sensor body
Polyethylene Terephthalate (PET)
Polyphenylene Sulfide (PPS)
sealings
Nitrile Butadiene Rubber (NBR)
pH Stem pH Sensing Glass
Power supply 12...24 VDC (± 10 %)
Connection 8-pin M12 plug
Sensor cable 2 m and 10 m
Required supervision Typically ≤ 0.5 h/month
Calibration / maintenance interval Typically 4 weeks
System compatibility Modbus RTU
Warranty
1 year (EU: 2 years) on electronics;
wearing parts are excluded
from the warranty
Max. pressure
with xed cable 3 bar ~ 43.5 psig
in ow cell 1 bar, 2...4 L/min ~ 14.5 psig, 0.5 to 1 gpm
Protection type IP68 NEMA 6P
Sample temperature +2...+40 °C ~ +36 °F to +104 °F
Ambient temperature -5...+55 °C ~ +23 °F to +131 °F
Storage temperature 0...+80 °C ~ +32 °F to +176 °F
Inow velocity 0...3 m/second ~ 0...10 fps
