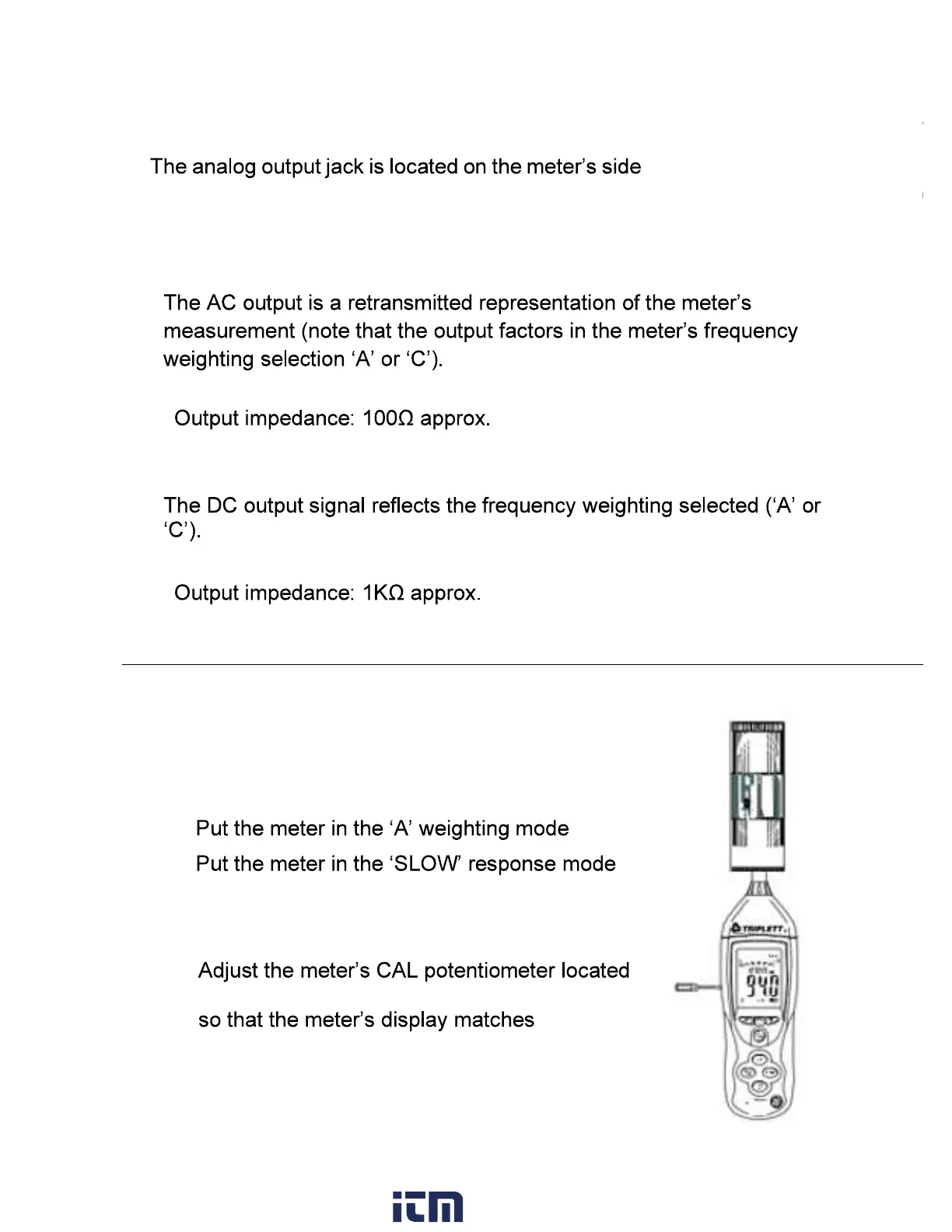

ANALOG OUTPUTS
The meter is equipped with an analog output feature.
panel and requires a 3.5mm stereo phono plug. (1-
AC Output, 2-DC Output, 3- Ground)
AC analog output
Output voltage: 1Vrms at full scale of the selected range.
DC analog output
Output voltage: 10mV (±1mV) per displayed dB.
Calibration
Frequent calibration is recommended and
is often required by noise standards and
directives.
1. Turn the meter ON
2.
3.
4. Place the calibrator onto the microphone.
5. Turn the calibrator ON.
6.
on the side panel
the output of the calibrator (typically
94dB or 114dB).
