Select Battery Type—REQUIRED

(All models)

CAUTION: The Battery Type DIP Switch setting must

match the type of batteries you connect, or your batteries

may be degraded or damaged over an extended period of

time. See “Battery Selection,” p. 9 for more information.

Battery Type Switch Position

Gel Cell (Sealed) Battery Up

Wet Cell (Vented) Battery Down (factory setting)

Select High AC Input Voltage Point

for Switching to Battery—OPTIONAL*

(OEM models only)

Voltage Switch Position

145V Up

135V Down (factory setting)

A1A2A3

INPUT C/B 10A

OUTPUT C/B 12A

B4 B3 B2 B1

A4 A3 A2 A1

Group B Dip Switches

Group A Dip Switches

Group A DIP Switches

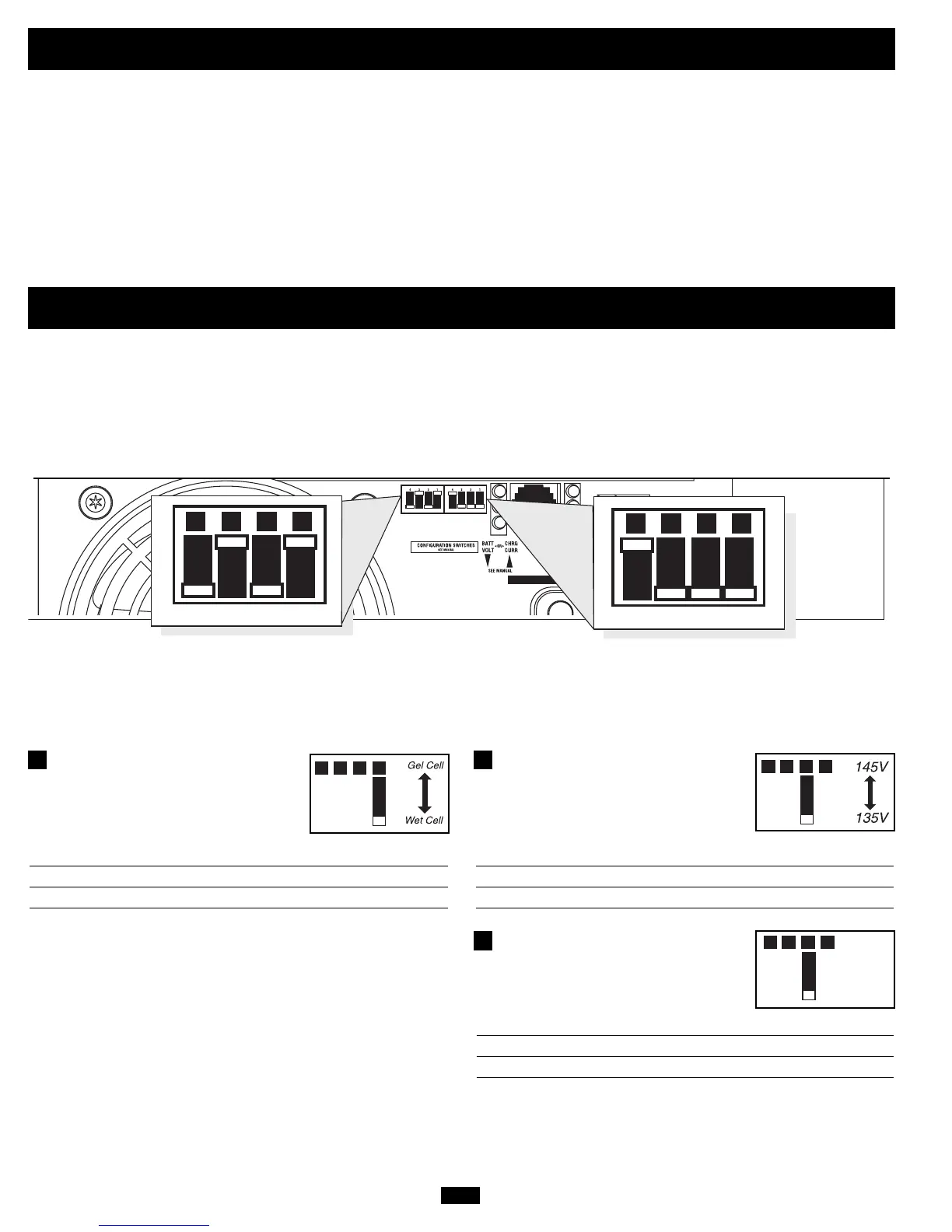

Using a small tool, configure your Inverter/Charger by setting the four Group A DIP Switches (located on the front panel of your unit; see

diagram) as follows:

Operation

(continued)

Resetting Your Inverter/Charger to Restore AC Power

Your Inverter/Charger may cease supplying AC power or DC charging power in order to protect itself from overload or to protect your elec-

trical system. To restore normal functioning:

Overload Reset: Switch operating mode switch to “OFF” or “DC OFF” and remove some of the connected electrical load (ie: turn off some

of the AC devices drawing power which may have caused the overload of the unit). Wait one minute, then switch operating mode switch

back to either “AUTO/REMOTE” or “CHARGE ONLY.”

Configuration

Set Configuration DIP Switches

Using a small tool, set the Configuration DIP Switches (located on the front panel, see diagram) to optimize Inverter/Charger operation

depending on your application. Refer to the appropriate section to review the instructions for your specific model.

Charger Inhibit

(Most models )

Function Switch Position

Charger Inhibited Up

Charger Enabled Down (factory setting)

A2A3

* Most of your connected appliances and equipment will perform adequately when your Inverter/Charger’s High AC Input Voltage Point (DIP Switch #2 of Group A) is set to 135V and its Low AC Voltage Input Point (DIP Switches

#3 and #4 of Group A) are set to 95V. However, if the unit frequently switches to battery power due to momentary high/low line voltage swings that would have little effect on equipment operation, you may wish to adjust these set-

tings. By increasing the High AC Voltage Point and/or decreasing the Low AC Voltage Point, you will reduce the number of times your unit switches to battery due to voltage swings.
