Aquasensation AS2000X
3
Hot water temperature
Maximum temperature 65°C.
BS 6700 recommends that the temperature
of stored water should never exceed 65°C. A
stored water temperature of 60°C is considered
sufficient to meet all normal requirements and
will minimise the effects of scale in hard water
areas.
Maximum static inlet pressures
100 Kpa (1 bar) or 10m (supplies must be
gravity fed at nominally equal pressures).
Minimum static inlet pressure
0.75 Kpa (0.0075 bar) or 75mm (required to
prime the integral centrifugal pump).
Maximum supply head 10m.
SPECIFICATIONS

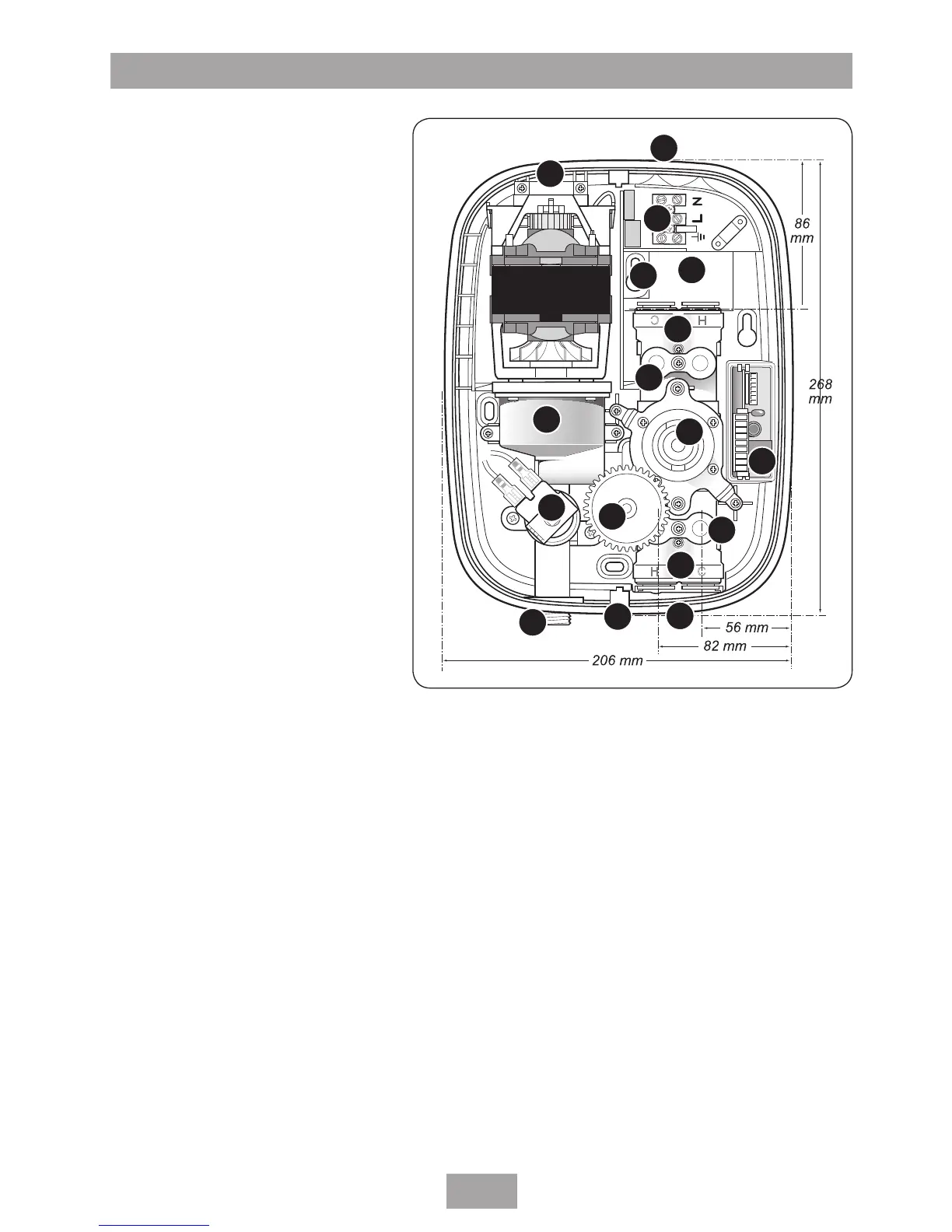

MAIN COMPONENTS
1. Top pipe entry and cable entry
2. Terminal block
3. Cover screw fixing
4. Motor retaining bracket
5. Rear pipe entry and cable entry
6. Wall fixing holes
7. Pipe inlet elbow - top
(contains single check valves)
8. Filter cover - top
9. Pump
10. PCB
11. Temperature control valve
12. Solenoid
13. Filter cover - bottom
14. Pipe inlet elbow - bottom
(contains single check valves)
15. Outlet
16. Bottom pipe entry
17. Potentiometer gear
Fig.1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
