Aquasensation AS2000X
6
Shower can
be mounted
either side of
the riser rail
Spill-over
level
Ceiling
Use soap dish
retaining ring
Height of
sprayhead
and shower
to suit user’s
requirement
Shower unit
must not be
within an area
1 metre
from base
Space for cover
screw access

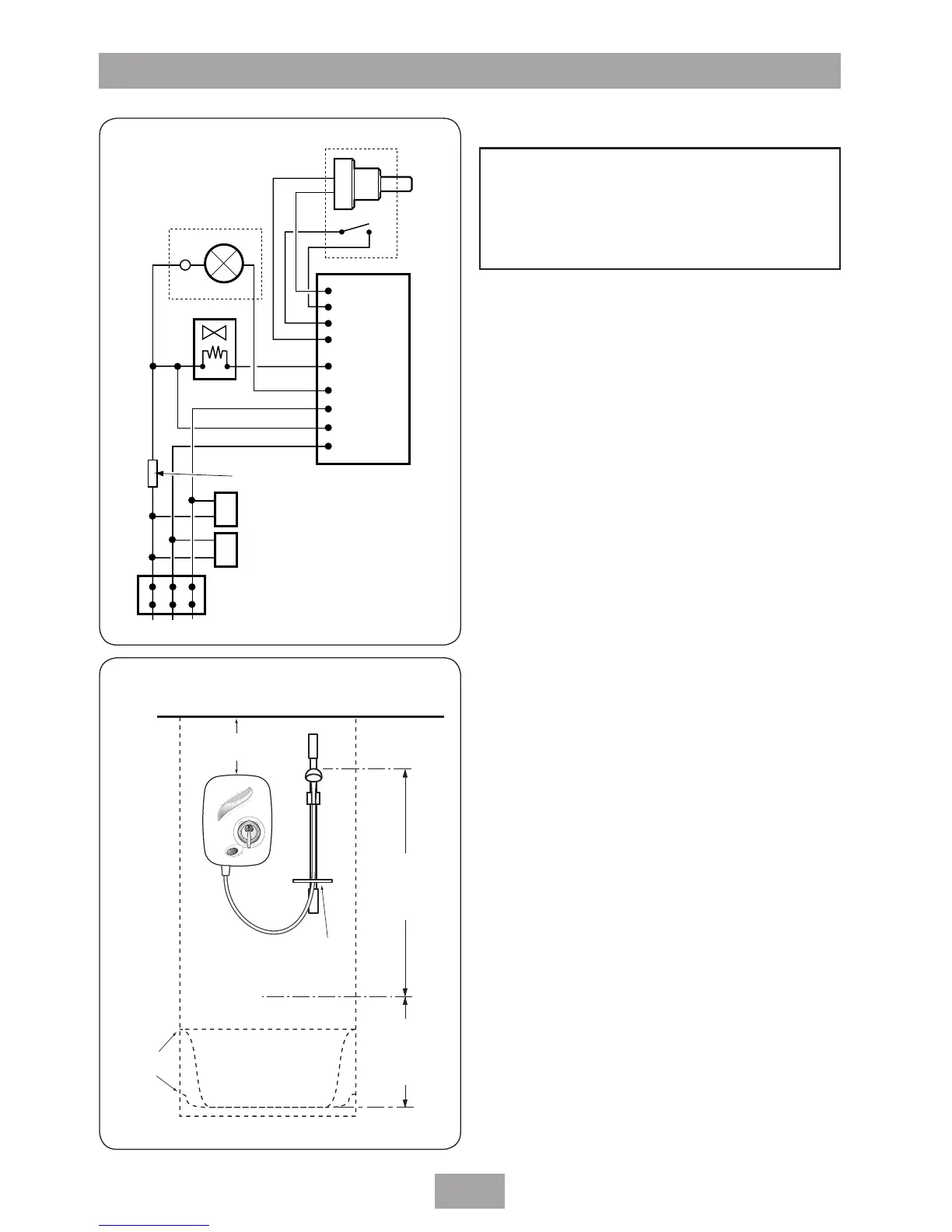

Fig.5
SITING OF THE SHOWER
IMPORTANT: If fitting to a tiled wall, always
mount the unit on the surface of the tiles.
NEVER tile up to the unit.
Refer to fig.5 for correct siting of the shower.
Position the unit vertically where it will NOT
be in direct contact with water from the
showerhead.
Note: Allow sufficient room between the ceiling
and the shower unit to access the top cover
screw.
Position the shower and showerhead on the wall
so that all controls can be comfortably reached
when using the shower.
The showerhead and riser rail can be positioned
either side of the shower unit.
Note: Water Regulations require the showerhead
be ‘constrained by a fixed or sliding attachment
so that it can only discharge water at a point
not less than 25 mm above the spill-over level
of the relevant bath, shower tray or other fixed
appliance’. The use of the supplied soap dish will
in most cases meet this requirement, but if the
showerhead can be placed within a bath, basin
or shower tray, then a device must be fitted to
prevent back-flow.
L E N
Potentiometer
Switch
Solenoid
Motor
Capacitor 2
RFI suppression coil
Capacitor 1
PCB
Thermal
fuse
AS2000T/AS2000 schematic wiring schematic
Fig.4 (schematic view )
WARNING!
The shower must not be positioned
where it will be subject to freezing
conditions.
