Triton ENVI Installation Instructions

10
INSTALLATION REQUIREMENTS
Separate permanently
connected supply
from consumer unit
Switch may
be wall
mounted
in accordance
with IEE wiring
regulations
Mains cold
water supply
Heated
water supply
10m controller data cable
230-240V ac
electricity supply
(via double pole switch)
Outline of bath
or shower tray
Hose
retainer
Spillover
level
Shower kit
or bulkhead
Isolating
Valve
Double
pole
isolating
switch
25mm minimum
Height of shower head to suit user’s requiremient
Controller must not be within 1m from base

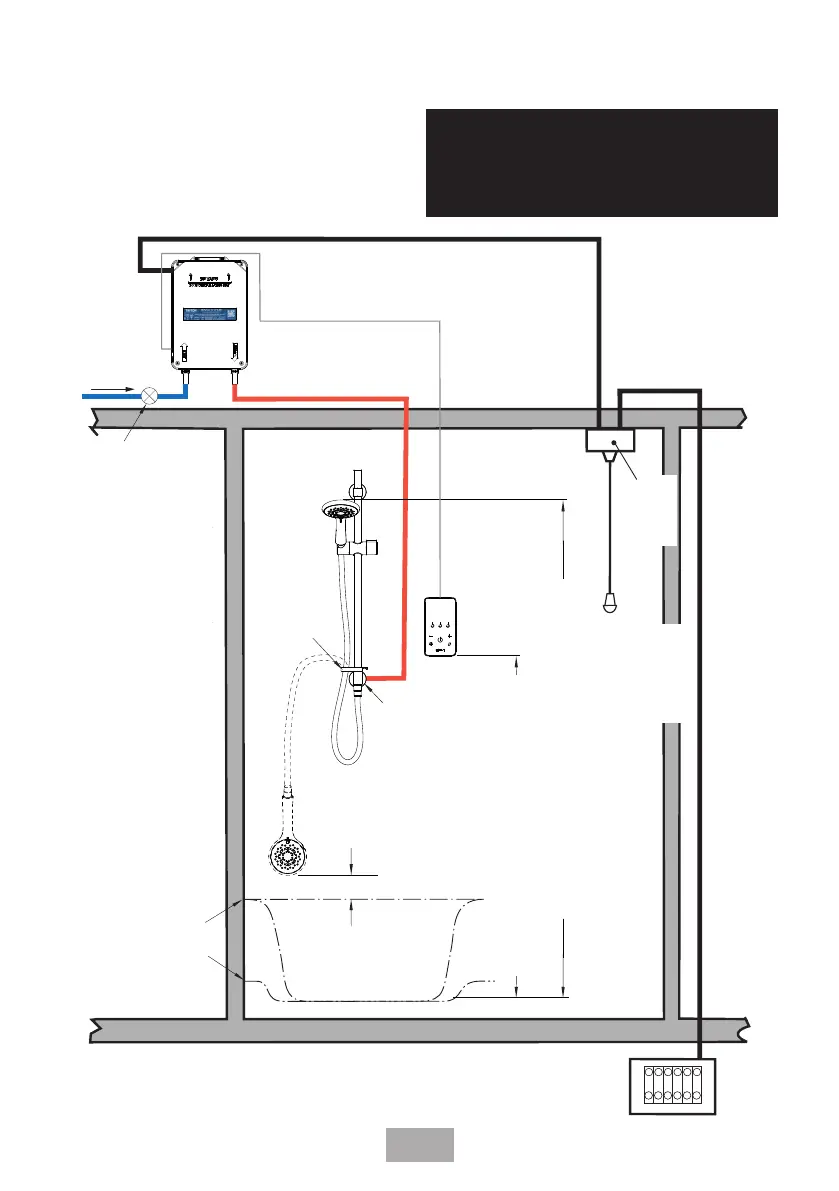

Fig.1 Diagrammatic view.
Tri-HUB must be connected to a
single outlet kit recommended by the
manufacturer.
WARNING
The Tri-HUB MUST NOT be positioned
where it will be subjected to freezing
conditions.
Not to scale.
For illustration purposes only.

Triton ENVI Specifications

General

Start/Stop Button	Yes
Material	Plastic
Finish	White
ADA Compliant	No
Warranty	2 Years
Temperature Control	Yes
Installation Type	Wall-mounted
Showerhead Modes	Single Mode
