General Information
48
Brake and Clutch Lever
Adjusters
Warning
Do not attempt to adjust the levers
with the motorcycle in motion as this
may lead to loss of motorcycle control
and an accident.
After adjusting the levers, operate the
motorcycle in an area free from traffic
to gain familiarity with the new lever
setting.
Do not loan your motorcycle to anyone
as they may change the lever setting
from the one you are familiar with
causing loss of motorcycle control and
an accident.
1 2

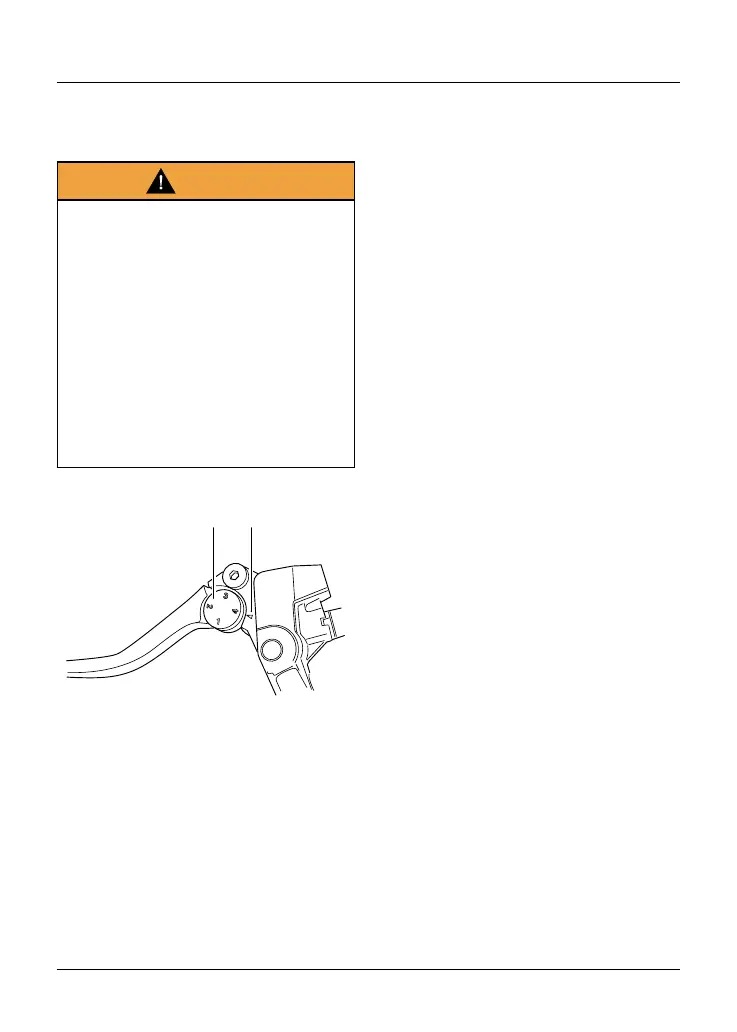

1. Adjuster wheel, clutch lever shown
2. Arrow mark
An adjuster is fitted to both the front
brake and clutch levers. The adjusters
allow the distance from the handlebar
to the lever to be changed to one of
five positions for the front brake lever
or four positions for the clutch lever, to
suit the span of the operator's hands.
To adjust the lever:
• Push the lever forward and turn the
adjuster wheel to align one of the
numbered positions with the arrow
mark on the lever holder.
• The distance from the handlebar
grip to the released lever is shortest
when set to number four/five, and
longest when set to number one.

Triumph Bonneville Speedmaster Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0:1
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Rear Tyre	150/80 R16
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Torque	106 Nm @ 4000 rpm
Exhaust	2-into-2 exhaust system with twin silencers
Final Drive	Chain
Frame	Tubular steel
Front Brakes	Twin 310mm discs, Brembo 2-piston calipers, ABS
Front Wheel	16 x 2.5 in
Rear Wheel	16 x 3.5 in
Seat Height	705 mm
Fuel Tank Capacity	12 litres
Rear Suspension	Mono-shock RSU with linkage, 73mm rear wheel travel
Dry Weight	245kg
