MAINTENANCE
155
Fuses
WARNING
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover).
Never replace a blown fuse with a fuse
of a different rating.
Use of an incorrect fuse could lead to
an electrical problem, resulting in
motorcycle damage and leading to loss
of motorcycle control which could
result in serious injury or death.
NOTICE
A blown fuse is indicated when all of
the systems protected by that fuse
become inoperative. When checking
for a blown fuse, use the table to
establish which fuse has blown.
The fuse box is located underneath the
seat. To allow access to the fuse box,
the seat must be removed, see page74.
.5A ACC
7
15A
15A
15A
.5A
7
5A AUX
25A 10A 15A
1 5 6
7
2 3 4
8 9

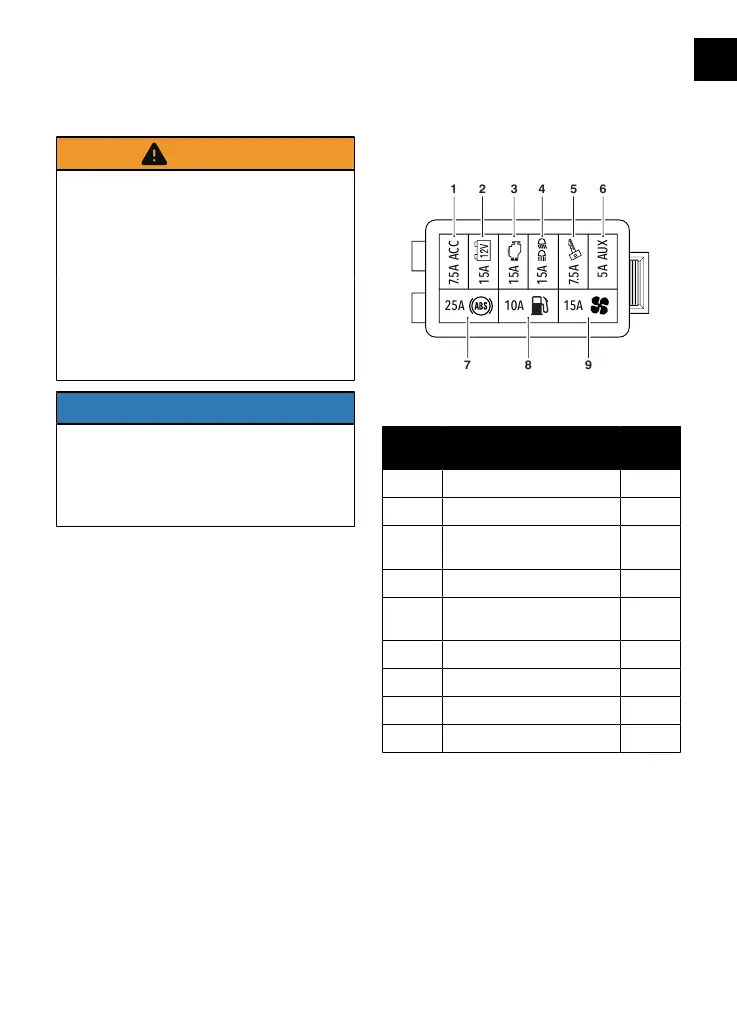

Fuse Box
Positio
n
Circuit Protected
Rating
(Amps)
1 Accessory socket 7.5
2 Battery 15
3
Engine Management
System (EMS)
15
4 Lighting 15
5
Ignition switch, starter
circuit
7.5
6 USB port socket 5
7 ABS 25
8 Fuel pump 10
9 Cooling fan 15
