Triumph Street Triple Moto2 Edition User Manual

MAINTENANCE
186

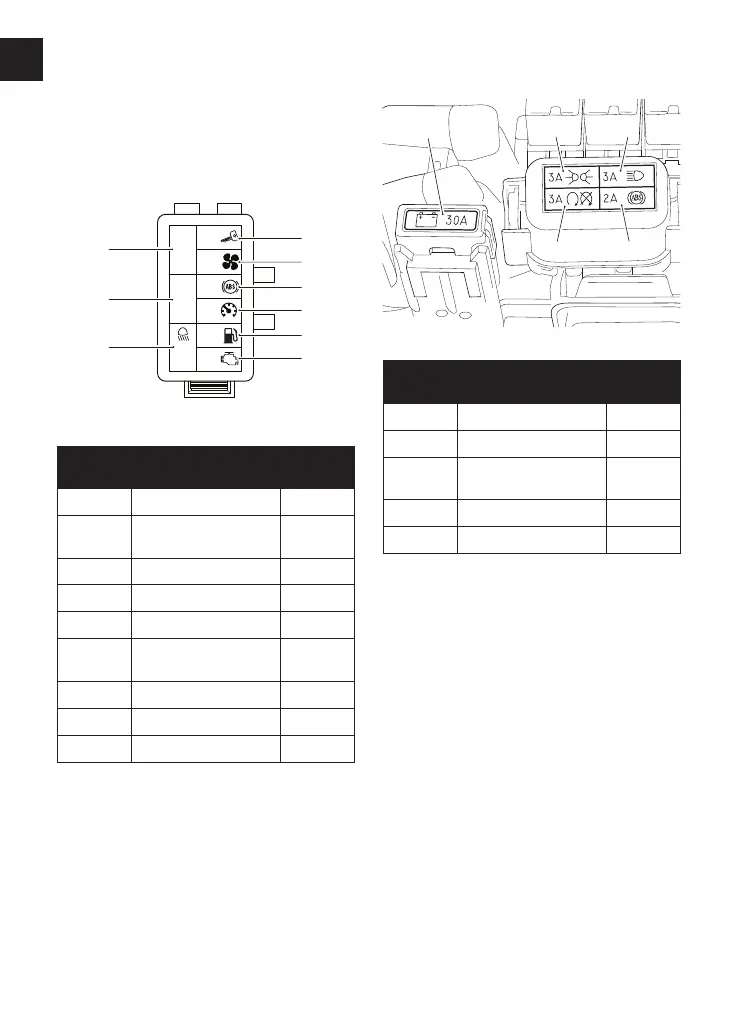

Fuse Identification
Spare fuses are located on the inside
of the fuse box cover and should be
replaced if used.
10A
5A
15A
7.5A
10A
15A
25A
15A
HORN
ACC
10A
9
7
8
3
1
2
4
5
6
Fuse Box 1
Position Circuit Protected
Rating
(Amps)
1 Ignition 15
2
Starter motor/cooling
fan
15
3 ABS modulator 25
4 Instruments 10
5 Fuel pump 10
6
Engine management
system
10
7 Horn 5
8 Accessories 7. 5
9 Headlight dip beam 10
1
4
2
3
5
Fuse Box 2 and Main Fuse Box
Position Circuit Protected
Rating
(Amps)
1 Headlight main beam 3
2 ABS modulator 2
3
Engine run/stop
switch
3
4 Position light 3
5 Main fuse 30

Triumph Street Triple Moto2 Edition Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Engine Capacity	765 cc
Max Torque	80 Nm @ 9, 500 rpm
Transmission	6-speed
Dry Weight	166 kg
Front Brakes	Twin 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers
Rear Brakes	Single 220 mm disc, Brembo single piston caliper
Fuel Tank Capacity	15 litres
Frame	Aluminium beam twin spar
Wheels	17 x 3.5 in (front), 17 x 5.5 in (rear)
Front Suspension	Öhlins 43 mm NIX30 upside down forks, adjustable compression and rebound damping
