Maintenance and Adjustment
Headlight Adjustment - Street Triple
and Street Triple R
Headlight Adjustment - Vertical

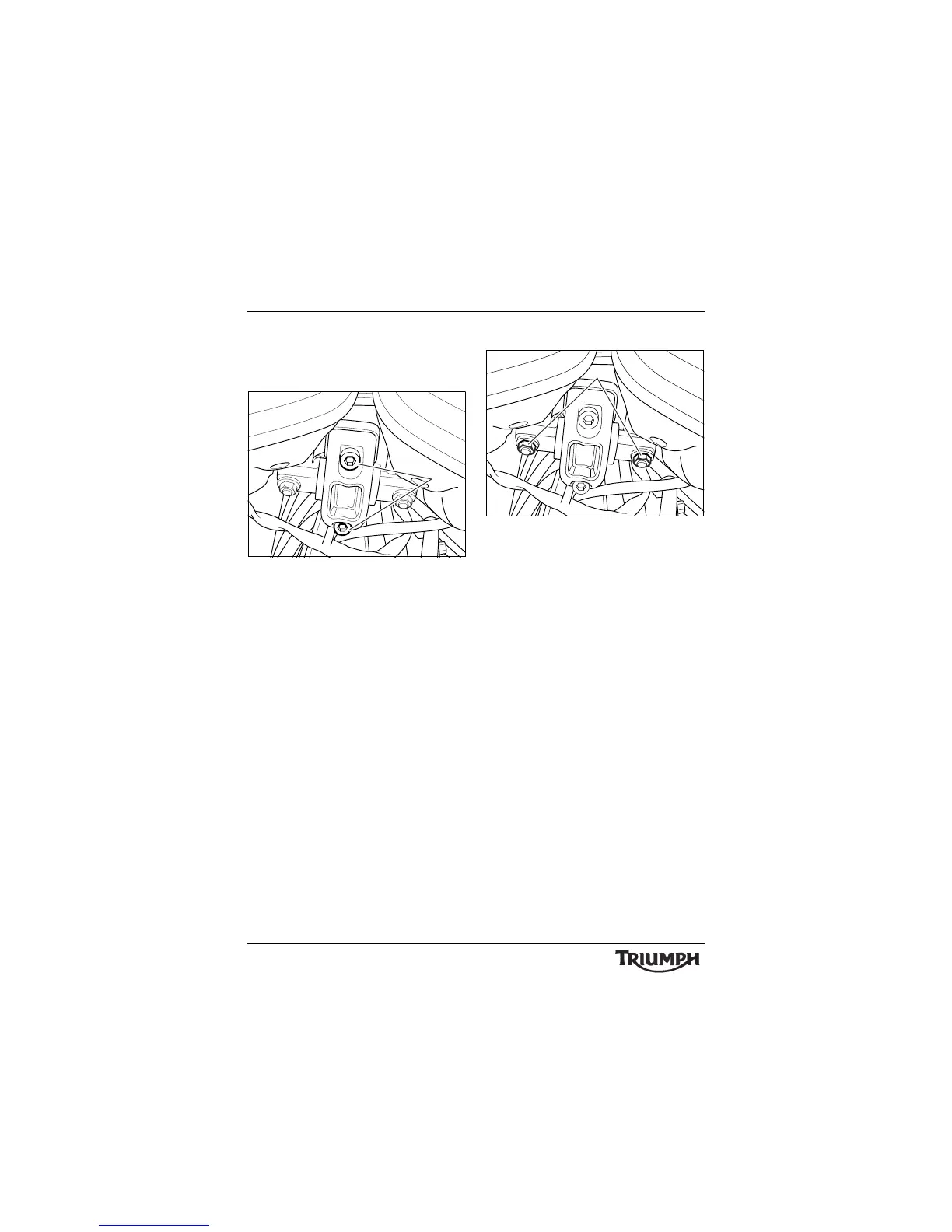

1. Vertical beam adjuster bolts
The vertical beams of the left and right hand
headlights can only be adjusted together.
Independent adjustment is not possible.
Switch the headlight dipped beam on.
Loosen the clamp bolts sufficiently to allow
restricted movement of the headlights.
Adjust the position of the headlights to give
the required beam setting.
Tighten the clamp bolts, front first, to
11 l b f - f t ( 15 N m ) .
Re-check the headlight beam settings.
Switch the headlights off when the beam
settings are satisfactorily set.
Headlight Adjustment - Horizontal
1. Headlight mounting nut
The horizontal beams of both headlights can
be adjusted individually. The same procedure
is used to adjust either headlight.
Switch the headlight dipped beam on.
Loosen the headlight mounting nut.
Adjust the left or right horizontal position of
the headlight to give the required beam
setting.
Tighten the nut to 22 lbf-ft (30 Nm).
Repeat for the second headlight.
Re-check the headlight beam settings.
Switch the headlights off when both beam
settings are satisfactorily set.
1
cgfc_2
1
cgfc_3

Triumph STREET TRIPLE Specifications

General

Engine Type	Liquid-cooled, 12-valve, DOHC, inline 3-cylinder
Displacement	765 cc
Transmission	6-speed
Max Torque	80 Nm (59 lbft) @ 9, 500 rpm
Front Suspension	Showa 41mm upside-down separate function big piston forks
Rear Suspension	Showa monoshock, adjustable preload and rebound damping
Front Brakes	Twin 310mm floating discs, Brembo M4.32 4-piston radial monobloc calipers, ABS
Rear Brakes	Single 220mm disc, Brembo single-piston sliding caliper, ABS
Wet Weight	188 kg
