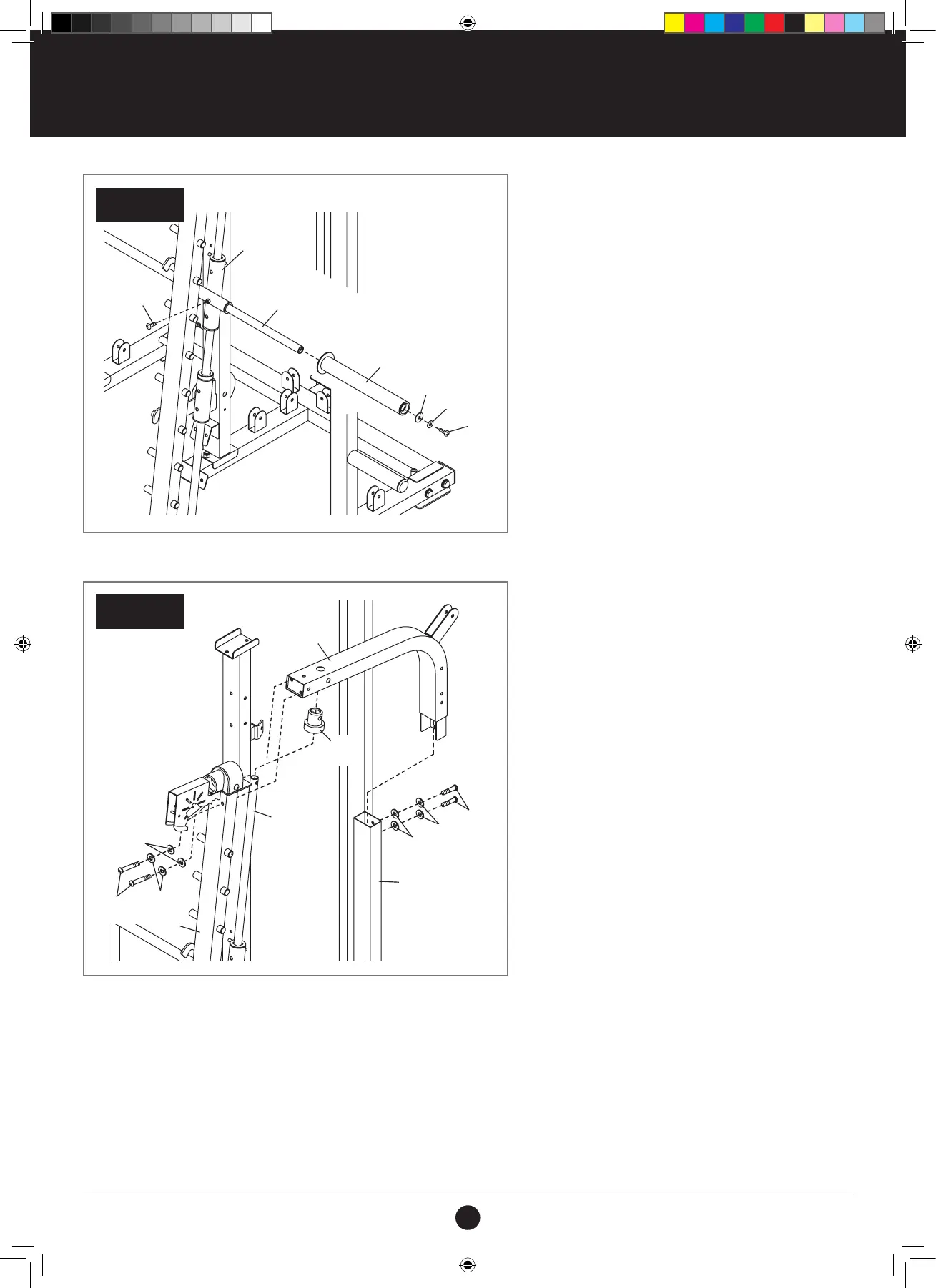

ASSEMBLY STEPS
STEP 11:
1. Attach a Weight Bar Adapter (22) to one end of
the Weight Bar (17) with an M10 x 30 mm Button
Screw (95), an M10 Split Washer (93), and an M10
Large Washer (76). Repeat this step on the other
end of the Weight Bar.
2. Tighten an M8 x 20 mm Screw (21) into the Left
Carriage (20). Repeat this step with the Right
Carriage (not shown).
STEP 12:
1. Insert a Guide Cap (33) upward into a Side Top
Frame (13). Set the Side Top Frame on the left
Weight Bar Guide (5) and insert it into the Left
Support (6).
2. Attach the Side Top Frame (13) to the Left
Upright (3) and the Left Support (6) with two
M10 x 75 mm Button Bolts (102), two M10 x
25 mm Screws (98), four M10 Split Washers (93),
and four M10 Washers (84).
Do not tighten the Button Screws yet.
3. Repeat this step with the other Side Top Frame
STEP 12
STEP 11
13
33
5
84
84
93
93
98
6
3
102
21
20
17
22
76
93
95
