21
27
24
5
3
27
ASSEMBLY STEPS
19
18
20
17
5
3
4
5

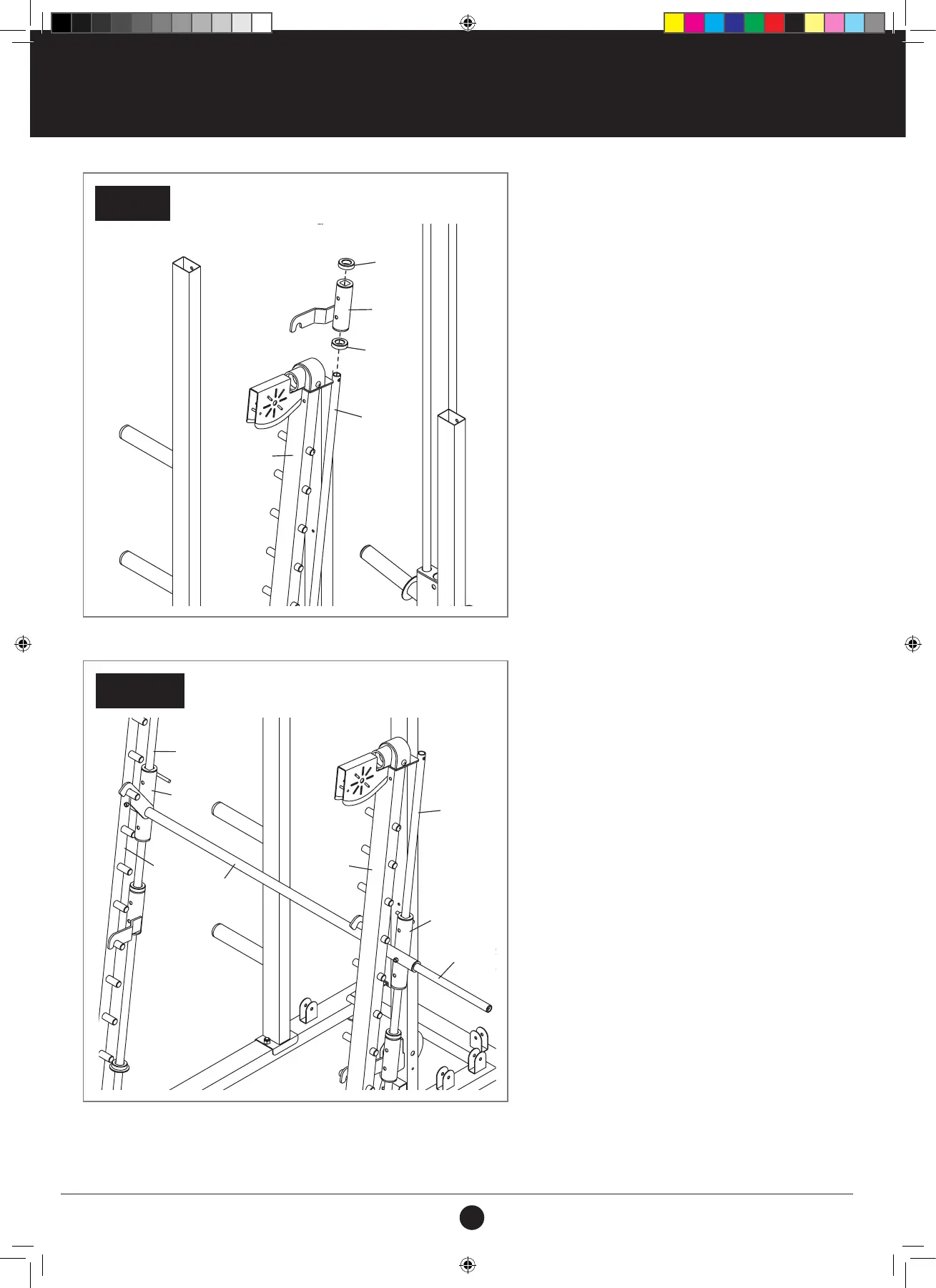

STEP 9:
1. Orient the Left Spotter (24) as shown.
2. Slide the Left Spotter (24) and two Carriage
Bumpers (27) onto the left Weight Bar
Guide (5). Then, engage the Left Spotter
onto the Left Upright (3).
3. Repeat this step with the Right Spotter
(not shown) and the right Weight Bar Guide
(not shown).
STEP 10:
1. Slide the Right Carriage (19) and the Left
Carriage (20) onto the Weight Bar Guides (5).
2. Insert the Weight Bar (17) through the Left
Carriage (20), the Locking Bar (18), and the
Right Carriage (19).
3. Engage the Locking Bar onto the Uprights (3, 4).
STEP 10
STEP 9
5
5
5
3
4
18
17
20
19
27
27
24
