24
8
12
79
84
84
90
90
13
13
15
15
97
97
79
79
92
8
92
79
84

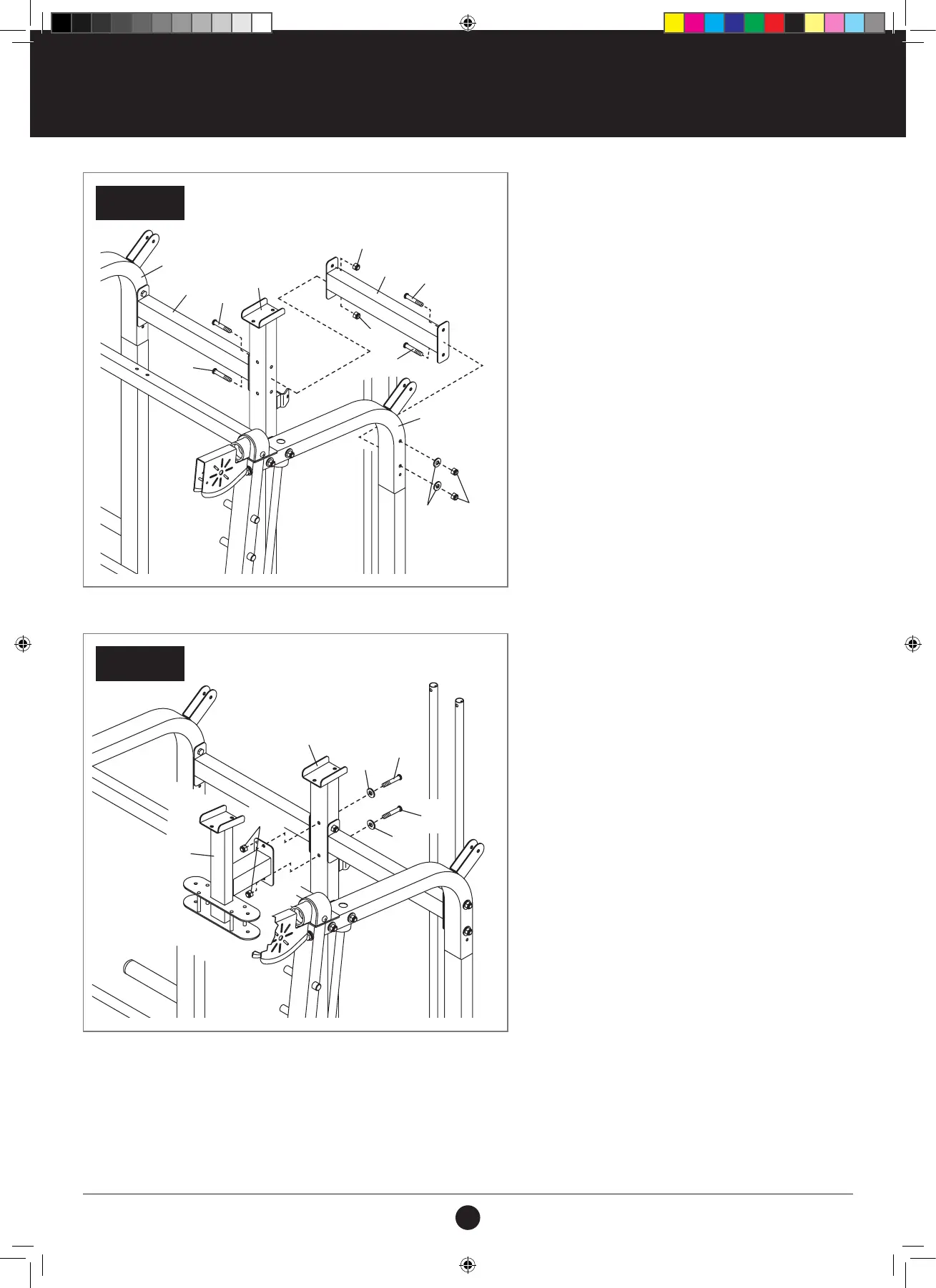

ASSEMBLY STEPS
STEP 15:
1. Attach a Support Frame (15) to the left Side Top
Frame (13) with two M10 x 93 mm Bolts (97),
two M10 Washers (84), and two M10 Locknuts
(79). Do not tighten the Locknuts yet.
2. Attach the other Support Frame (15) to the right
Side Top Frame (13) in the same way.
3. Attach the two Support Frames (15) to the
Backrest Upright (8) with two M10 x 95 mm
Bolts (92) and two M10 Locknuts.
STEP 16:
1. Attach the Arm Frame (12) to the Backrest
Upright (8) with two M10 x 68 mm Bolts (90),
two M10 Washers (84), and two M10 Locknuts
(79). Do not tighten the Locknuts yet.
STEP 16
STEP 15
92
8
8
92
90
90
84
84
84
12
79
79
79
79
15
97
97
13
15
13
#21M05T035 Multifunction Smith Machine UM A4.indd 24 2021/06/24 11:27 AM
