Trojan MULTIFUNTION SMITH MACHINE - Page 25

25
144
79
10
11
12
31
31
Grease
Grease
ASSEMBLY STEPS
ASSEMBLY STEPS

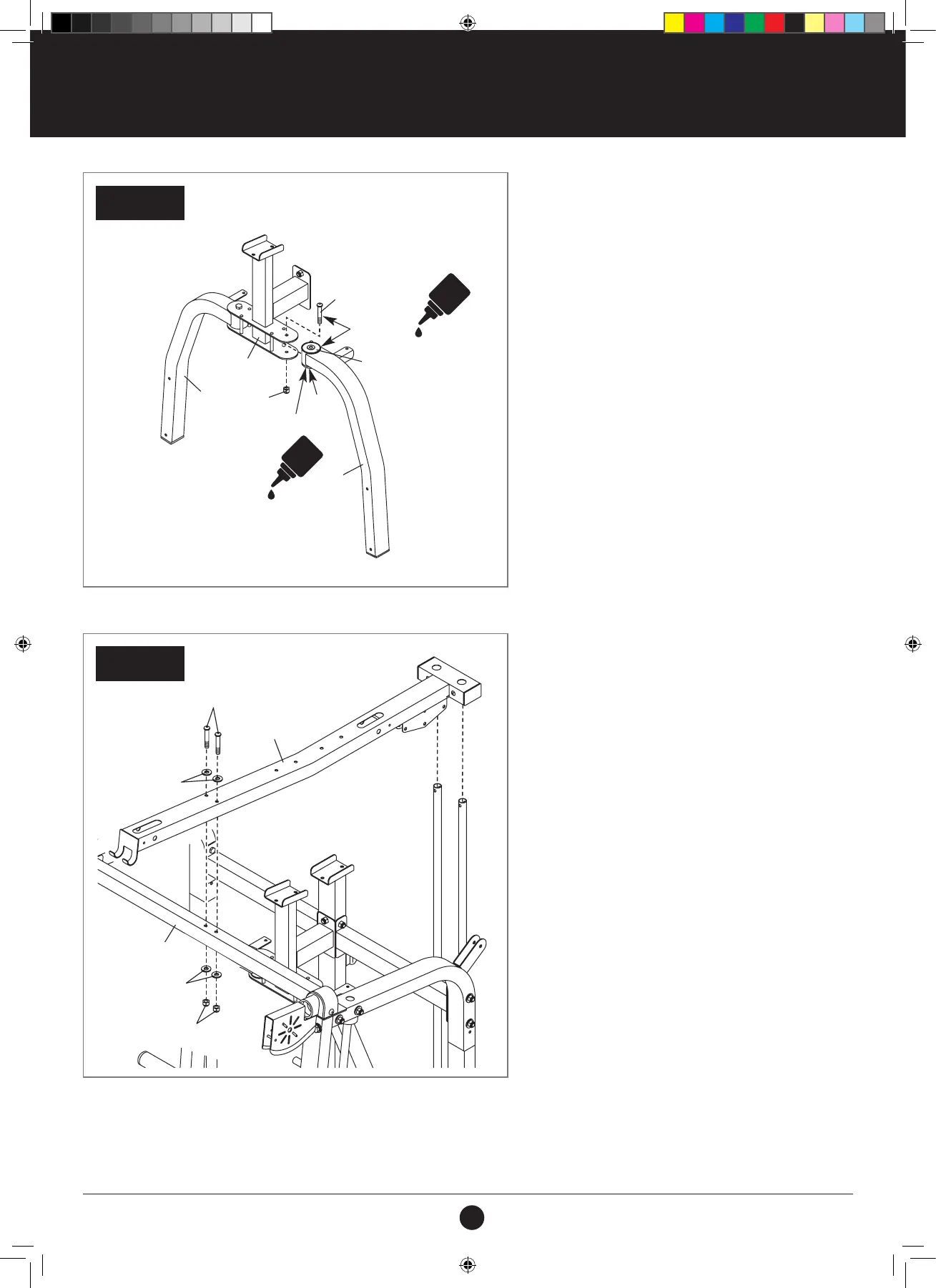

STEP 17:
1. Apply some of the included grease to an M10 x
85 mm Bolt (144) and to the two Arm Bushings
(31) in the Left Arm (10).
2. Attach the Left Arm (10) to the Arm Frame
(12) with the M10 x 85 mm Bolt (144) and an
M10 Locknut (79). Do not overtighten the
Locknut; the Left Arm must pivot easily.
3. Repeat this step with the Right Arm (11).
STEP 18:
1. Attach the Top Frame (16) to the Centre Top
Frame (14) with two M10 x 115 mm Bolts (101),
four M10 Washers (84), and two M10 Locknuts
(79). Do not tighten the Locknuts yet.
STEP 17
101
84
16
14
84
79
STEP 18
84
84
14
16
101
79
79
31
31
10
11
12
144
Grease
Grease
