ASSEMBLY STEPS

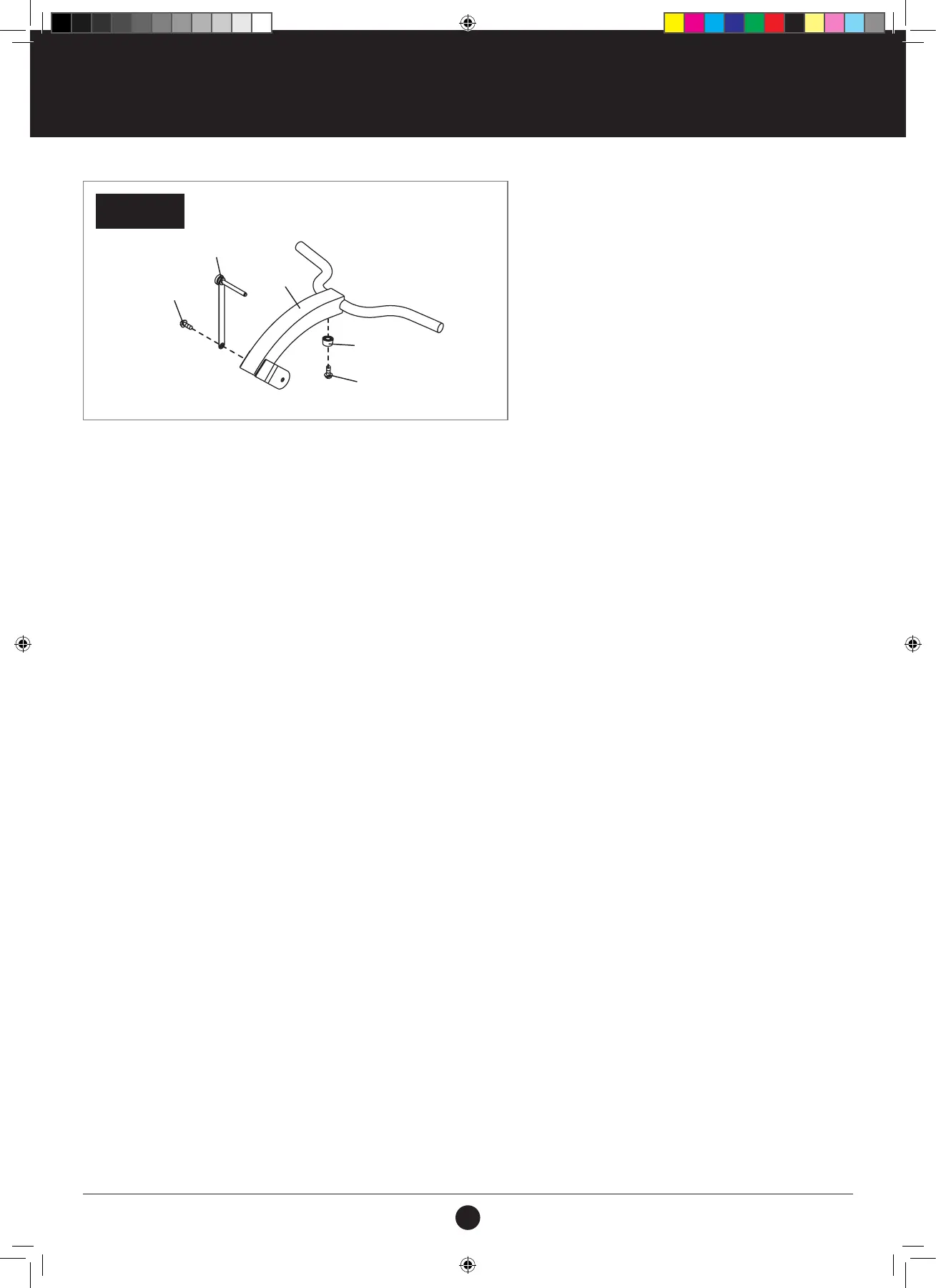

STEP 68:
1. Attach the Curl Bumper (141) to the Curl Bar (112)
with an M4 x 19 mm Self-tapping Screw (82).
2. Attach the Curl Pin (142) to the Curl Bar (112)
with an M4 x 19 mm Self-tapping Screw (82).
STEP 68
ATTENTION
1. Make sure that all parts are properly tightened.
2. The use of all remaining parts will be explained in ADJUSTMENTS AND ACCESSORIES,
starting on page 49.
3. Before using the weight bench, pull each cable a few times to make sure that the
cable moves smoothly. If a cable does not move smoothly, nd and correct the
problem.
IMPORTANT
1. If the cables are not properly installed, they may be damaged when heavy weight
is used. See the CABLE DIAGRAMS on pages 53 and 54 for proper cable routing.
2. If there is any slack in the cables, you will need to remove it by tightening the
cables. See MAINTENANCE on page 60.
112
142
141
82
82
ADJUSTMENTS AND ACCESSORIES
