Trojan PACE 360 - ASSEMBLY STEPS; STEP 1: REAR STABILIZER ATTACHMENT; STEP 2: FRONT STABILIZER ATTACHMENT

10168-8
4. ASSEMBLY STEPS
Instructions for assembly
• Unpackthecartonandusingthepartslistcheckthatallpartsareaccountedfor.
• Donotdisposeofthepackagingmaterialuntilassemblyiscompleted.
• AnAllenWrenchisprovidedforuseinassembly.

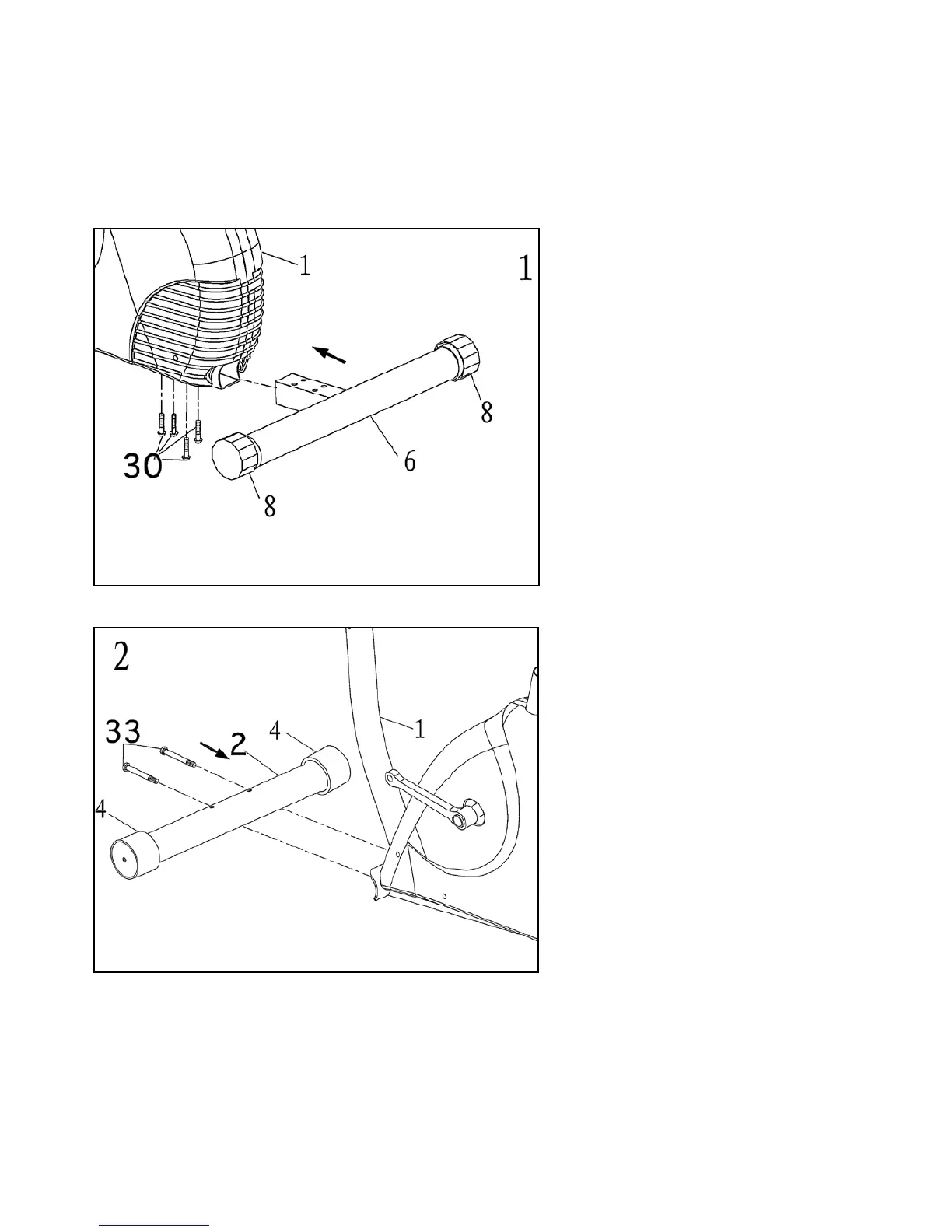

STEP 1
• InserttheRearStabilizer(6),whichincludes
2 Caps (8), into the Frame (1). Secure the Rear
Stabilizerwith4M8x60mmAllenHeadScrews
(30).
Note:youcanusethecaps(8)tolevelthebike.
STEP 2
• OrientatetheFrontStabilizer(2),whichincludes
Caps (4), with the large holes facing the Frame
(1).
•AttachtheFrontStabilizertotheFrame(1)with
2M8x73mmAllenHeadScrews(33).
