Trojan PACE 360 User Manual

10168-9

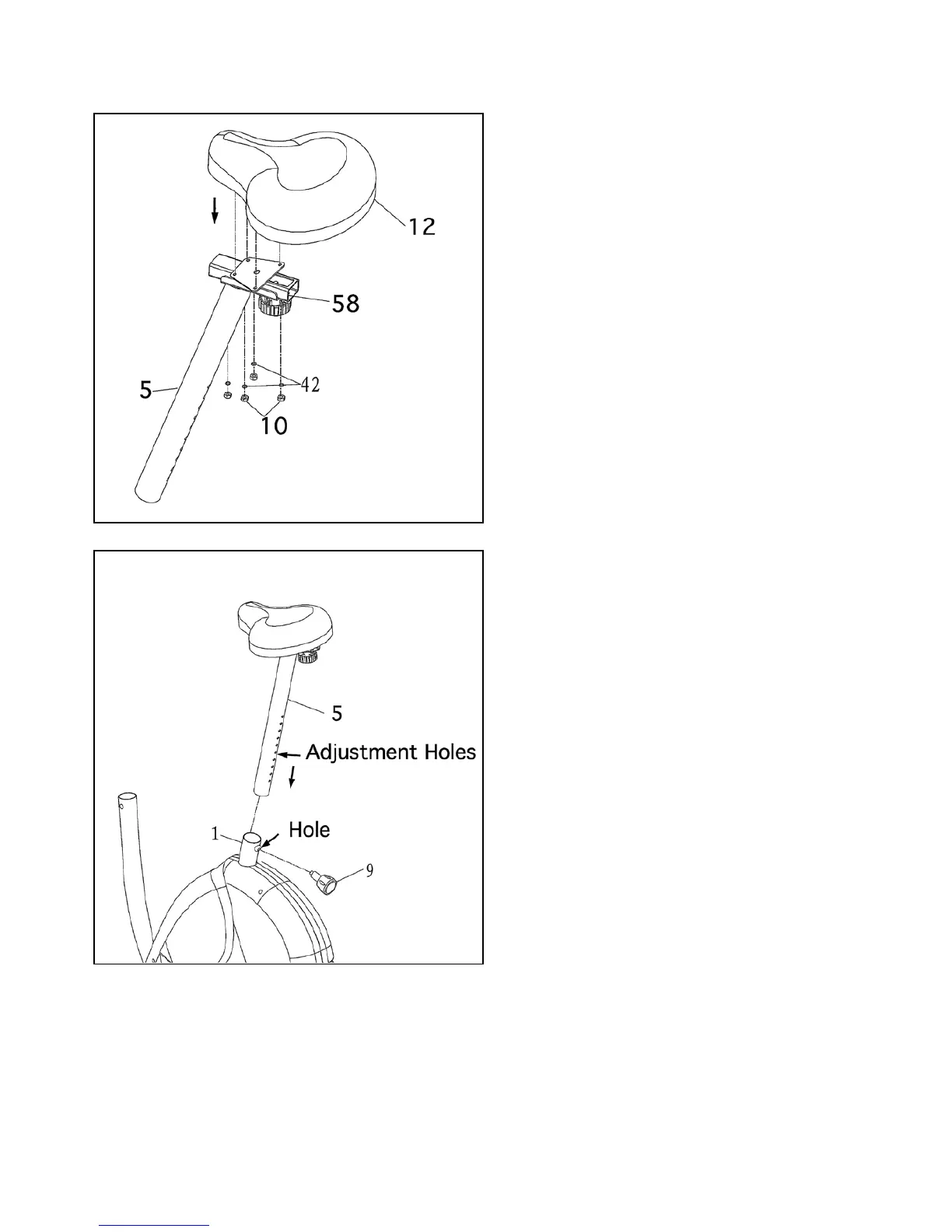

ASSEMBLY STEPS
STEP 3
• AttachtheSeat(12)totheSeatForwardandBack
Adjustment Assembly (58) on Seat Post (5). Use 4 M8 Split
Washers(42)and4M8NylonLocknuts(10).
Note:TheSplitWashers(42)andtheNylonLocknuts(10)are
pre-attached to the underside of the Seat (12).
STEP 4
• TurntheSeatQuickRelease(9)counterclockwiseand
remove it from the Frame (1). Insert the Seat Post (5) into
the Frame (1). Adjust the Seat Post to the desired height
andinserttheSeatQuickRelease(9)throughtheselected
holeintheFrame(1).TurntheSeatKnob(9)clockwise
untilitistight.MakesuretheSeatQuickReleaseisrmly
engaged in one of the adjustment holes in the Seat Post (5).
HOW TO ADJUST SEAT POST QUICK RELEASE
A) TIGHTEN QUICK RELEASE
• InsertQuickRelease(9)throughtheholeofSeatPost(5).
• TightenQuickRelease(9)inaclockwisedirection.Please
noteQuickReleaseKnobismarkedwith“+/-”onitssurface.
B) LOOSEN QUICK RELEASE
• LoosenQuickRelease(9)inacounterclockwisedirection.
• PullpinofQuickRelease(9)andmoveholeofSeatPost(5).
• PutthepinoftheQuickRelease(9)backandtightenina
clockwisedirection.
