Trojan PRO-X 460 - Assembly Step 1: Front and Rear Stabilisers; Assembly Preparation Guidelines; Front and Rear Stabiliser Attachment

10
ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.

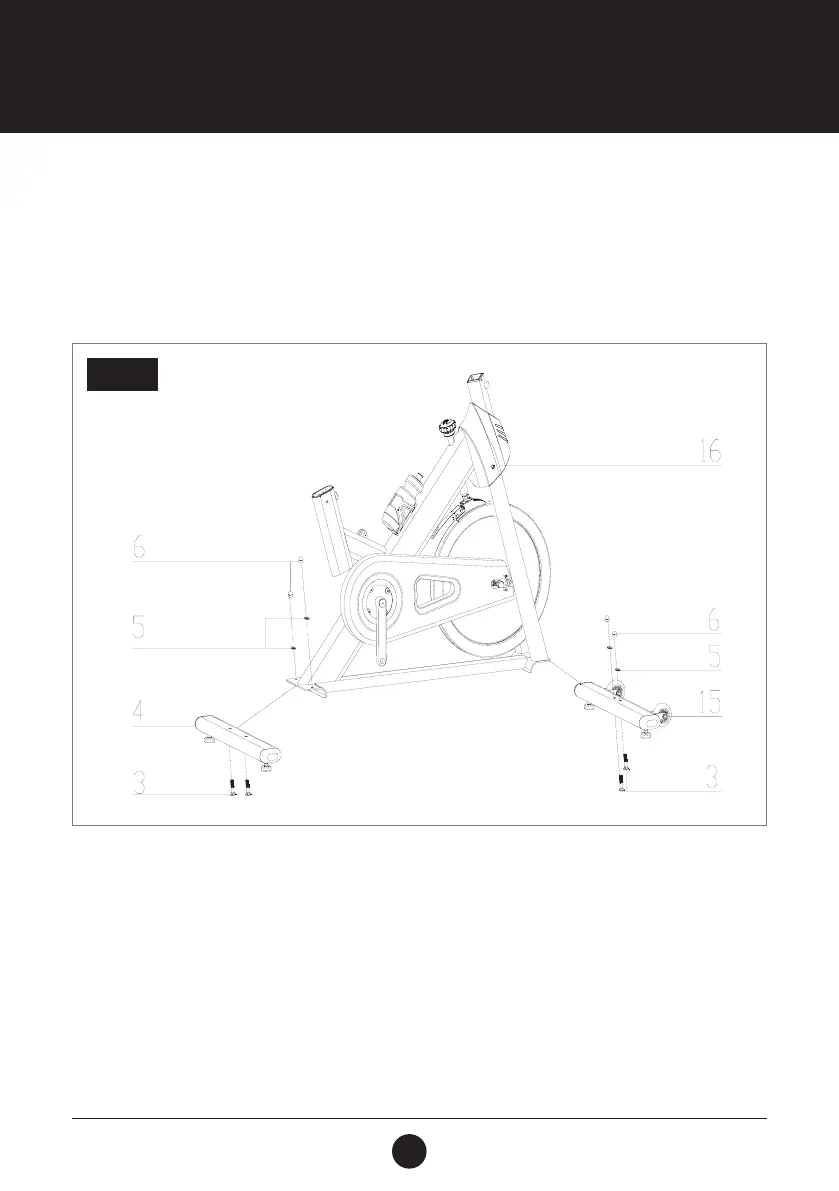

STEP 1: FRONT AND REAR STABILISERS ASSEMBLY
Attach the Front Stabiliser (15) to the Main Frame (16) using 2 sets of Flat Washers (GB / T 95 - 2002 8 mm) (5),
Domed Nut (GB / T 802 - 1988 M8) (H =16 mm) (6) and (M8 x 52 mm) Carriage Bolt (3).
Attach the Rear Stabiliser (4) to the Main Frame (16) using 2 sets of Flat Washers (GB / T 95 - 2002 8 mm) (5),
Domed Nut (GB / T 802 - 1988 M8) (H =16 mm) (6) and Carriage Bolt (GB / T12 - 1988 M8 mm x 52 mm) (3).
STEP 1
