3. ASSEMBLY STEPS
STEP 01

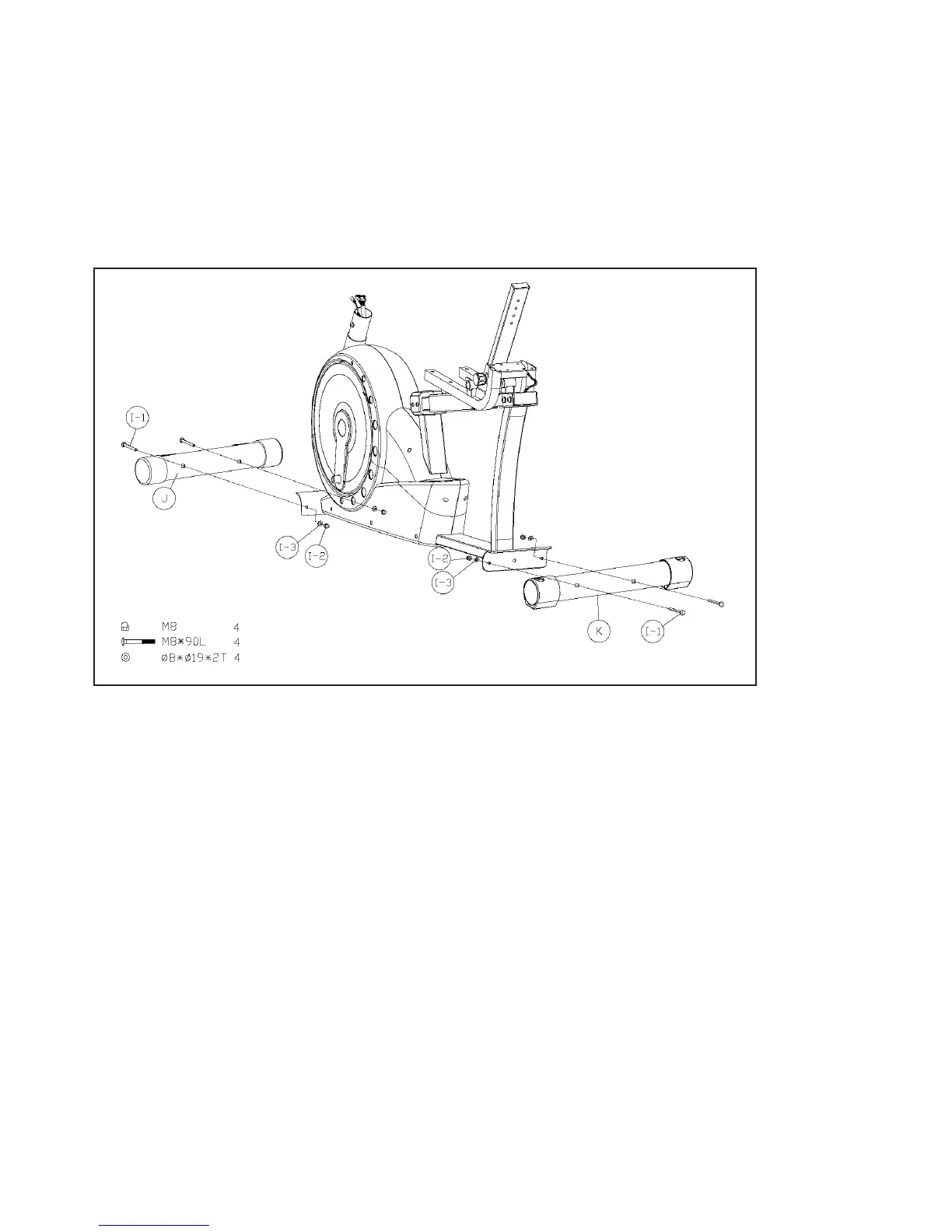

• Securely fasten the Front Stabiliser assembly (J) to the Base assembly using 2 Carriage Bolts (I-1), 2 Flat Washers (I-3),
and 2 Acorn Nuts (I-2).
Note: The transport wheels should be facing outward.
• Securely fasten the Rear Stabiliser assembly (K) to the back of the Base assembly using 2 Carriage Bolts (I-1),
2 Flat Washers (I-3), and 2 Acorn Nuts (I-2)
