1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.
1

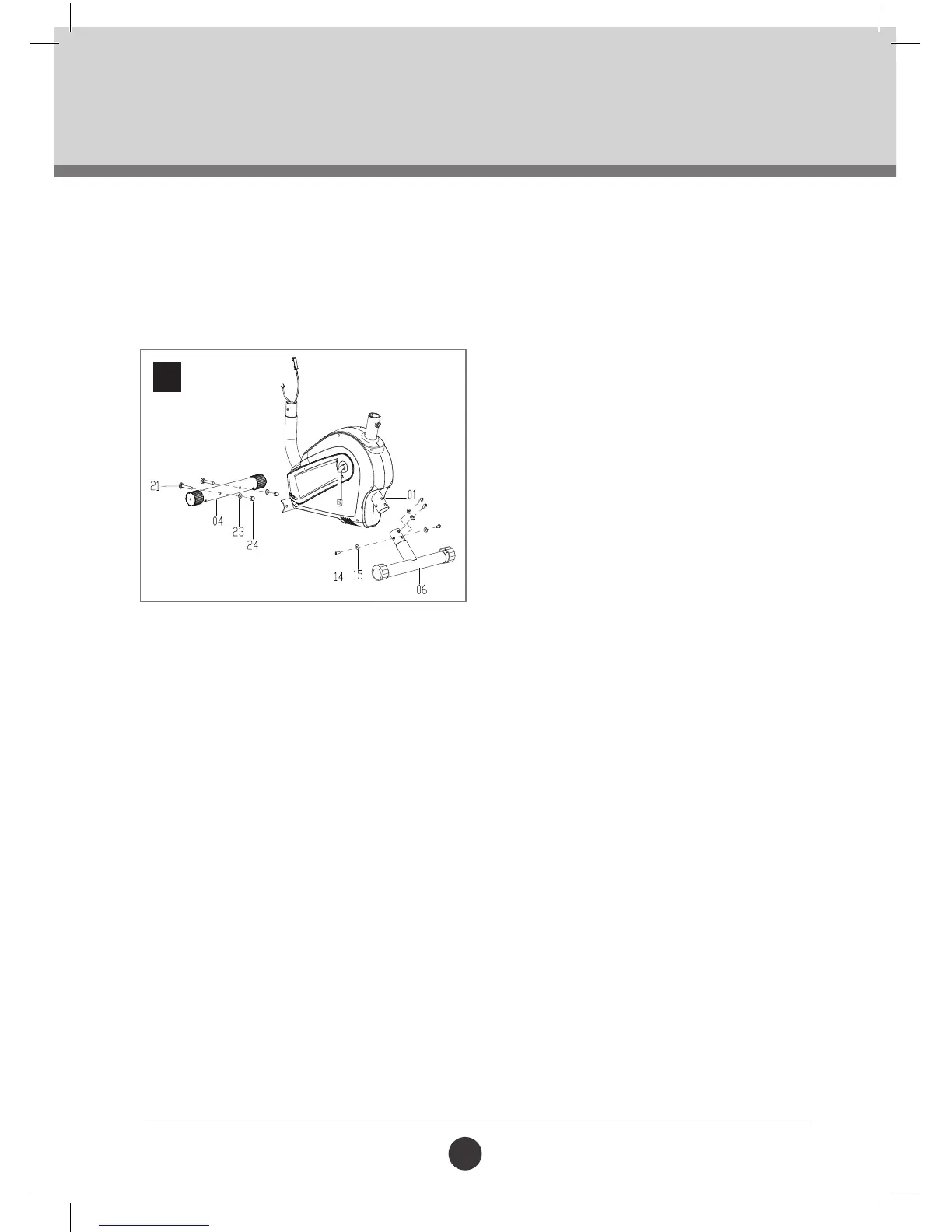

STEP 1: FRONT AND REAR
STABILIZERS INSTALLATION
Position the Front Stabilizer (4) in front of the Main
Frame (1) and align bolt holes.
Attach the Front Stabilizer (4) onto the front curve
of the Main Frame (1) with two M10 x 57
Bolts (21), two Ø25 x Ø10 x 1.5 Big Curve
Washers (23), and two M10 Cap Nuts (24).
Remove four M8 x 15 Bolts (14), four
Ø20 x Ø8.5 Big Curve Washers (15) from the rear
stabilizer (06).
Position the Rear Stabilizer (6) behind the Main
Frame (1) and align bolt holes.
Attach the Rear Stabilizer (6) onto the rear Main
Frame (1) with four M8 x 15
Bolts (14) and four Ø20 x Ø8.5 Big Curve Washers
(15) that were removed.
To Next Page
