Trojan SHAPE 210 - Console Assembly

14

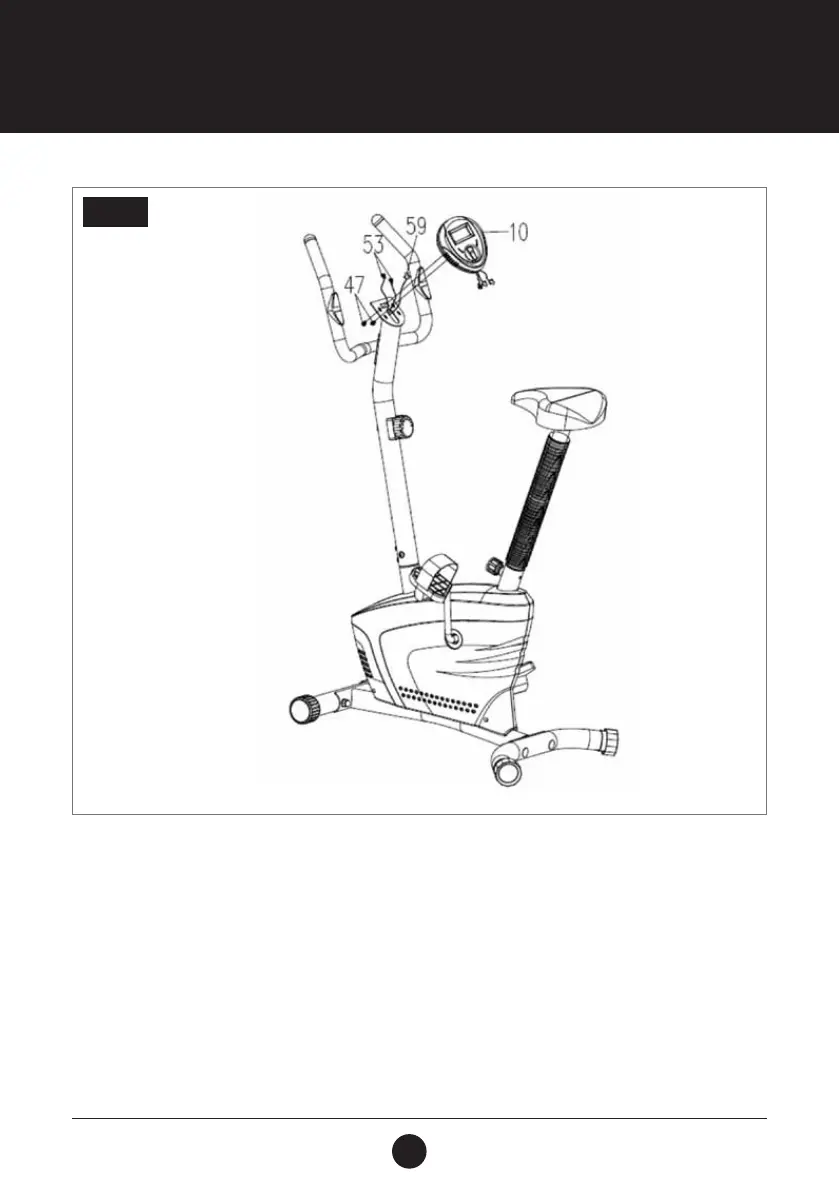

STEP 5: CONSOLE ASSEMBLY
Remove 2 Bolts (M5 x 10) (47) from the Console (10).
Connect the Hand Pulse Sensor with Wire (L = 750 mm) (53) and Middle Section Sensor Wire (59) to the wires
that come from the Console (10).
Attach the Console (10) onto the top end of the Handlebar Post (Ø50 x 1.5) (3) with the 2 Bolts (M5 x 10) (47)
that were previously removed.
ASSEMBLY STEPS
STEP 5
