ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.

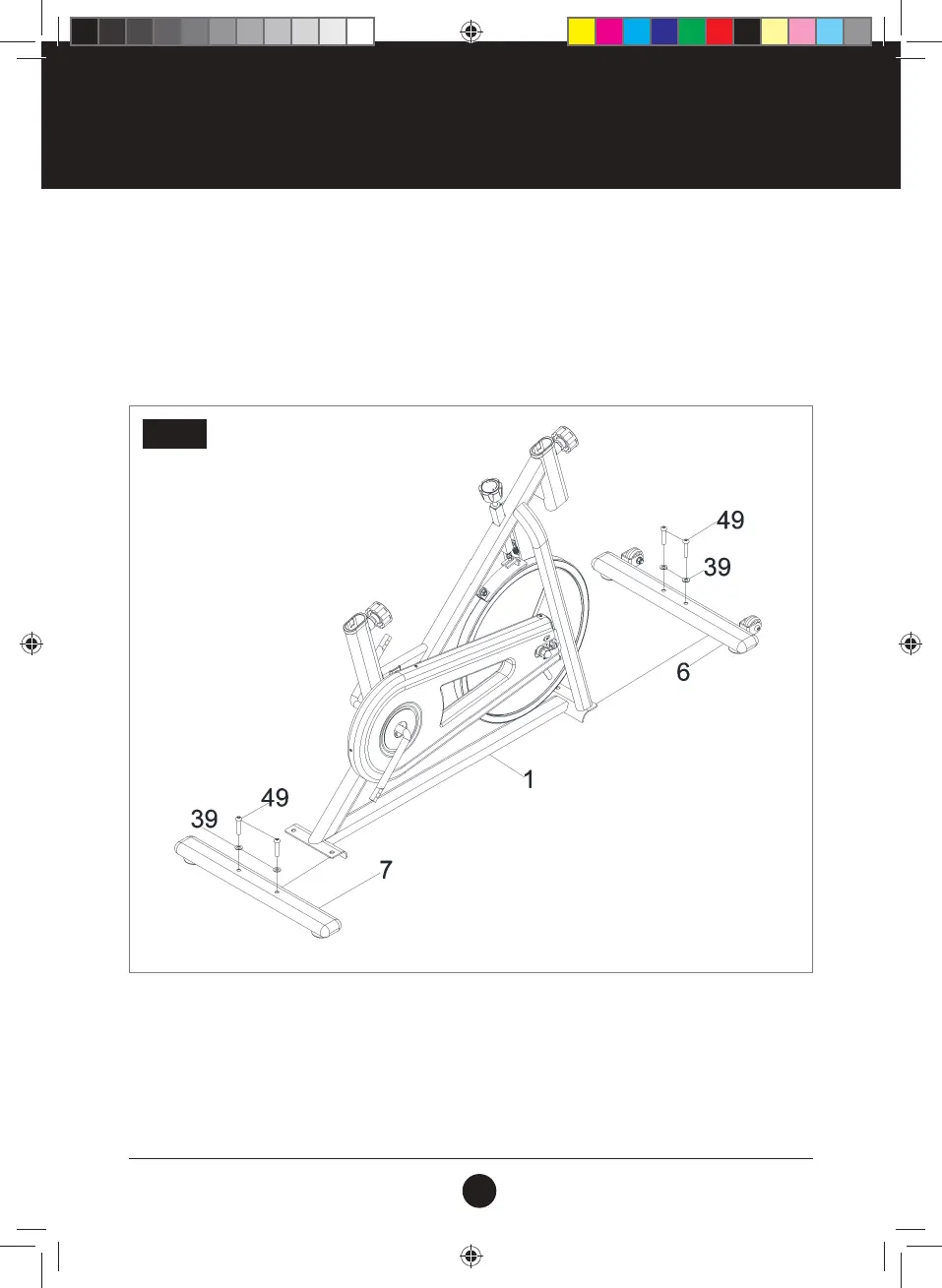

STEP 1: FRONT AND REAR STABILISERS INSTALLATION
Attach the Front Stabiliser (6) and Rear Stabiliser (7) to the Main Frame (1) using 4 Screws (M8 X 40 X 20) (49)
and 4 Flat Washers (D8.5 X Ø16 X 1.5) (35). Tighten and secure with Allen Wrench (S6) (26).
STEP 1
