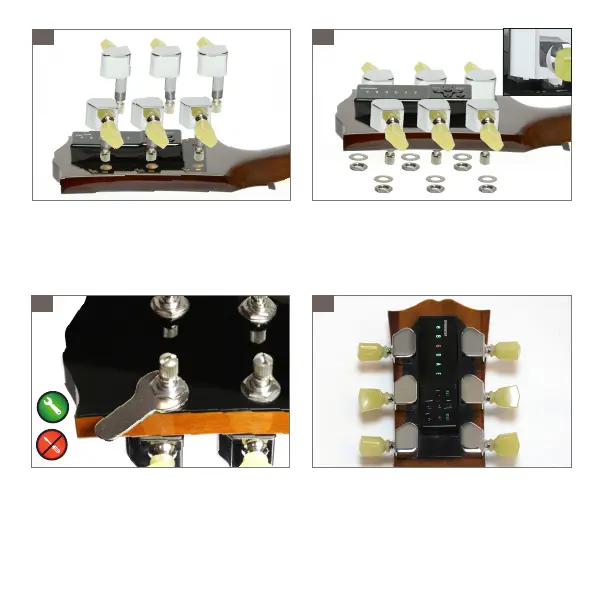

Make sure that all PCB drill holes line up with the
headstock’s tuner holes. Insert the RoboHeads
through the Tuner holes.
Apply the Washers and mount the Hex Nuts.
Use the wrench that comes with the set to tighten
the Hex Nuts onto the RoboHeads.
The recommended torque for the Hex Nuts of the
RoboHeads is 1.5 nm - 1.65 nm (13.27 in.lbs - 14.6
in-lbs)
Now the TronicalTune PLUS is ready for string up.
3
5
4
6
11
