EN7
convector TCH 1 E
Operation

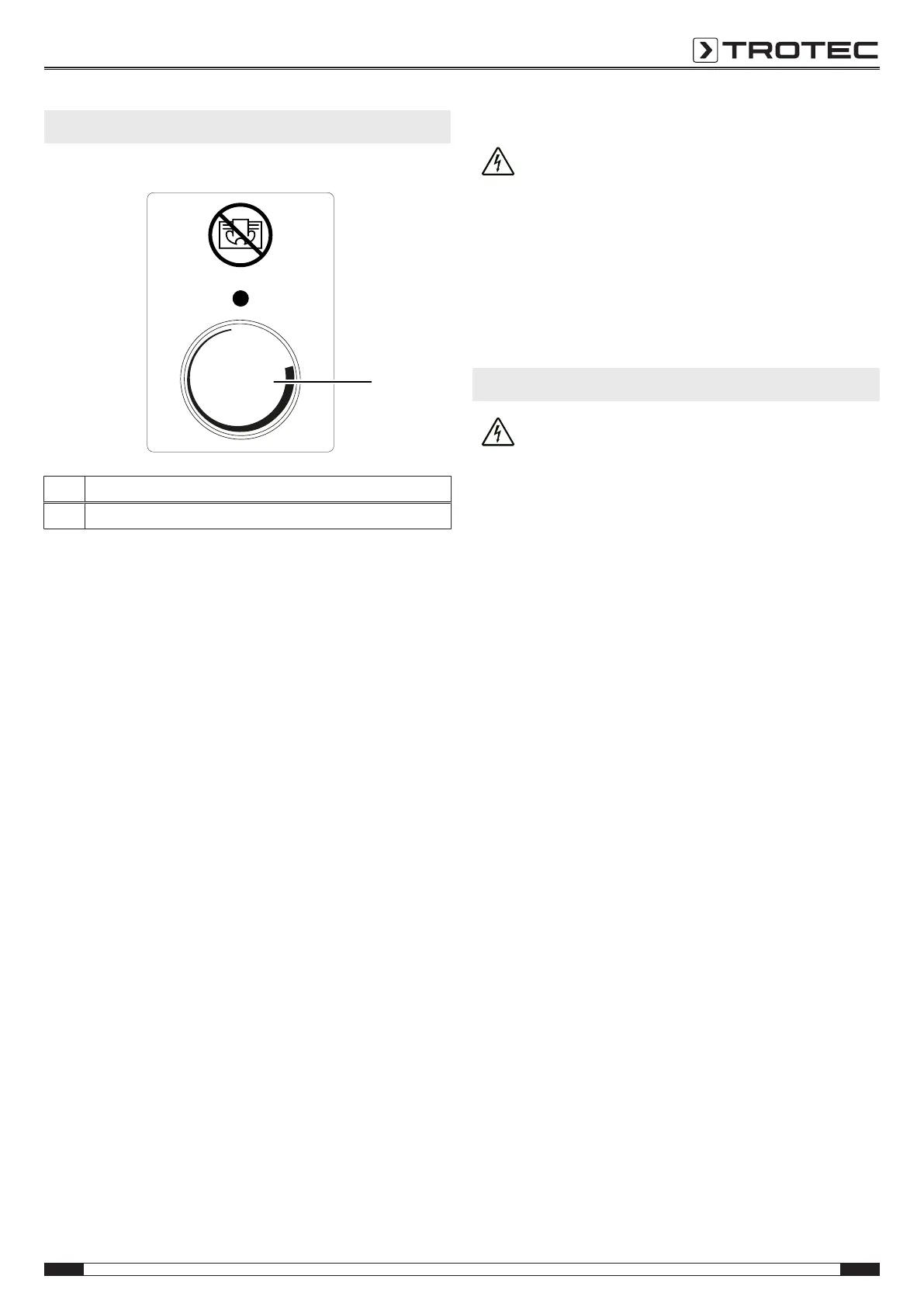

Operating elements
No.Designation
4Rotary switch room thermostat
Switching the device on
Once you have completely installed the device as described in
the Start-up chapter, you can switch it on.
1.Plug the device into a sufficiently fused socket.
2.Select the desired temperature via the stepless rotary
switch(4) of the room thermostat.
ð A clicking sound indicates that the room thermostat is
switched on.
ð The operating control lamp(5) lights up.
Setting the room thermostat
To find the ideal thermostat setting, please proceed as follows:
1.Select the desired temperature via the stepless rotary
switch(4) of the room thermostat.
The room thermostat controls the room temperature
automatically:
•When the set value is exceeded, the heating switches off.
•When the set value is fallen below, the heating
automatically switches back on.
Frost monitor function:
1.Starting at the minimum temperature setting, slightly turn
the infinitely variable rotary switch for the room
thermostat(4) clockwise. In this position, the room
thermostat switches on the heating automatically if the
room temperature drops below the frost protection
temperature.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
•Turn the room thermostat's infinitely variable rotary
switch(4) counter-clockwise all the way to the stop.
•Hold onto the mains plug while pulling the power cable out
of the mains socket.
•Allow the device to cool down completely.
•Clean the device according to the Maintenance chapter.
•Store the device according to the Storage chapter.
Errors and faults
Warning of electrical voltage
Tasks which require the device to be opened must
only be carried out by authorised specialist
companies or by Trotec.
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The device does not start:
•Check the power connection.
•Check the power cable and mains plug for damages.
•Check the on-site fusing.
•Check the room temperature. The room thermostat may
have switched off, because the desired room temperature
has been reached.
•The room thermostat might be defective. Have a defective
room thermostat replaced by a specialist electrical
company.
•Check whether the overheating protection has tripped (see
chapter Safety).
•Wait for 10minutes before restarting the device. If the
device is not starting, have the electrics checked by a
specialist company or by Trotec.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
The device still does not operate correctly after these
checks:
Please contact the customer service. If necessary, bring the
device to an authorised specialist electrical company or to
Trotec for repair.
