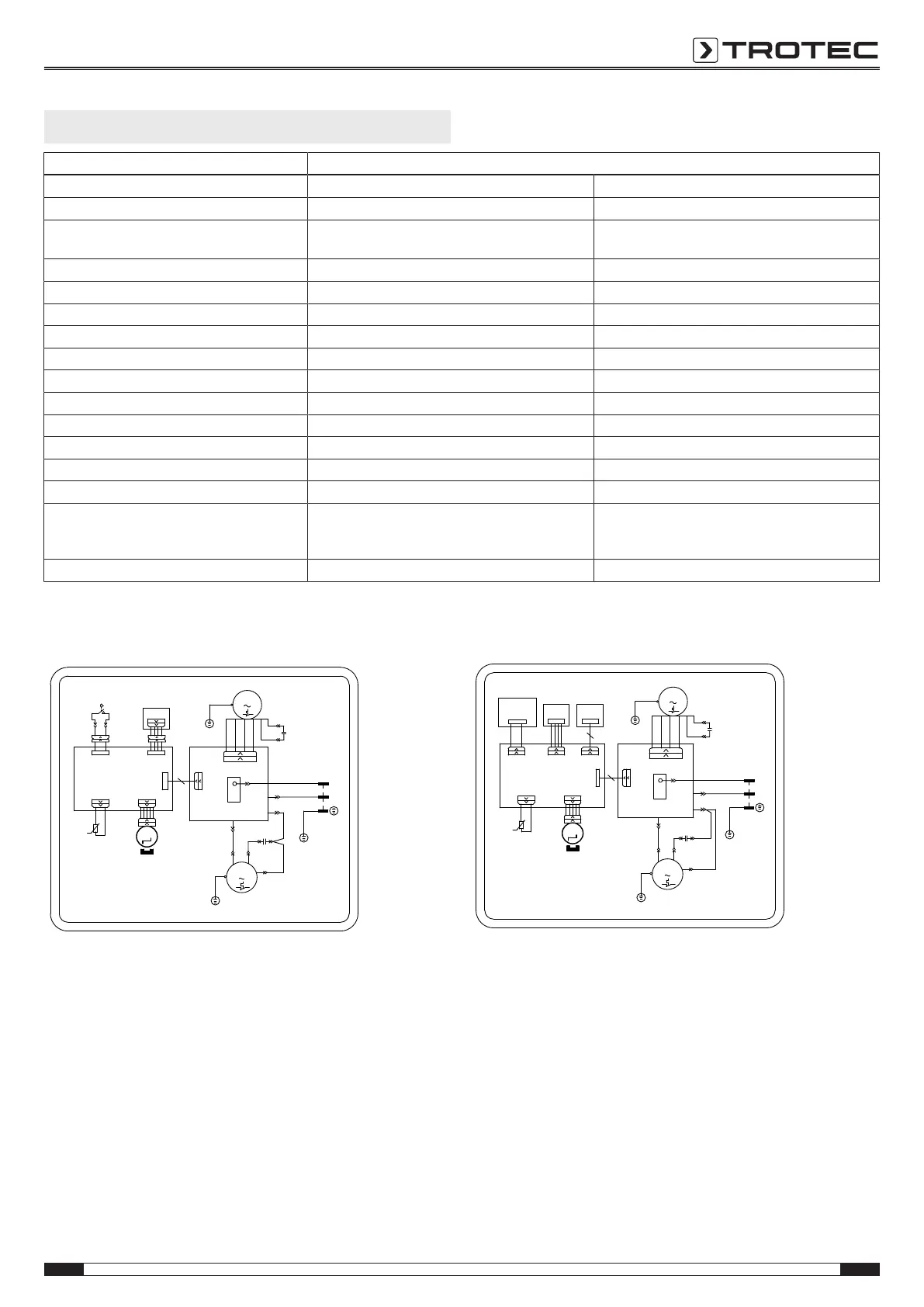

Technical annex
Technical data
Parameter Value
Model TTK 68 E TTK 69 E
Max. dehumidification performance 20 l / 24 h 20 l / 24 h
Dehumidification performance @ 30°C and 80%
RH
18.7 l / 24 h 18.7 l / 24 h
Air volume [m
3
/h] 105 - 115 - 130 105 - 115 - 130
Ambient temperature 5°C to 35°C 5°C to 35°C
Operating range relative humidity 30% to 80% RH 30% to 80% RH
Mains connection 1/N/PE~230 V / 50 Hz 1/N/PE~230 V / 50 Hz
Power consumption 340 W 350 W
Nominal current 1.9 A 1.9 A
Refrigerant R134a R134a
Amount of refrigerant 185 g 185 g
Condensation tank 4 l 4 l
Sound pressure level 43 dB(A) 43 dB(A)
Dimensions (length x width x height) 246 x 367 x 582 (mm) 210 x 345 x 575 (mm)
Minimum distance to walls and other objects above: 50cm minimum
in front: 20 cm minimum
behind: 20 cm minimum
above: 50cm minimum
in front: 20 cm minimum
behind: 20 cm minimum
Weight 15 kg 14 kg
Wiring diagram
TTK 68 E
S
R(M)
YE
BU
C2
BU
CN3
BU
BN
NO
COM
SA
COMP-GL
RT1
LIQUID LEVEL
AP1
CN1
CN5
AP2
CN4
HUMIDITY
CN2
SENSOR
TEMP.SENSOR
TUBE
AC-L
θ
FAN
MOTOR
SWITCH
ST
CN1
M2
CN3
PE
M1
YEGN
C1
PE
COMP.
YEGN
COMP.
RD
C
N1
PE
POWER
N
YEGN
BN
BU
L
N
MOTOR
STEPPING
K1
X1
BN
RD
X2
TTK 69 E
BU
C2
BU
YE
R(M)
S
K1
STEPPING
MOTOR
N
L
BU
BN
YEGN
N
POWER
PE
N1
C
RD
COMP.
YEGN
COMP.
PE
C1
YEGN
M1
PE
CN3
M2
CN1
ST
MOTOR
FAN
θ
AC-L
TUBE
TEMP.SENSOR
SENSOR
CN2
HUMIDITY
CN4
AP2
CN5
CN1
AP1
RT1
COMP-GL
CN3
SWITCH
PROXIMITY
AP3
CN6
BN
RD
