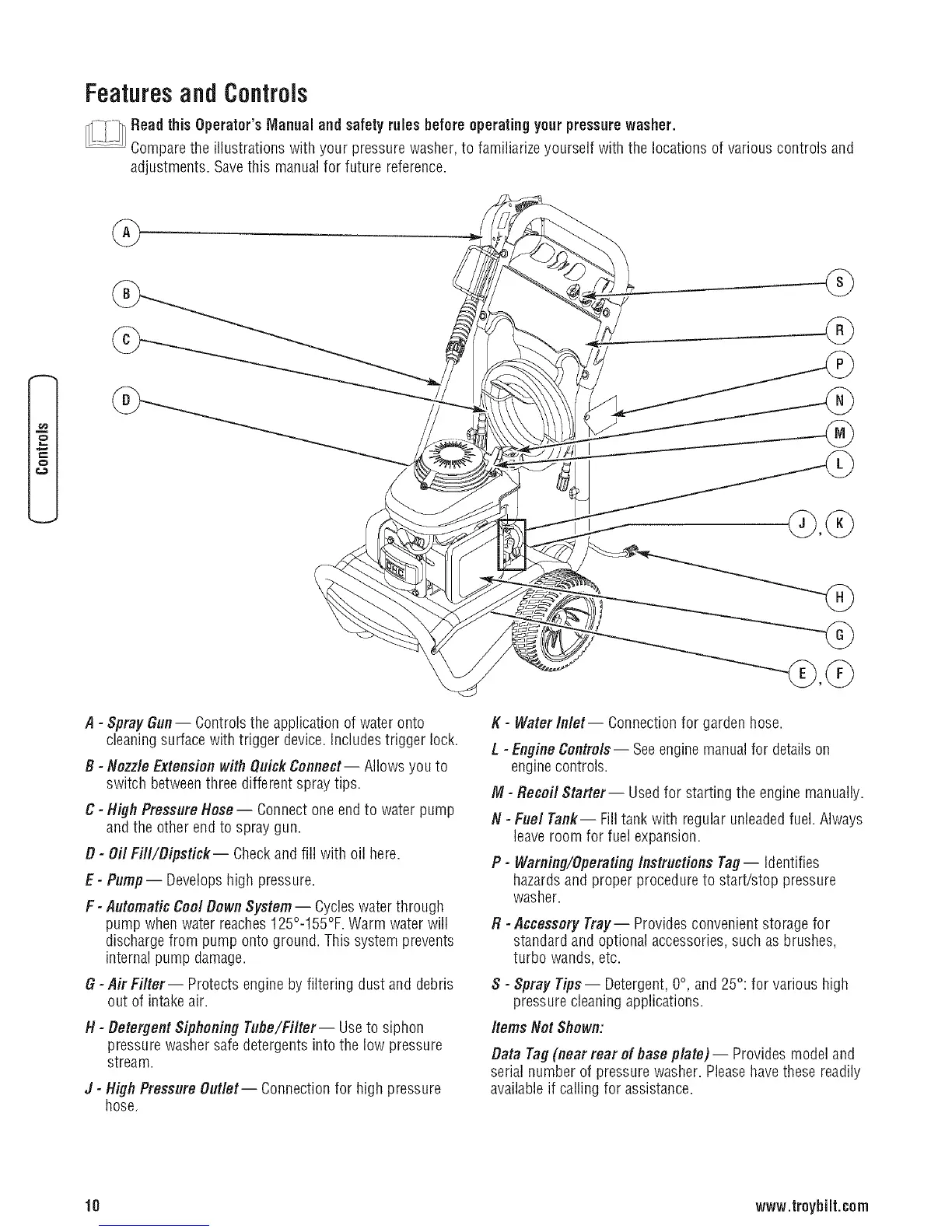

Featuresand Controls
_Read this Operator'sManual and safetyrules beforeoperatingyour pressurewasher.
Comparethe illustrations with your pressure washer, to familiarize yourself with the locations of various controls and
adjustments. Savethis manualfor future reference.
o
o
A - SprayGun-- Controlsthe application of water onto
cleaningsurfacewith trigger device, includes trigger lock.
B - Nozzle Extension withQuickConnect-- Allows you to
switch betweenthree different spray tips.
C- High PressureHose-- Connectone end to water pump
and the other end to spray gun.
B - Oil Fill/Dipstick-- Checkand fill with oil here.
E- Pump- Developshigh pressure.
F- AutomaticCool Down System-- Cycleswater through
pump whenwater reaches125°-155°F. Warm water will
dischargefrom pump onto ground. This system prevents
internalpump damage.
G- Air Filter-- Protects engine by filtering dust and debris
out of intake air.
H - Detergent Siphoning Tube/Filter-- Useto siphon
pressure washer safe detergents into the low pressure
stream.
J - High Pressure Outlet-- Connectionfor high pressure
hose,
K - WaterInlet-- Connectionfor garden hose.
L - Engine Controls-- Seeengine manualfor detailson
enginecontrols.
M - Recoil Starter-- Usedfor starting the engine manually.
fl - Fuel Tank-- Filltank with regular unleadedfuel. Always
leaveroom for fuel expansion.
P- Warning/Operating InstructionsTag- identifies
hazardsand proper procedureto start/stop pressure
washer.
R -Accessory Tray-- Provides convenient storage for
standard and optional accessories,such as brushes,
turbo wands, etc.
S - Spray Tips-- Detergent,0°, and 25°: for various high
pressurecleaning applications.
#eros Not Shown:
Data Tag (near rear of baseplate) -- Provides modeland
serial number of pressure washer. Pleasehavethese readily
availableif calling for assistance.
