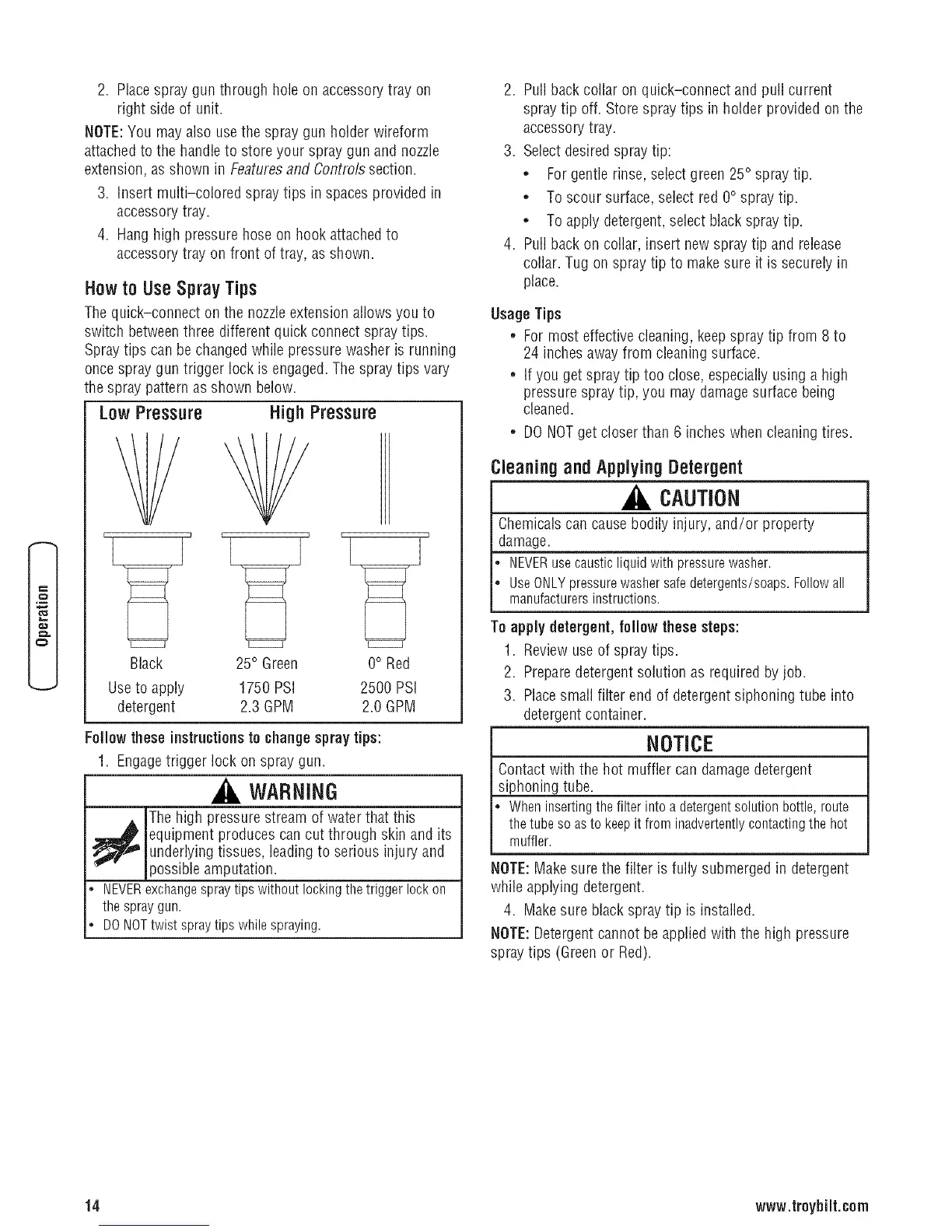

2. Placespray gun through hole on accessory tray on
right side of unit.
NOTE:You may also usethe spray gun holder wireform
attachedto the handleto store your spray gun and nozzle
extension, as shown in Featuresand Controls section.
3. Insert multi-colored spray tips in spacesprovided in
accessorytray.
4. Hanghigh pressure hoseon hook attachedto
accessorytray on front of tray, asshown.
Howto UseSpray Tips
Thequick-connect on the nozzleextension allows you to
switch betweenthree different quick connect spray tips.
Spraytips can be changed while pressure washer is running
once spray gun trigger lock is engaged.The spray tips vary
the spray pattern as shown below.
LowPressure High Pressure
_ r i t
L
Black 25° Green 0° Red
Useto apply 1750 PSI 2500 PSI
detergent 2.3 GPM 2.0 GPM
Fellow these instructionsto changespraytips:
1. Engagetrigger lock on spray gun.
WARNING
The high pressure stream of water that this
_ quipment produces can cut through skin and itsunderlyingtissues, leadingto serious injury and
possible amputation.
• NEVERexchangespraytipswithoutlockingthetriggerlockon
thespraygun.
• DONOTtwistspraytips whilespraying.
2. Pull backcollar on quick-connect and pull current
spray tip off. Store spray tips in holder provided on the
accessorytray.
3. Select desired spray tip:
• Forgentle rinse, selectgreen 25° spray tip.
• To scour surface, select red 0° spray tip.
• To apply detergent,select black spray tip.
4. Pull back on collar, insert new spray tip and release
collar. Tug on spray tip to make sure it is securelyin
place.
Usage Tips
• For most effective cleaning, keepspray tip from 8 to
24 inches away from cleaning surface.
• If you get spray tip too close, especiallyusing a high
pressure spray tip, you may damagesurface being
cleaned.
• DO NOTget closer than 6 inches when cleaning tires.
Cleaning and Applying Detergent
CAUTION
Chemicalscan causebodily injury, and/or property
damage.
NEVERusecausticliquidwith pressurewasher.
UseONLYpressurewashersafedetergents/soaps.Followall
manufacturersinstructions.
To apply detergent,fellowthese steps:
1. Review useof spray tips.
2. Preparedetergent solution as required by job.
3. Placesmall filter end of detergent siphoning tube into
detergent container.
NOTICE
Contact with the hot muffler can damagedetergent
siphoning tube.
Wheninsertingthe filterintoadetergentsolutionbottle,route
thetubesoasto keepit from inadvertentlycontactingthe hot
muffler.
NOTE:Makesure the filter is fully submerged in detergent
while applying detergent.
4. Make sure black spray tip is installed.
NOTE:Detergent cannot be applied with the high pressure
spray tips (Greenor Red).
14 www.troyhilt.cem
