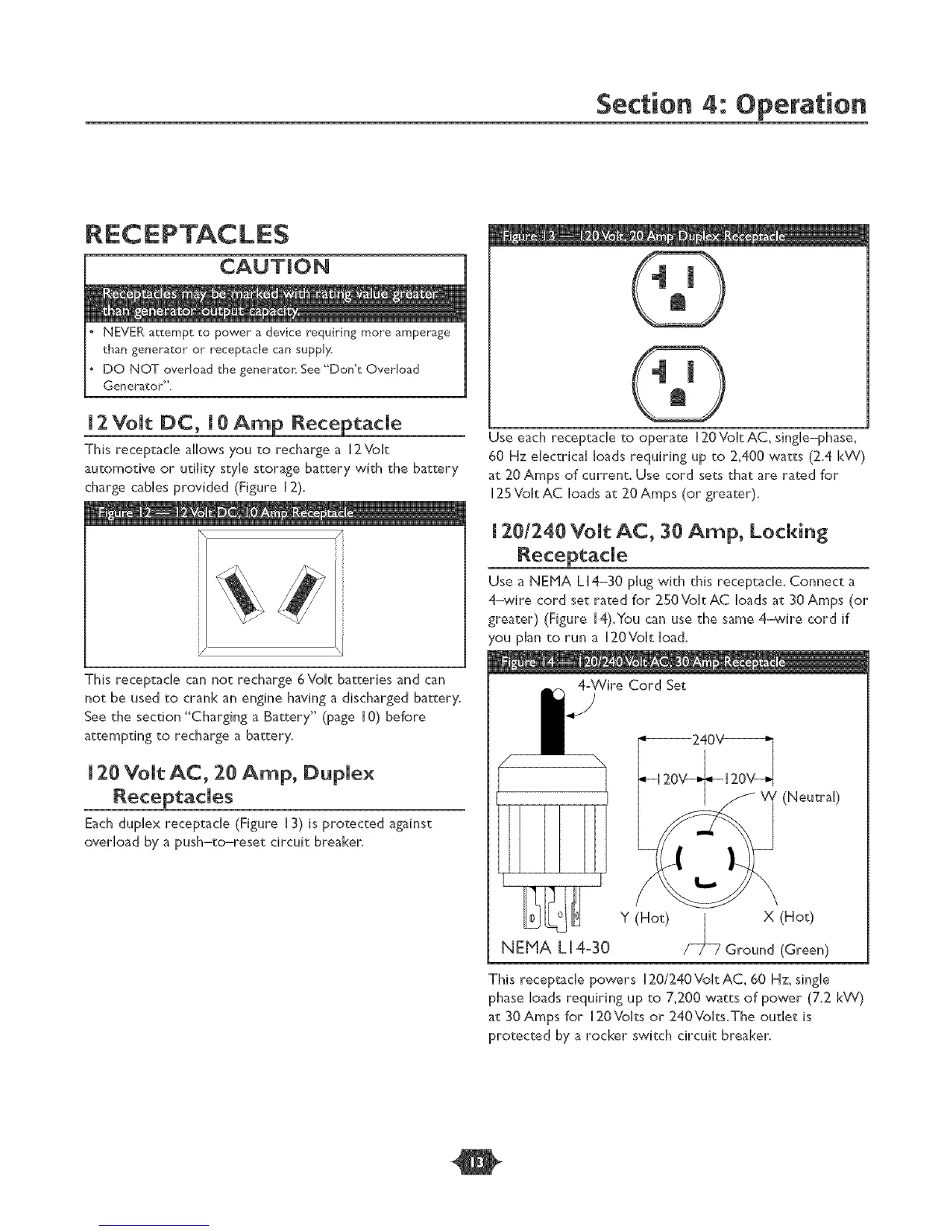

Section 4: Opecation
m
* NEVER attempt to power a device requiring more amperage
than generator or receptacle can supply.
. DO NOT overload the generator; See "Don't Overload
_enerator'.
12 Volt DC, l 0 Amp Receptacle
This receptacie allows you to recharge a i2Voit
automotive or udiity styie storage battery with the battery
charge cabies provided (Figure i2).
This receptacie can not recharge 6Voit batteries and can
not be used to crank an engine having a discharged battery.
See the section "Charging a Battery" (page i 0) before
attempting to recharge a battery.
[20 Volt AC, 20 Amp, Duplex
Each dupiex receptacie (Figure i 3) is protected against
overioad by a push-to-reset circuit breaker.
Use each receptacie to operate H20VoHtAC, singie-phase_
60 Hz electricai ioads requiring up to 2_400 watts (2.4 kW)
at 20 Amps of current. Use cord sets that are rated for
[ 25 Voit AC [oads at 20 Amps (or greater).
1201240 Volt AC, 30 Amp, Locking
Use a NEHA L14-30 plug with this receptacie. Connect a
4-wire cord set rated for 250Voit AC ioads at 30 Amps (or
greater) (Figure i4).You can use the same 4-wire cord if
you pian to run a i20Voit ioad.
4oWire Cord Set
.J
(Neutral)
Y (Hot) / X (Hot)
NEMA LI 4-30 /-7 [-7 Ground (Green)
This receptacle powers 120/240VoltAC, 60 Hz, single
phase loads requiring up to 7,200 watts of power (7.2 kW)
at 30 Amps for 120Volts or 240Volts.The oudet is
protected by a rocker switch circuit breaker.
