Features and Controls

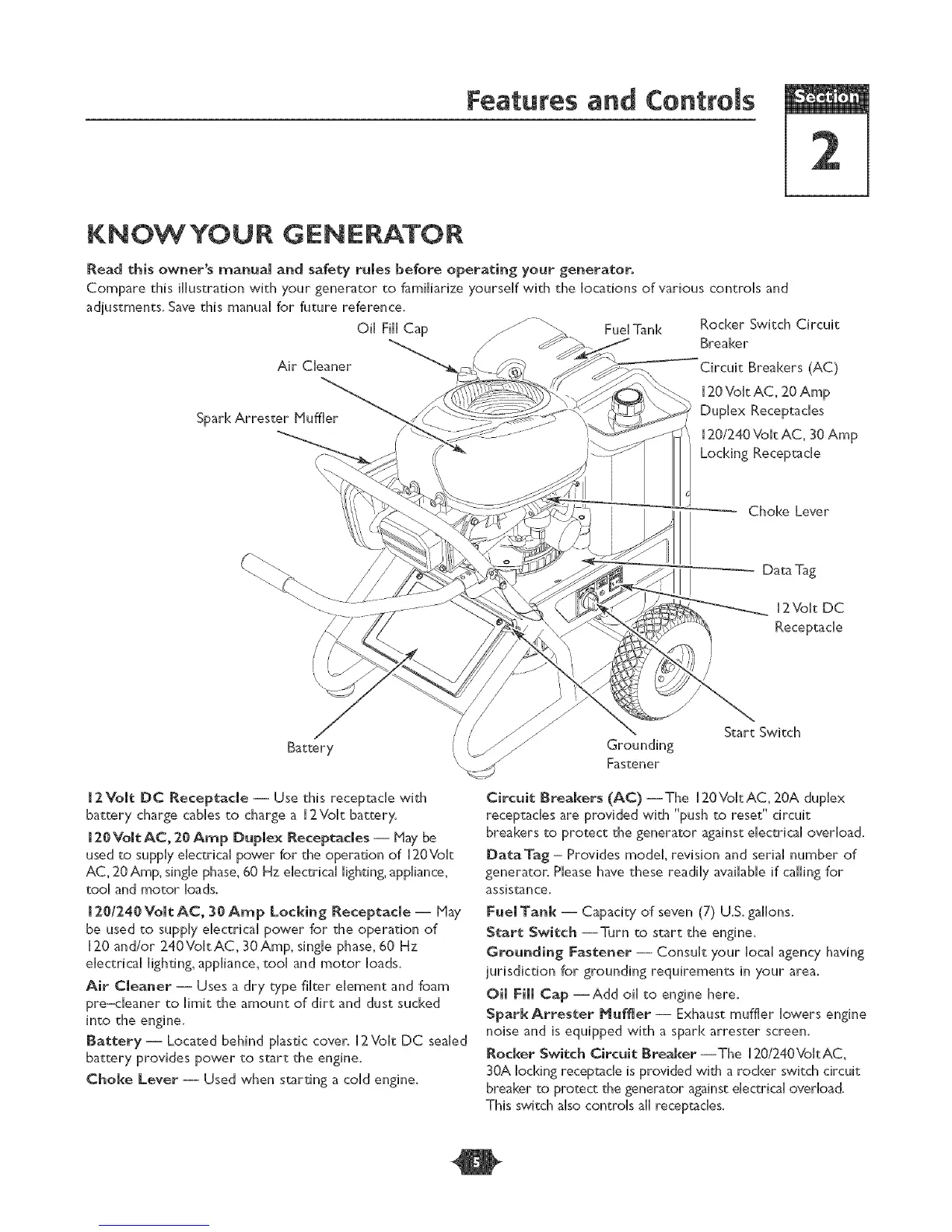

KNOWYOUR GENERATOR
Read this owner's manual and safety rules before operating your generator,
Compare this H[ustration with your generator to familiarize yourseff with the locations of various controls and
ad]ustments. Save this manual for future reference.
-_ Rocker Switch Circuit
Oil Fill Cap Fuel Tan[<
Breaker
Air Cleaner Circuit Breakers (AC)
[20 Vok AC, 20 Amp
Spar[<Arrester Muffler Duplex Receptacles
[20/240 Vok AC, 30 Amp
Locking Receptacle
Choke Lever
Data Tag
[2 Volt DC
Receptacle
/
Battery
[2Volt DC Receptacle -- Use this receptacle with
battery charge cables to charge a [ 2Volt battery.
[20 Volt AC, 20 Amp Duplex Receptacles -- Hay be
used to supply electrical power for the operation of [20Volt
AC, 20 Amp, single phase, 60 Hz electrical lighting appliance,
tool and motor loads.
[ 20/240 Volt AC, 30 Amp Locking Receptacle- Hay
be used to supply electrical power for the operation of
120 and/or 240VoltAC, 30 Amp, single phase, 60 Hz
electrical lighting, appliance, tool and motor loads.
Air Cleaner -- Uses a dry type filter element and foam
pre-deaner to limit the amount of dirt and dust sucked
into the engine.
Battery- Located behind plastic cover. 12Vok DC sealed
battery provides power to start the engine.
Choke Lever -- Used when starting a cold engine.
Grounding
Fastener
Start Switch
Circuit Breakers (AC) --The [20Vo[tAC, 20A duplex
receptacles are provided with "push to reset" circuit
breakers to protect the generator against electrical overload.
DataTag - Provides model, revision and serial number of
generator. Please have these readily available if calling for
assistance.
Pue[ Tank -- Capacity of seven (7) U.S. gallons.
Start Switch --Turn to start the engine.
Grounding Pastener -- Consult your local agency having
]ur[sdiction for grounding requirements in your area.
Oil Pill Cap --Add oil to engine here.
Spark Attester Muffler -- Exhaust muffler lowers engine
noise and is equipped with a spark attester screen.
Rocker Switch Circuit Breaker --The 120/240VokAC_
30A locking receptacle is provided with a rocker switch circuit
breaker to protect the generator against electrical oveHoad.
This switch also controls all receptacles.
