Troy-Bilt 52064 - Page 22

I Model 52063 & 52064

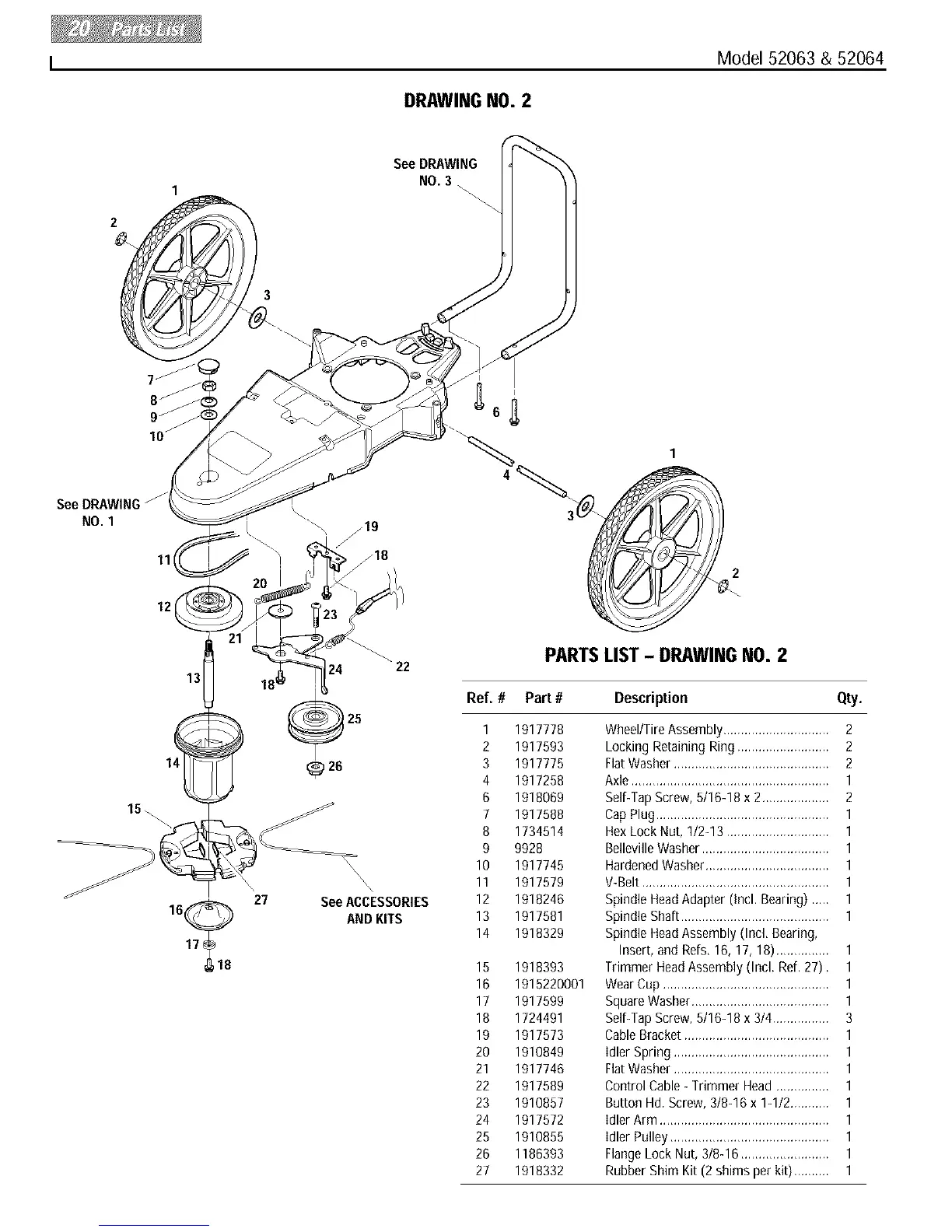

DRAWING NO. 2
See DRAWING
NO. 3 .
NO. 1
11
12
2
15\
13
\
27
17
24 22
25
_26
\\
\\\
See ACCESSORIES
AND KITS
PARTSLIST- DRAWINGNO. 2
Ref. # Part# Description Qty,
1 1917778
2 1917593
3 1917775
4 1917258
6 1918069
7 1917588
8 1734514
9 9928
10 1917745
11 1917579
12 1918246
13 1917581
14 1918329
15 1918393
16 1915220001
17 1917599
18 1724491
19 1917573
20 1910849
21 1917746
22 1917589
23 1910857
24 1917572
25 1910855
26 1186393
27 1918332
Wheel/TireAssembly.............................. 2
Locking Retaining Ring .......................... 2
FlatWasher ............................................ 2
Axle ........................................................ 1
Self-TapScrew, 5/16-18 x 2 ................... 2
CapPlug................................................. 1
HexLock Nut, 1/2-13 ............................. 1
Belleville Washer .................................... 1
HardenedWasher................................... 1
V-Belt..................................................... 1
SpindleHeadAdapter (Incl. Bearing) ..... 1
SpindleShaft.......................................... 1
SpindleHeadAssembly (Incl, Bearing,
Insert, and Refs, 16, 17, 18)............... 1
Trimmer HeadAssembly (Incl. Refl 27). 1
WearCup ............................................... 1
SquareWasher....................................... 1
Self-TapScrew, 5/16-18 x 3/4 ................ 3
CableBracket......................................... 1
idler Spring ............................................ 1
FlatWasher ............................................ 1
Control Cable- Trimmer Head ............... 1
Button Hd. Screw, 3/8-16 x 1-1/2........... 1
idler Arm ................................................ 1
idler Pulley............................................. 1
FlangeLock Nut, 3/8-16 ......................... 1
Rubber Shim Kit (2 shims per kit) .......... 1
