Model 52063 & 52064 I
11

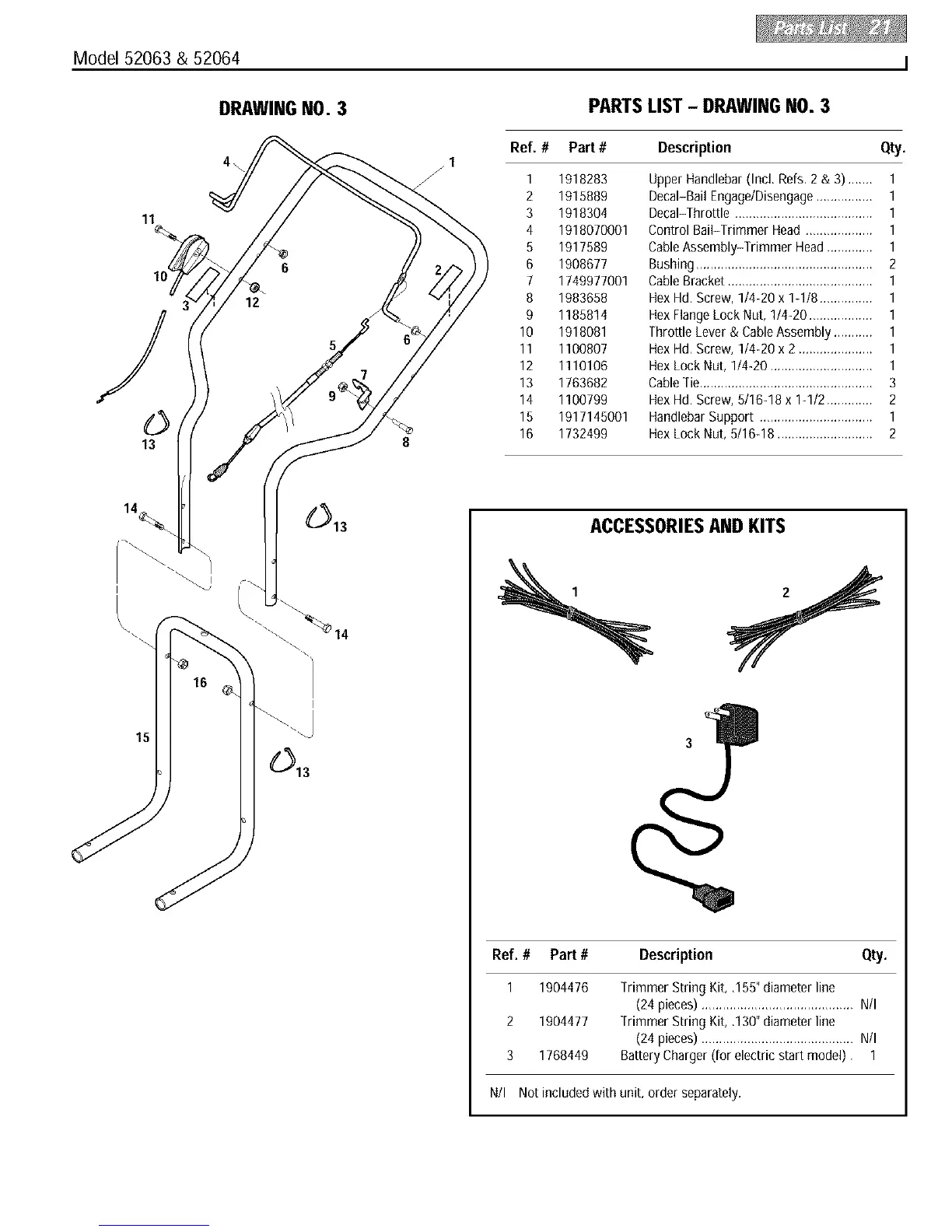

PARTSLIST- DRAWINGNO. 3
Ref. # Part# Description Qty.
1 1918283
2 1915889
3 1918304
4 1918070001
5 1917589
6 1908677
7 1749977001
8 1983658
9 1185814
10 1918081
11 1100807
12 1110106
13 1763682
14 1100799
15 1917145001
16 1732499
UpperHandlebar (Incl, Refs,2 & 3) ....... 1
Decal-Bail Engage/Disengage................ 1
Decal-Throttle ....................................... 1
Control Bail-Trimmer Head ................... 1
CableAssembly-Trimmer Head............. 1
Bushing.................................................. 2
CableBracket ......................................... 1
HexHd, Screw, 1/4-20 x 1-1/8 ............... 1
HexFlangeLock Nut, 1/4-20 .................. 1
Throttle Lever & CableAssembly ........... 1
HexHd, Screw, 1/4-20 x 2 ..................... 1
HexLock Nut, 1/4-20 ............................. 1
CableTie................................................. 3
HexHd, Screw, 5/16-18 x 1-1/2 ............. 2
HandlebarSupport ................................ 1
HexLock Nut, 5/16-18 ........................... 2
16
15
_'_13
ACCESSORIESANDKITS
Ref. # Part # Description Qty.
1 1904476 Trimmer String Kit, ,155"diameter line
(24 pieces) ........................................... Nil
2 1904477 Trimmer String Kit, ,130"diameter line
(24 pieces) ........................................... Nil
3 1768449 Battery Charger(for electric start model), 1
Nil Not included with unit, order separately.
