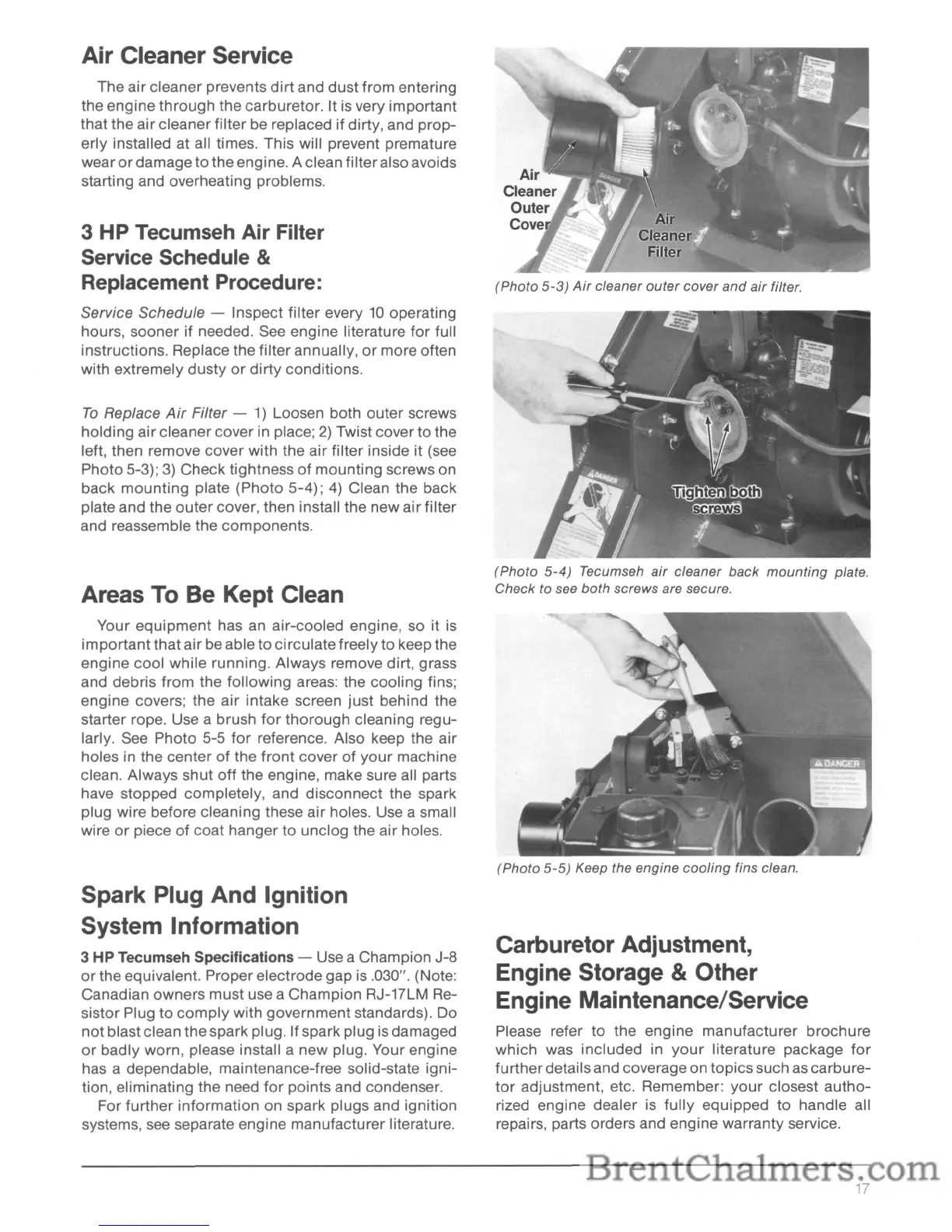

Air Cleaner Service
The air cleaner prevents
dirt
and dust from entering
the engine
through
the carburetor. It
is
very important
that the air cleaner filter be replaced if dirty, and prop-
erly installed at all times. This will prevent premature
wear
or
damage
to
the engine. A clean fi Iteralso avoids
starting and overheating problems.
3
HP
Tecumseh Air Filter
Service Schedule
&
Replacement Procedure:
Service Schedule - Inspect filter every
10
operating
hours, sooner if needed. See engine literature
for
full
instructions. Replace the filter annually,
or
more often
with extremely dusty
or
dirty
conditions.
To
Replace
Air
Filter -
1)
Loosen both outer screws
holding air cleaner cover in place;
2)
Twist cover to the
left, then remove cover with the air filter inside it (see
Photo 5-3); 3) Check tightness
of
mounting screws on
back
mounting
plate (Photo
5-4);
4)
Clean the back
plate and the
outer
cover, then install the new
air
filter
and reassemble the components.
Areas To Be Kept Clean
Your
equipment
has an air-cooled engine, so it is
important
that
air be able to circulate freely
to
keep the
engine cool while running. Always remove dirt, grass
and debris from the following areas: the cooling fins;
engine covers; the
air
intake screen just behind the
starter rope. Use a brush
for
thorough
cleaning regu-
larly. See Photo 5-5
for
reference. Also keep the air
holes in the center
of
the
front
cover
of
your
machine
clean. Always shut
off
the engine, make sure all parts
have stopped completely, and disconnect the spark
plug wire before cleaning these air holes. Use a small
wire
or
piece
of
coat hanger to unclog the
air
holes.
Spark Plug And Ignition
System Information
3
HP
Tecumseh Specifications - Use a Champion J-8
or
the equivalent. Proper electrode gap
is
.030". (Note:
Canadian owners must use a Champion RJ-17LM Re-
sistor Plug
to
comply
with government standards). Do
not blast clean the spark plug. If spark plug is damaged
or
badly worn, please install a new plug. Your engine
has a dependable, maintenance-free solid-state igni-
tion, eliminating the need
for
points and condenser.
For further information on spark plugs and ignition
systems, see separate engine manufacturer literature.
(Photo
5-3)
Air
cleaner
outer
cover
and
air filter.
(Photo
5-4)
Tecumseh air cleaner back
mounting
plate.
Check to see both screws are secure.
(Photo
5-5)
Keep the engine
cooling
fins clean.
Carburetor Adjustment,
Engine Storage
&Other
Engine Maintenance/Service
Please refer to the engine manufacturer brochure
which was included in
your
literature package
for
further detailsand coverage on topics such
as
carbure-
tor
adjustment, etc. Remember:
your
closest
autho-
rized engine dealer is
fully
equipped to handle all
repairs, parts orders and engine warranty service.
17
