8 Section 3— ASSembly & Set-Up
Chute Assembly (If Equipped w/ Electric Chute Control)

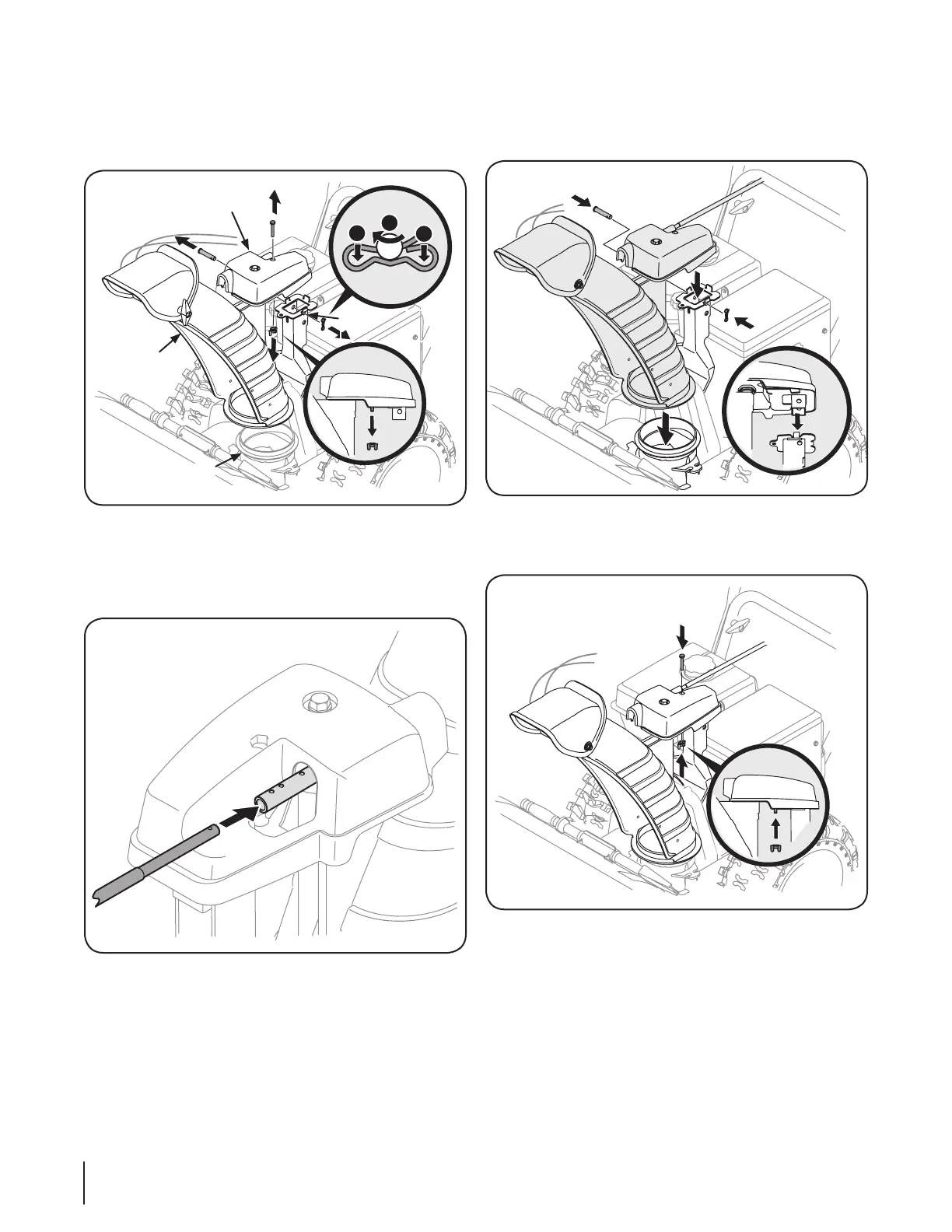

1. Remove cotter pin, wing nut and hex screw from chute
control head. Remove clevis pin and bow-tie cotter pin
from chute support bracket. See Figure 3-3.
1
1
2
Chute Control Head
Chute
Chute Support
Bracket
Chute Base
Figure 3-3
2. Insert the round end of the chute control rod into the chute
control head. Push rod as far into chute control head as
possible, keeping the holes in the rod pointing upward. See
Figure 3-4.
Figure 3-4
3. Place chute onto chute base and ensure chute control rod
is positioned under the handle panel. Secure chute control
head to chute support bracket with clevis pin and bow-tie
cotter pin removed in step 1. See Figure 3-5.
Figure 3-5
4. Finish securing chute control head by installing hex bolt
and wing nut. See Figure 3-6.
Figure 3-6
To Next Page
