8 Section 3— ASSembly & Set-Up

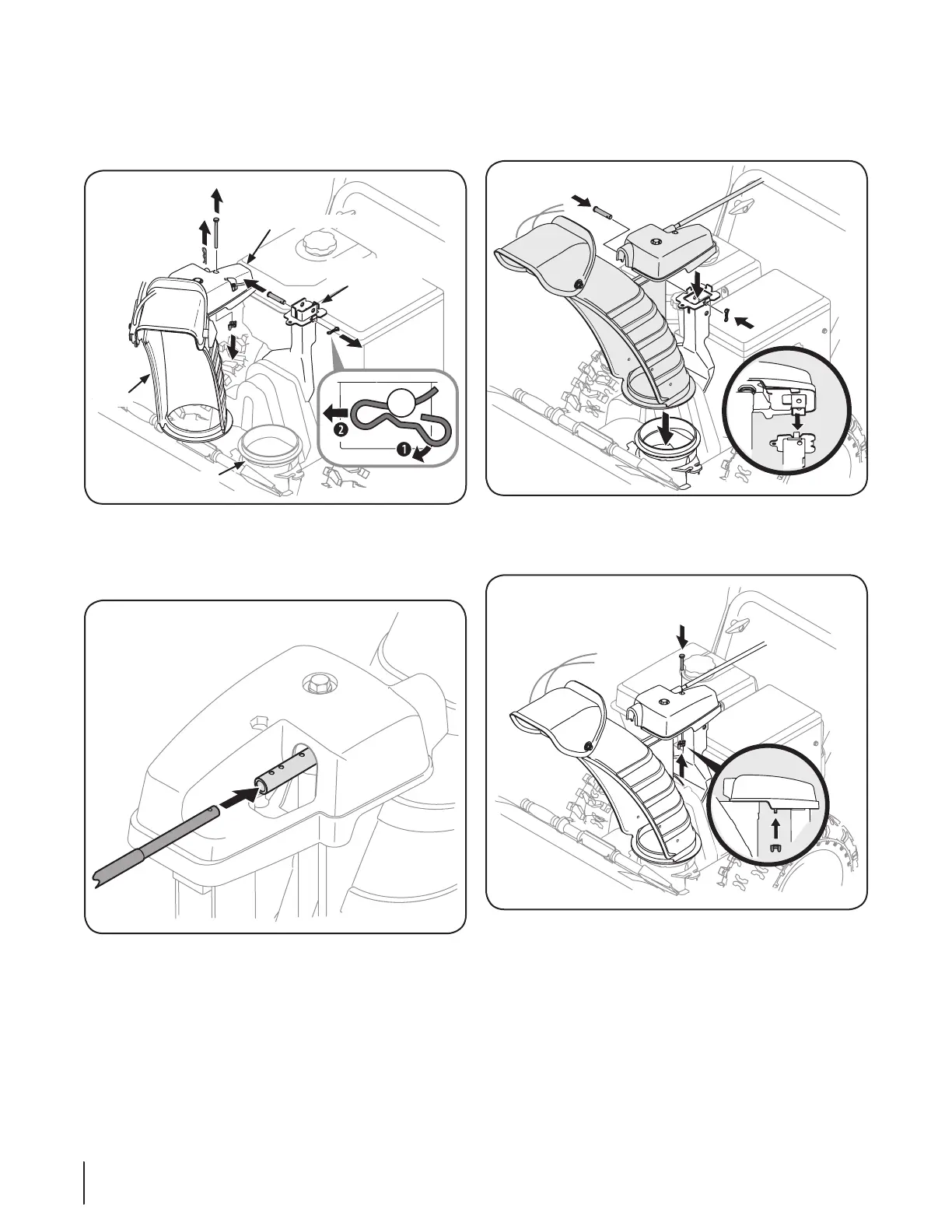

Chute Assembly
1. Remove hairpin clip, wing nut and hex screw from chute
control head and clevis pin and bow-tie cotter pin from
chute support bracket. See Figure 3-3.
Chute Control Head
Chute
Chute Support
Bracket
Chute Base
Figure 3-3
2. Insert chute control rod into chute control head. Push rod
as far into chute control head as possible, keeping the holes
in the rod pointing upward. See Figure 3-4.
Figure 3-4
3. Place chute onto chute base and ensure chute control rod
is positioned under the handle panel. Secure chute control
head to chute support bracket with clevis pin and bow-tie
cotter pin removed in step 1. See Figure 3-5.
Figure 3-5
4. Finish securing chute control head by installing hex bolt
and wing nut. See Figure 3-6.
Figure 3-6
