Assembly & Set-Up
3
7
Assembly
Remove all loose parts before assembling.

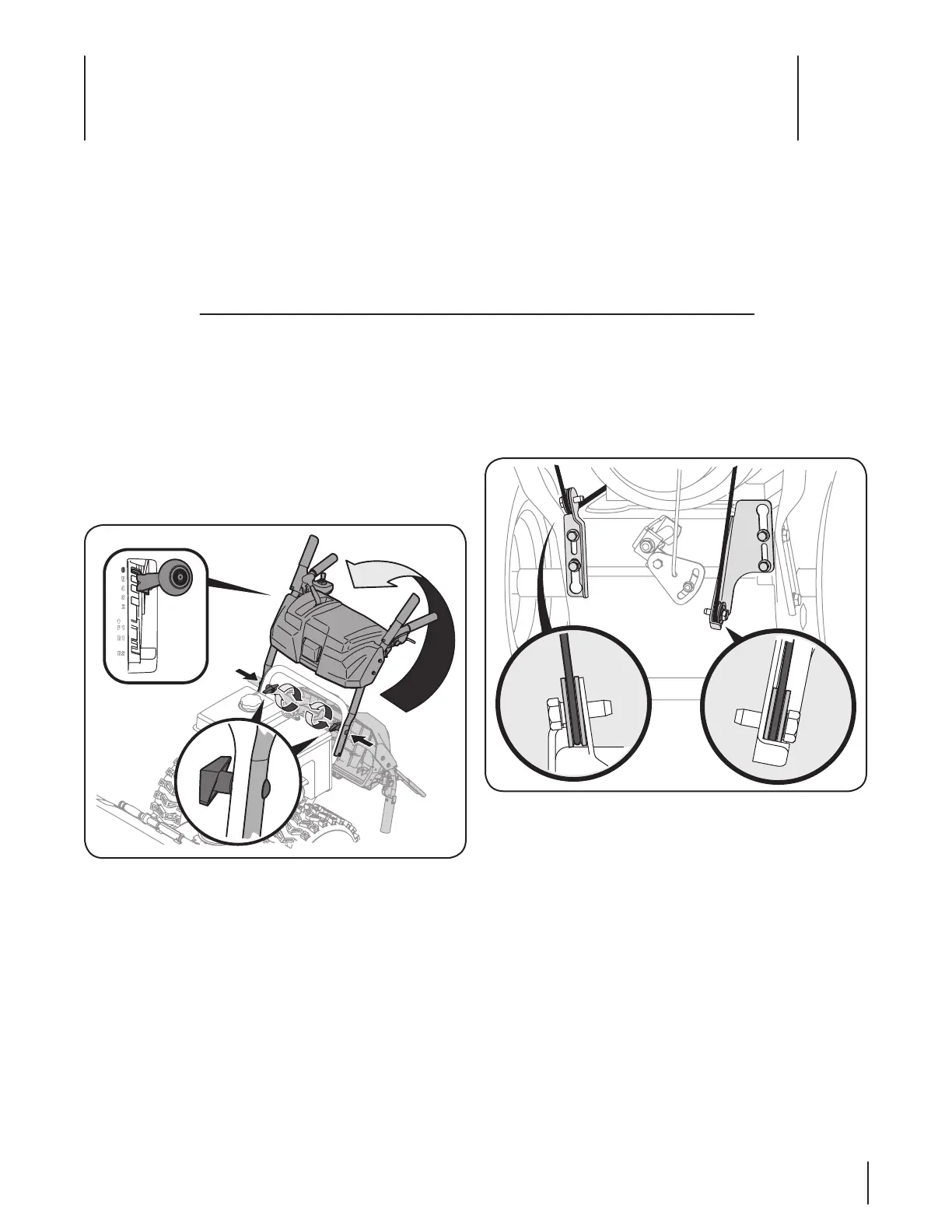

Handle Assembly
1. Place the shift lever in the Forward-6 position
2. Observe the lower rear area of the snow thrower to be sure
both cables are aligned with roller guides before pivoting
the handle upward. Pivot the handle upward. See Figure
3-1.
Figure 3-1
Contents of Carton
• One Snow Thrower • Two Replacement Auger Shear Pins • One Chute Assembly
• One Chute Control Rod • One Product Registration Card • One Engine Operator’s Manual
• One Snow Thrower Operator’s
Manual
NOTE: Make certain the cables are seated properly in the
roller guides. See Figure 3-2.
3. Secure the handle by tightening the plastic knob located
on both the left and right sides of the handle. Remove
and discard any rubber bands, if present. They are for
packaging purposes only.
Figure 3-2
To Next Page
