INSTALLATION INSTRUCTIONS
Package Contents
Tools Required
Tools Required for Installation
on Pre-drilled Doors:
• Phillips Head Screwdriver
NOTE: DO NOT USE a drill.
Tools Required for Installation
on Doors That Require Drilling:
• Drill
• Tape Measure
• Pencil
• 2-1/8” (54mm) Drill Hole Saw
• 1” (25mm) Drill Bit
• 1/16” (2mm) Drill Bit
• Chisel
• Hammer
• Phillips Head Screwdriver

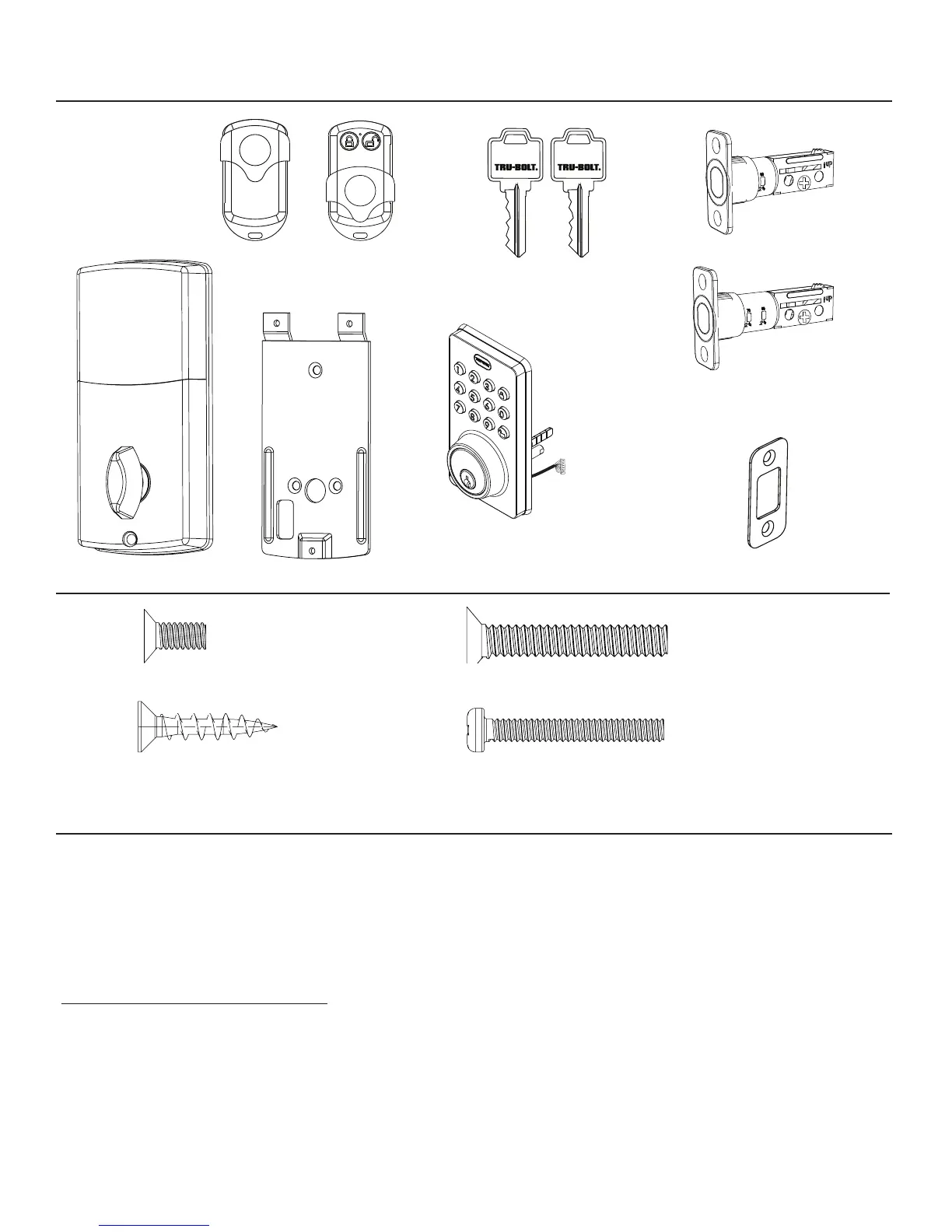

Deadbolt Strike Plate
Deadbolt Latch Set (Adjustable)
2-3/8” (60mm) to 2-3/4” (70mm)
Interior Assembly
Mounting Plate
Exterior Assembly
Entry keys (2 ea.)
Wireless Remote (1 ea.)
5/16” (8mm) Screws - 2 ea. 7/8” (22mm) Screws - 2 ea.
3/4” (19mm) Screws - 5 ea. 1” (25mm) Screw - 1 ea.
Electronic lock requires (4) High Quality
AA Alkaline batteries. When all 4 batteries
are installed in the correct position, hear 2
beeps and the keypad will illuminate blue.
DO NOT TOUCH the keypad until the keypad
stops illuminating.
Batteries (not included)
