PREPARING THE INTERIOR ASSEMBLY
6. SET THE ENTRY SWITCH FOR LEFT OR RIGHT HANDED DOOR
a. Gently move the switch to “L” for Left Handed Door (Figure 6a).
b. Gently move the Switch to “R” for Right Handed Door (Figure 6b).
7. SET THE INTERIOR KNOB POSITION FOR LEFT OR RIGHT HAND HINGED DOORS
a. The Interior Knob goes in the Horizontal position for Left Handed Doors (Figure 7a).
b. The Interior Knob goes in the Vertical position for Right Handed Doors (Figure 7b).

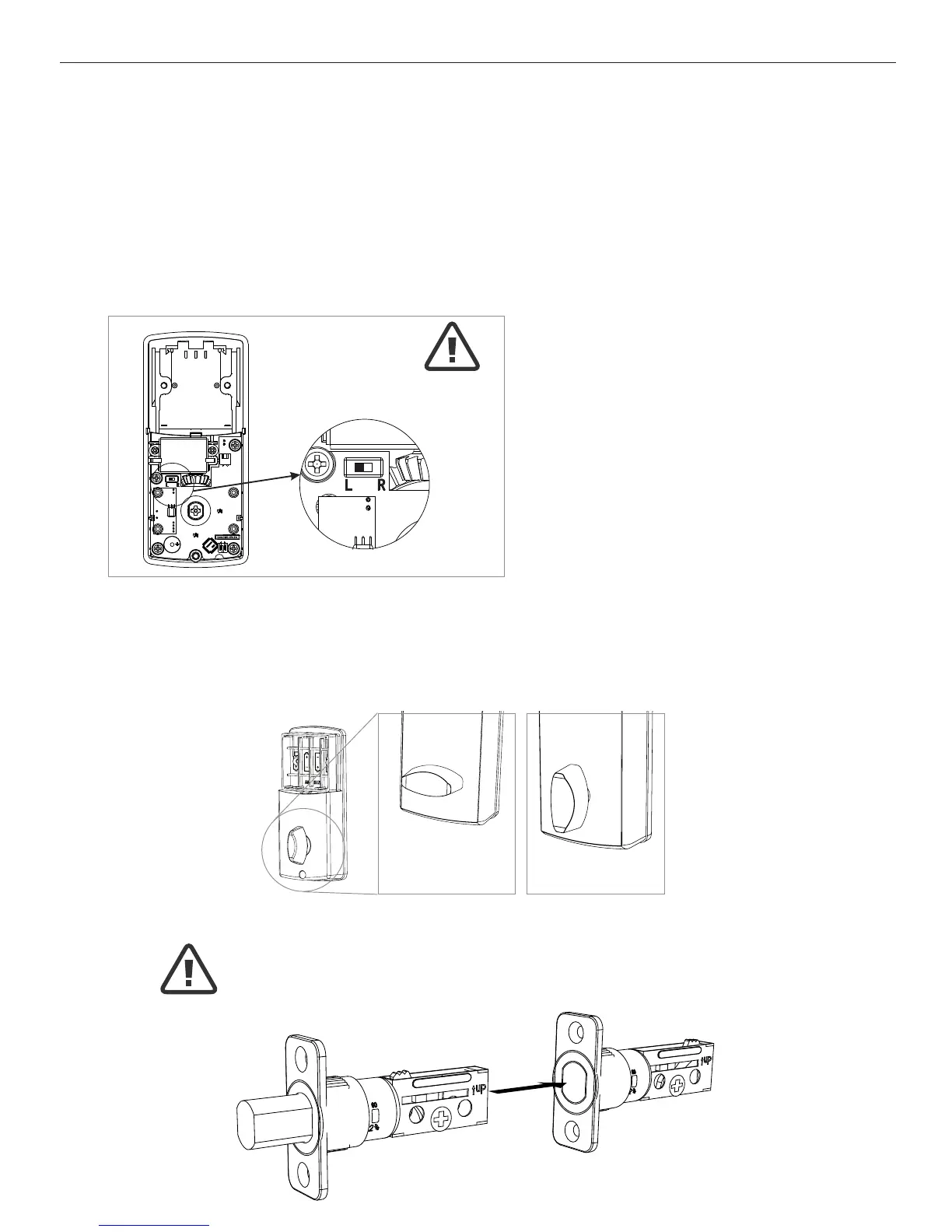

Entry Switch (Left or Right)
Figure 6a-b
NOTE: Make sure deadbolt Latch is retracted
5. UNPACK THE INTERIOR ASSEMBLY
a. Remove the battery cover by sliding the cover upward.
b. Locate the screw holding the Mounting Plate to the Interior Assembly. Remove the
screw to release the Mounting Plate from the Interior Assembly.
Right Handed Door
(Vertical)
Left Handed Door
(Horizontal)
Figure 7a Figure 7b
