Rear castor MARS 2.01/2.02
132 Service Manual MARS 2 1 435 274 - 09/07
7.8 Rear castor MARS 2.01/2.02
1. Prepare the operating table (section 2.3 “Operating table” page 11).
2. Disconnect the power supply cable from the mains supply.
3. Switch off the operating table (remote control).
4.
Turn the operating table on the side with a membrane keyboard and lay down safely
on an even surface.
5. Set the foot lever TRAVEL MODE in the directional travel position (see FOOT LEVER
OPERATION pictogram!).
6. Remove the cap from the running gear (behind, on the head end) and store safely.
7. Take note of where the Bowden cables have been laid!
Unscrew both rear castors [2] (4 machine screws [1] in each case).
8. Unscrew both axle holders [3] (2 machine screws [4] in each case) and store safely.
9. Remove the lock washer [5] at the end of the drive axle [7] (inside) and on the side of
the defective castor.
10. Pull out the shaft [6] (brake Bowden cable attached to it) and remove the rear defective
castor [2]. Watch out for the bushes.
11. Insert the new rear castor and assemble with the shaft [6] (brake Bowden cable
attached to it) to the drive axle [7] (lock washer [5]). Watch out for the bushes.
CAUTION
Risk of injury from the capacitor voltage.
All LEDs on the membrane keyboard must be out.
CAUTION
Risk of injuries!
Turn the operating table with at least 2 people!

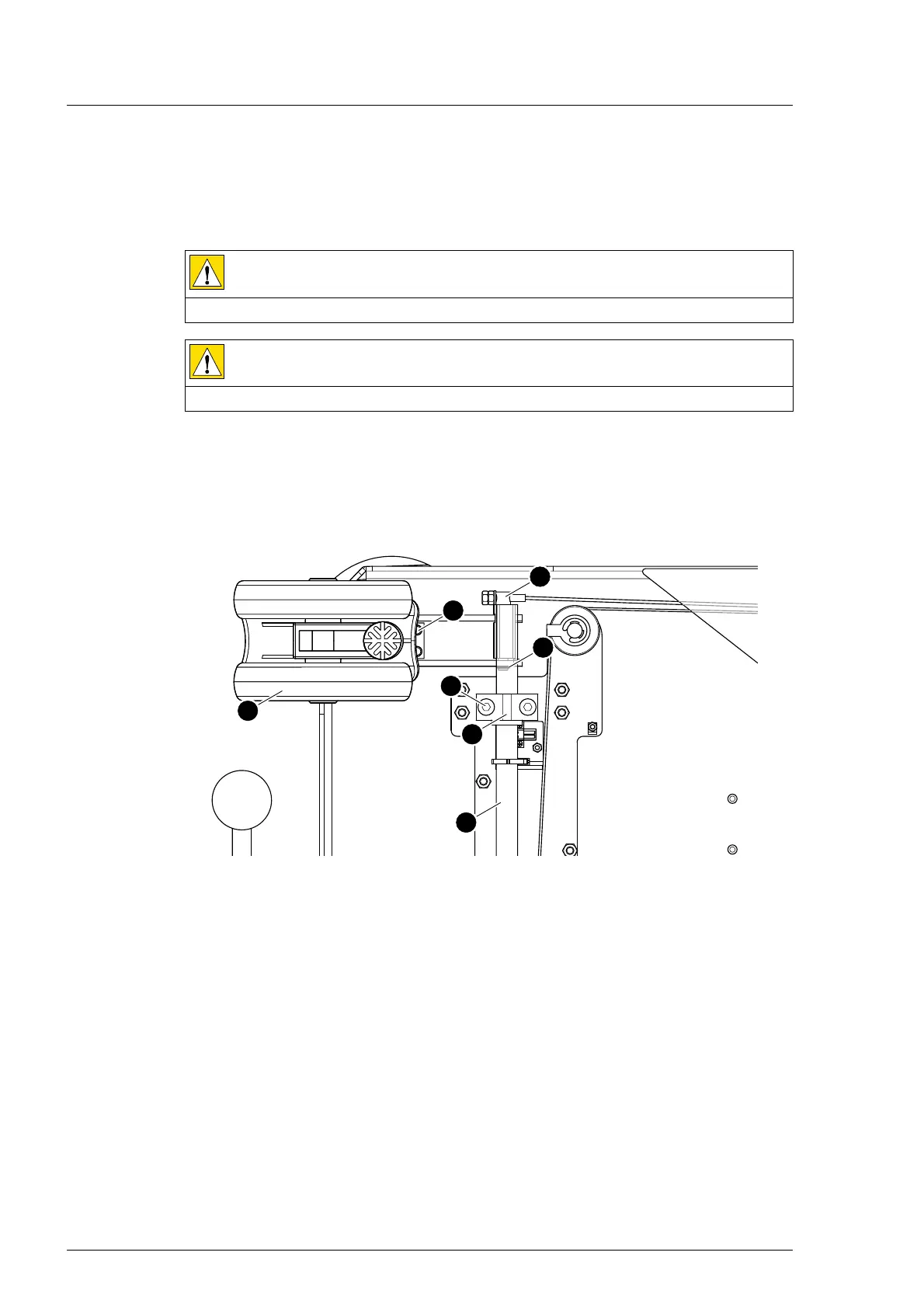

Figure 79 Rear castor at the head end with brake MARS 2.01/2.02
1 M8x20 machine screw 5 Locking ring 5
2Rear castor 6Spindle
3 Axle holder (shaft holder) 7 Drive axle (shaft)
4 M8x20 machine screw
4
1
2
3
6
7
5
