Longitudinal displacement (LD) microbutton (not MARS 2.01)
Service Manual MARS 2 1 435 274 - 09/07 93
5.14 Longitudinal displacement (LD) microbutton (not MARS 2.01)
1. Prepare the operating table (see section 2.3 “Operating table” page 11).
2. Raise the column to its highest position.
3. Move the tabletop carefully up to the head end stop.
4. Remove the power from the operating table (see section 4.1 “Remove the power from
the operating table” page 15).
5. Pull pad [1] off the seat section, and put it down in a safe place.
6. Unscrew the plastic plate [2] from the seat section (4 ball-heads [3]), and put them
down in a safe place.
7.
Remove the head cover [4] (4 fillister-head screws), and put them down in a safe place.

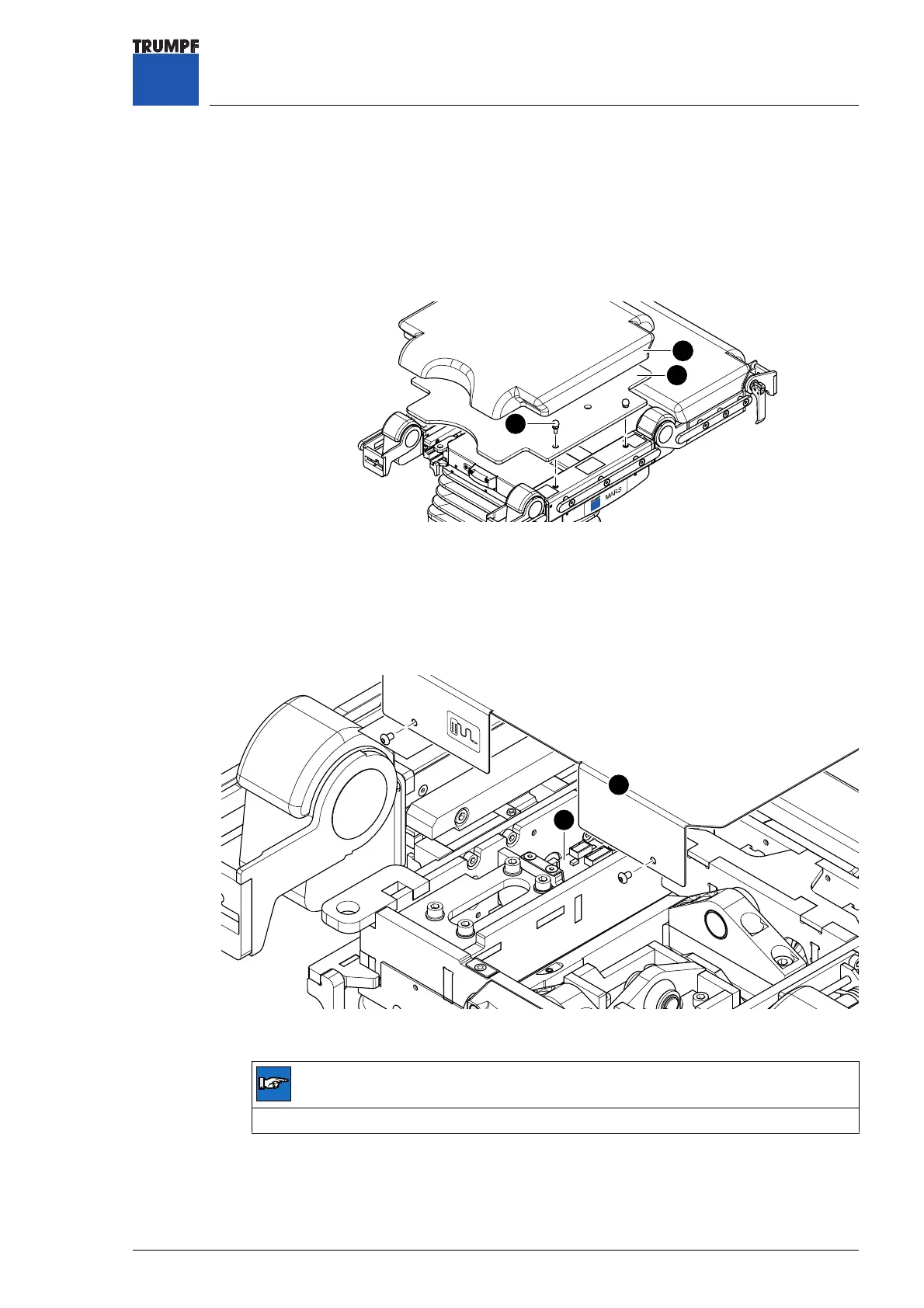

Figure 53 Pad plate
1 Pad 3 M8 ball-head
2 Plastic plate
3
1
2
Figure 54 LD microbutton
4 Head cover 5 Distributor board
5
4
NOTE
Do not let any parts fall into the column.
