Trumpf TRUPUNCH 5000 User Manual

B380EN06.DOC 5BMechanical components 6-67
Vacuum cups on the SheetMaster
(see section 5.2, p. 6-65)
Every 8 ope
rating hours, or even more frequently when machining
highly oxidized sheets.
1. Switch off the machine properly, switch off the MAIN SWITCH,
lock it and remove the key.
2. Clean the vacuum cups with a clean cloth.
3. Check the vacuum cups and hoses and replace them if
necessary.
As needed.
1
2
3
4
5
6
7
8
1 Vacuum cup 5 Bearing bushing
2 Nipple 6 Fixing nut
3 Compression spring 7 Pneumatic connection
4 Supporting pin 8 Filter

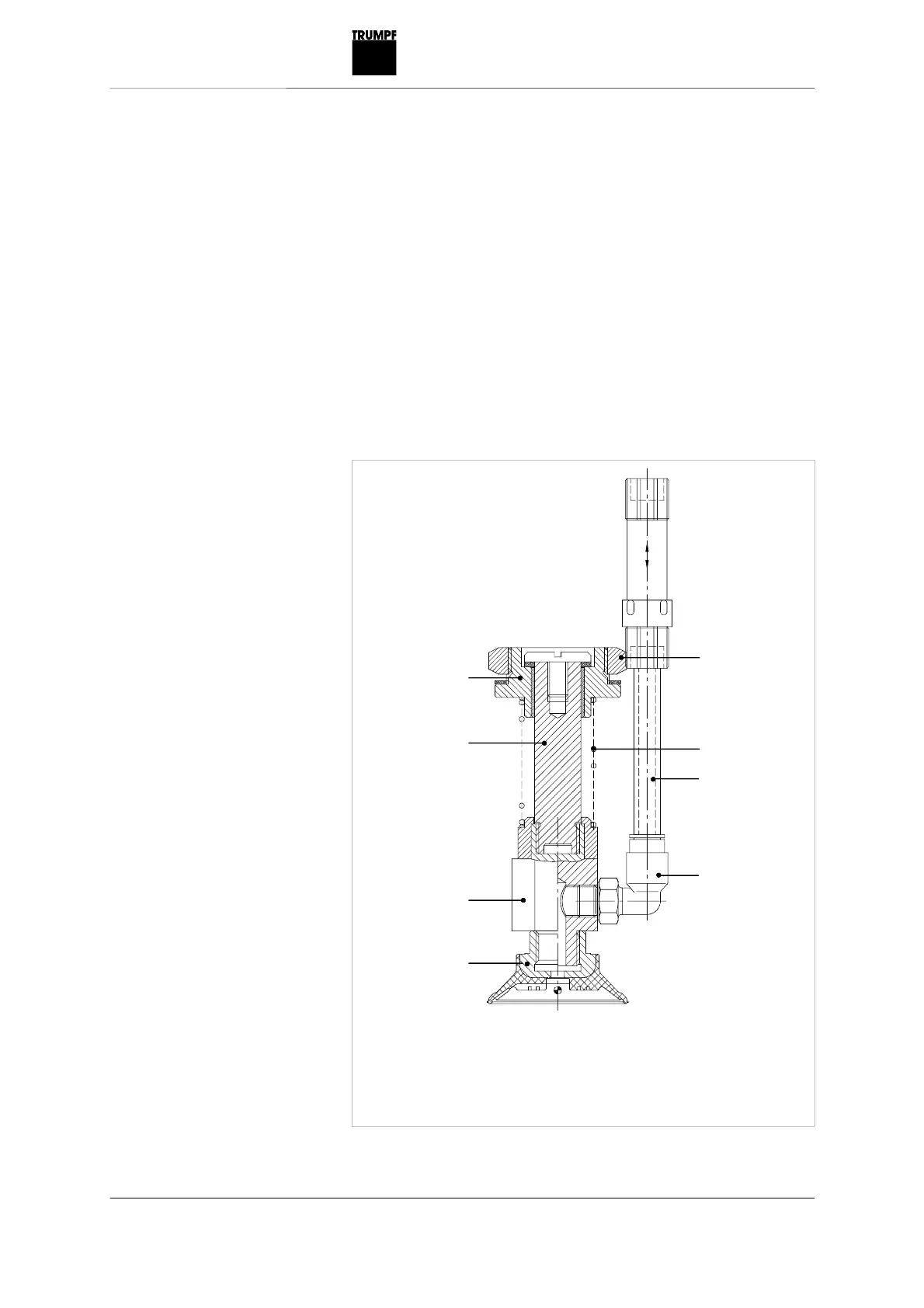

Design of the ∅ 45 mm carrier cups
Clean the vacuum cups
Replacing vacuum cup
∅ 45 mm and ∅ 125 mm
Fig. 27650
